Maintenance 3. Covers
S5 Rev.5 91

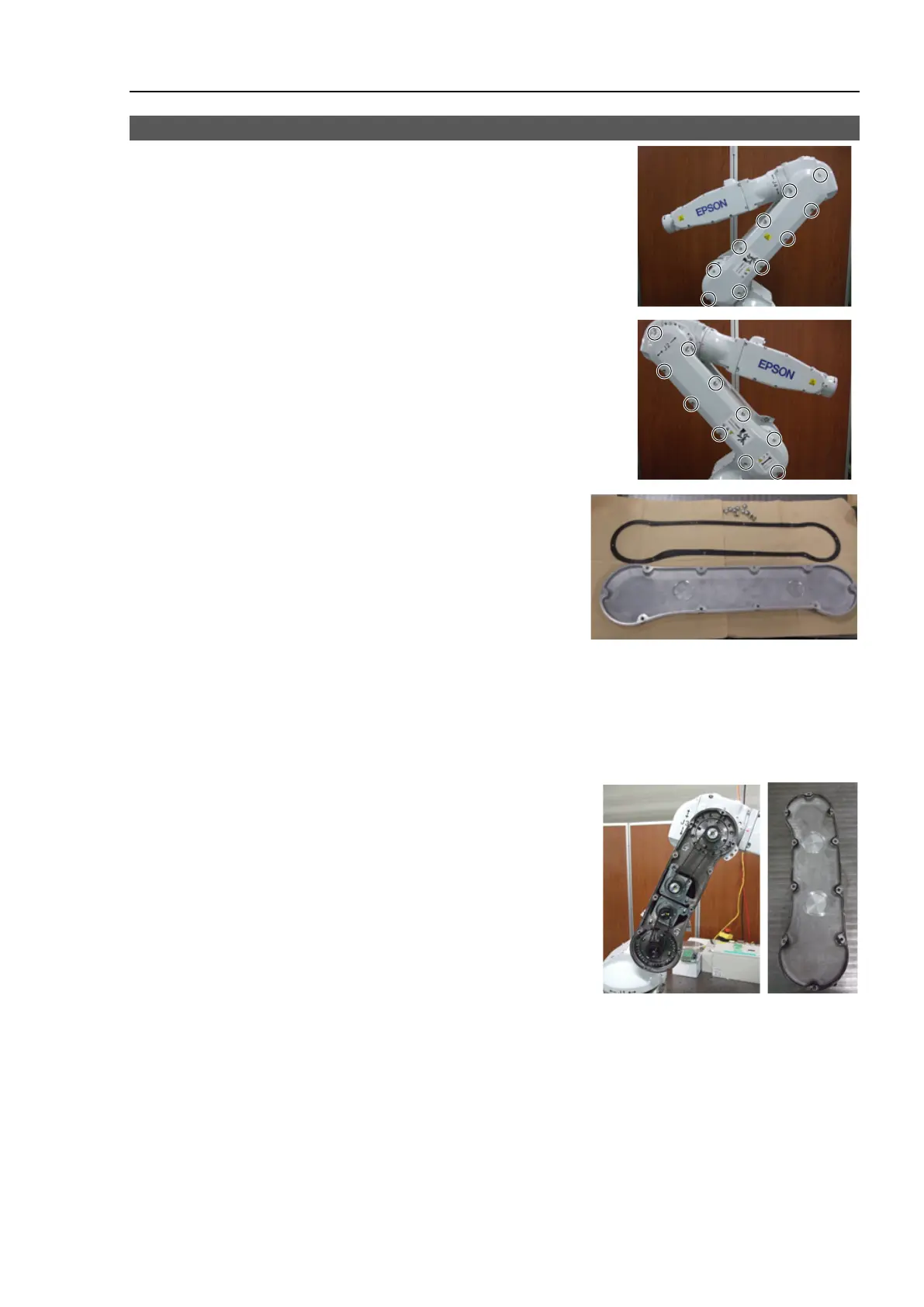

3.2 Arm #2 Cover
emove the bolts and then remove the Arm #2 Cover.
Tool : Hexagonal wrench (width across flats: 4 mm)
Button bolt : 20-M5×10 (with washer)
Tightening torque : 2.8 N·m (0.29 kg·m)
over on each side. Remove the
cover(s) as required in maintena
nce work.
-model:
asket is attached.
S5-A701C* : R13B031271
S5-A901C* : R13B031272
Removal
Remove the gasket with the cover.
Installation
Attach the gasket between the cover and manipulator.
You can’t reuse the gasket. Be sure to use a new gasket.
-model:
Liquid gasket (R13B031201) is applied.
Removal
Remove caked-on liquid gasket residue with
scraper or similar tool.
Installation
Apply liquid gasket on the contact surfaces of the cover and manipulator.
Wipe off any excess liquid gasket with a wiping cloth treated with alcohol.
