Epson ProSix S5 Series User Manual

Maintenance 2. Periodic Inspection
S5 Rev.5 85

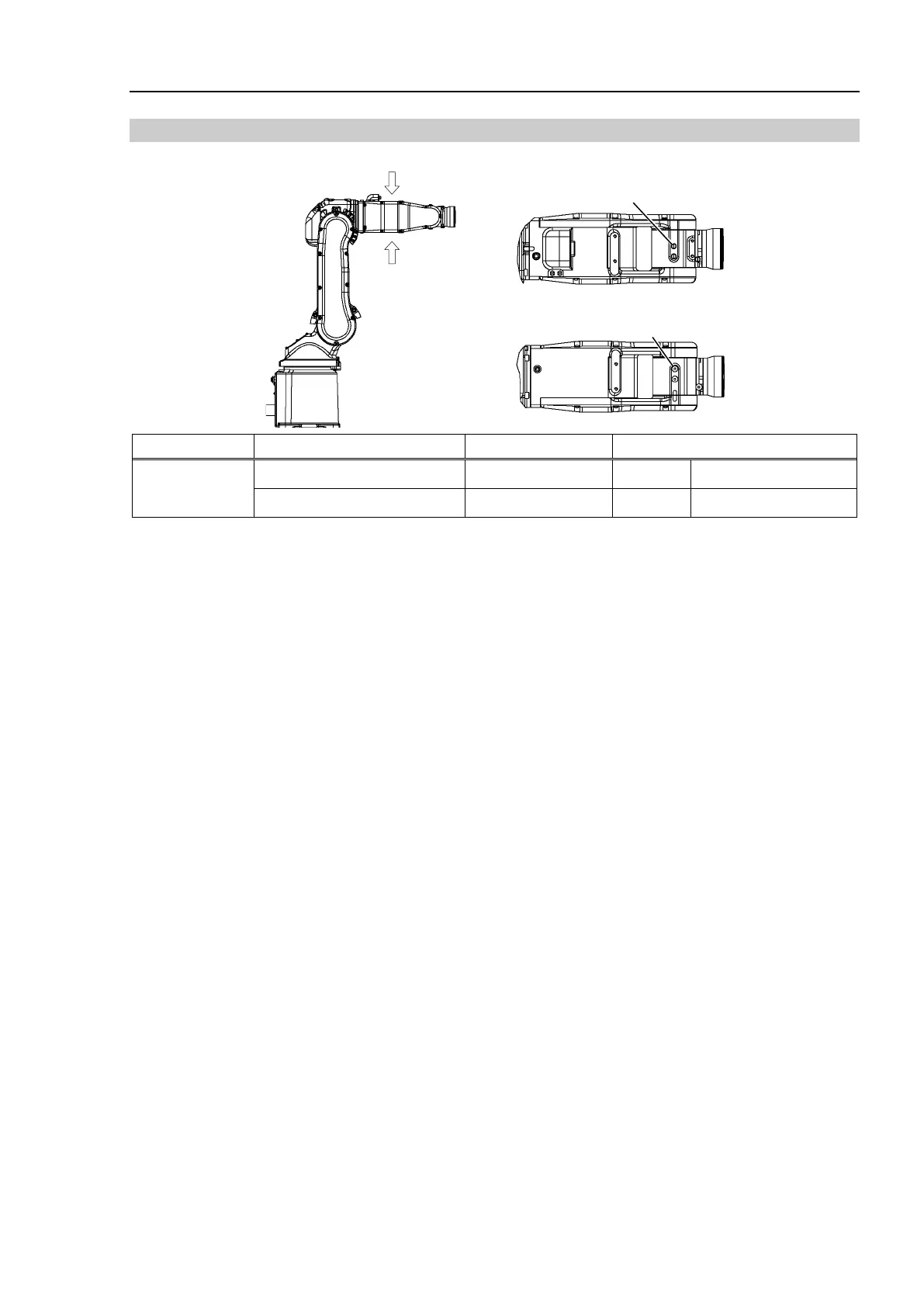

2.3.6 Joint #5 Reduction Gear Unit
A
B
A
B
Air Vent (Plug M5)
Grease Inlet (Plug M5)
Name
Quantity
Note
Maintenance
Parts
Grease for reduction gear 5 g SK-1A R13ZA00330100
Liquid gasket
Proper quantity
1206C
R13B031201
(1)
Remove the plug from the air vent.
Plug: LP-M5
Be sure to remove the plug from the air vent. When grease is
being added
while
the
plug is in the air vent, the internal pressure increases
. Increasing internal
pressure may cause malfunction of the robot system.
(2)
Remove the plug from the grease inlet.
Plug: LP-M5
(3)
Attach a grease nipple to the grease inlet.
(The grease nip
ple is supplied with the Manipulator.)
Grease nipple: M5
(4)
Pump
grease into the reduction gear unit from the grease inlet using a grease gun.
Grease : Grease for reduction gear (SK-1A)
Quantity : 5 g
(5)
Operate the Manipulator at low power mode spee
d for one hour to run-in the grease.
(6)
Wipe off excess grease exhausted from the air vent with wiping cloth.
(7)
Attach the plug to the air vent.
Plug: LP-M5 (Apply liquid gasket.)
(8)
Remove the grease nipple from the grease inlet.
Grease nipple: M5
(9)
Attach the bolt to the grease inlet.
Plug: LP-M5 (Apply liquid gasket.)

NOTE
