Maintenance 3. Covers
S5 Rev.5

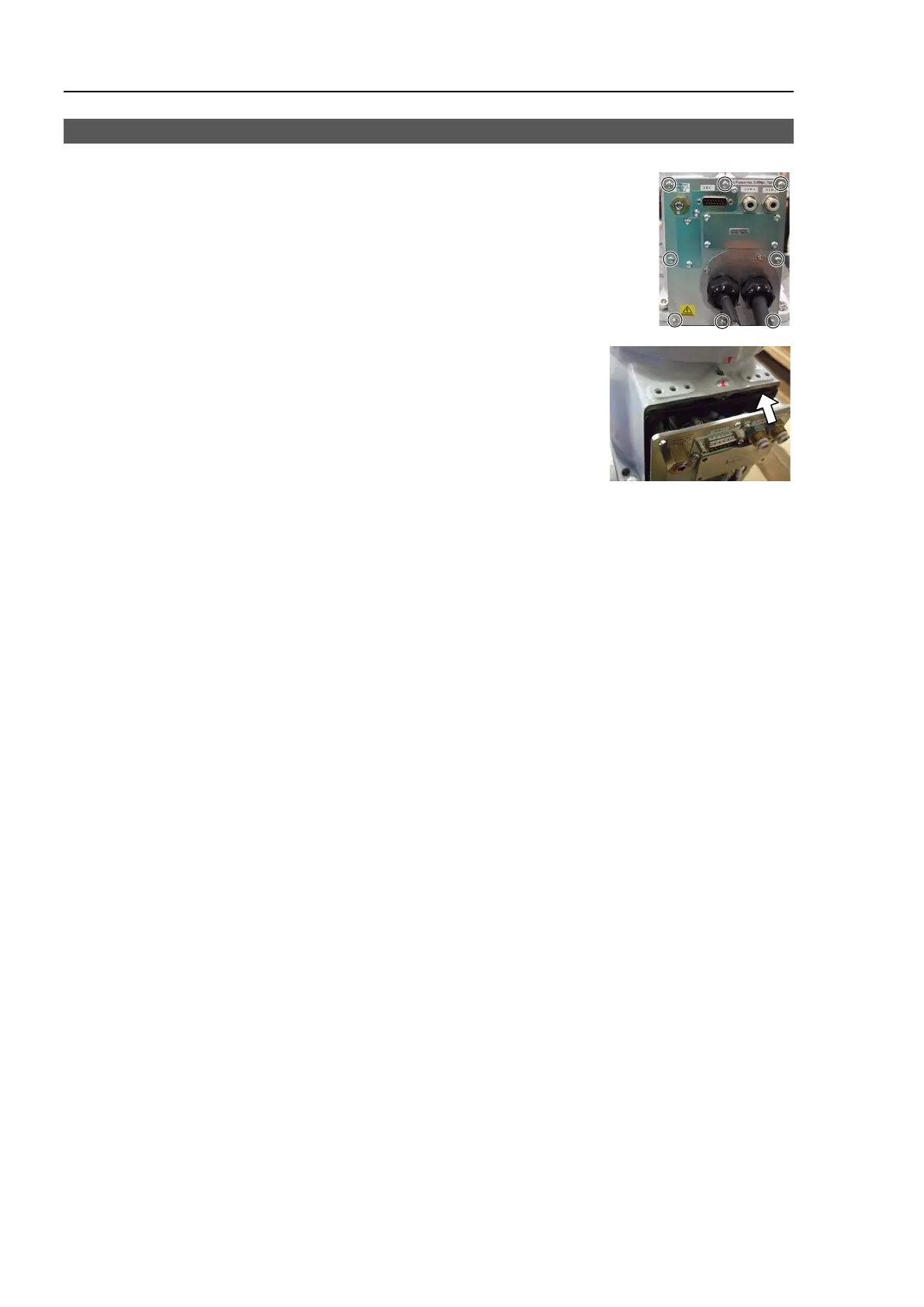

3.5 Connector Plate
Remove the bolts, and then remove the Connector Plate.
Tool: Hexagonal wrench (width across flats: 3 mm)
Button head bolts: 8-M4×10 (with a washer)
Tightening torque: 1.4 N·m (0.14 kg·m)
There is a gasket (R13B031269)
between the cover and the
body.
Removal
Remove the gasket together with the cover.
Installation
Install the gasket between the cover and the body.
Do not reuse the gasket. Replace it with a new one.
Liquid gasket (R13B031201) is applied.
Removal
Scrape off the old liquid gasket with a scraper or a similar tool.
Installation
Apply liquid gasket to the contacting face of the cover and the body.
Wipe off the excess gasket using a wiping cloth with alcohol.
