Setup & Operation 3. Environment and Installation
30 S5 Rev.5
3.2 Unpacking, Transportation, and Relocation
Using a cart or similar equipment, transport the Manipulator in the same conditions as it
was delivered. Observe the following when unpacking the Manipulator.
THE INSTALLATION SHALL BE MADE BY QUALIFIED INSTALLATION
PERSONNEL AND SHOULD CONFORM TO ALL NATIONAL AND LOCAL
CODES.
WARNING
■
Only authorized personnel
should perform sling work and operate a crane or
these operations are performed by unauthorized personnel, it is
hazardous and may result in serious bodily injury and/or severe
equipment damage to the robot system.
■
Stabilize the Manipulator with your hands when hoist
ing it. Unstable hoisting is
extremely hazardous and may results in serious bodily injury and/or
severe
equipment damage to the robot system as the fall of the Manipulator.
CAUTION
■
When removing the anchor bolts, support the Manipulator to
prevent falling.
Removing the anchor bolts without supporting the Manipulator may get hands,
fingers, or feet caught as the Manipulator will fall.
■
Do not remove the wire tie securing the arm
until you finish the installation.
You may get your hands caught in the Manipulator when the wire tie is removed
before completing the
installation.
■
carry the Manipulator, have at least 3 people to work on it and secure the
Manipulator to the delivery

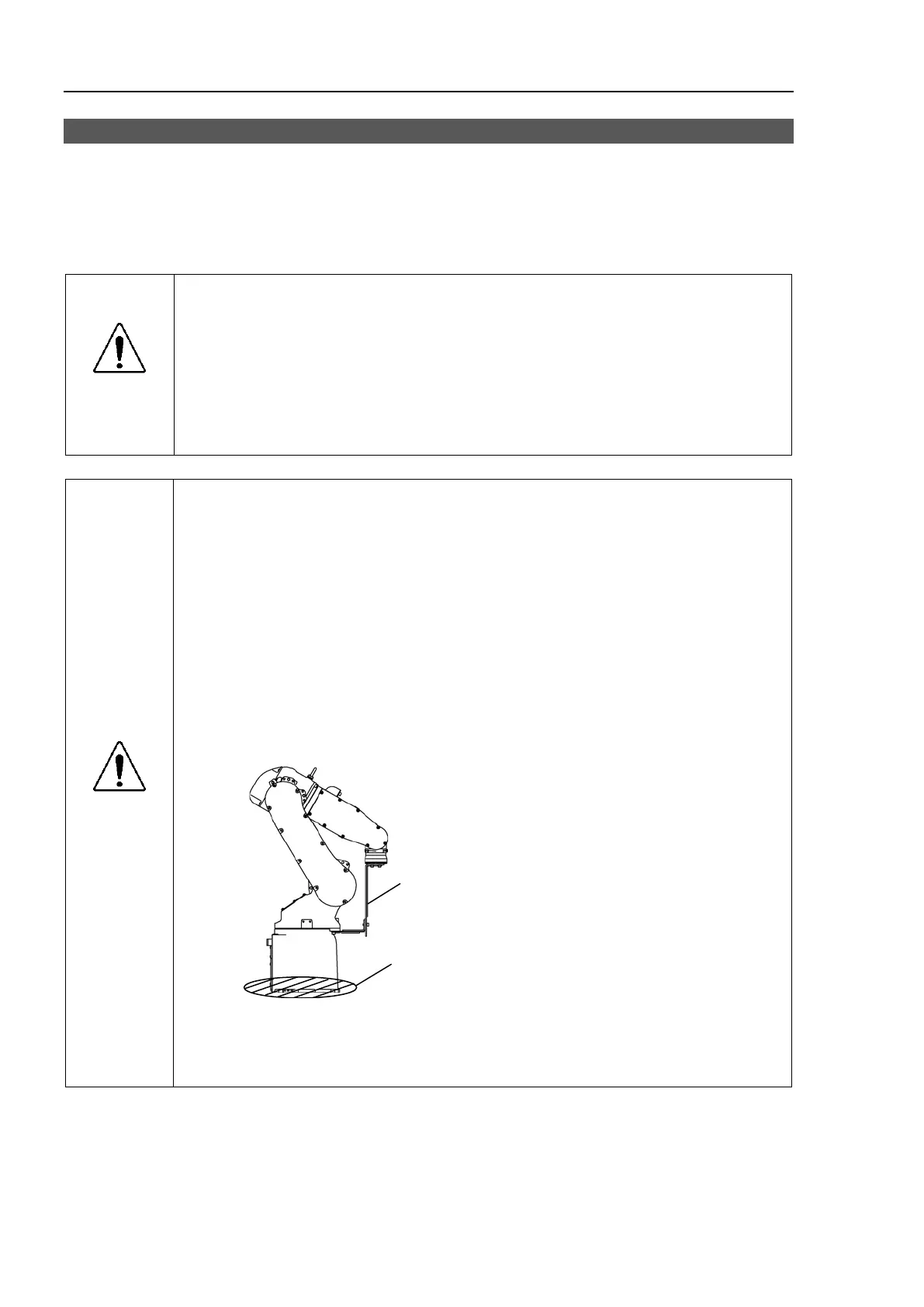

equipment or hold it by hand. Do not hold the bottom
of the base (the screened parts in the figure). Holding these parts by hand is
extremely hazardous and may cause your hands and fingers to be caught or
cut
grounding electrode.
S5-A701**
Approx. 38 kg (Manipulator weight: 36 kg (80 lb.))
S5-A901**
Approx. 40 kg (Manipulator weight: 38 kg (84 lb.))
DO NOT hold
the bottom of the
base by hand.
■
Avoid excessive vibration or shock during
Manipulator transporting. Excessive
vibration or shock may cause equipment damage to and/or malfunction of the
Manipulator.
