Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 119
Confidential
3.4.5 Carriage Mechanism/Ink System Mechanism
3.4.5.1 CR Cover
1. Unlock the CR Unit. (p82)
2. Remove the Left Rear Cover. (p94)
3. Remove the Left Upper Cover. (p95)
4. Move the CR Unit to the left end.
5. Remove the three screws, and remove the CR Cover.
A) Silver M3x8 P-tite screw: 3 pcs

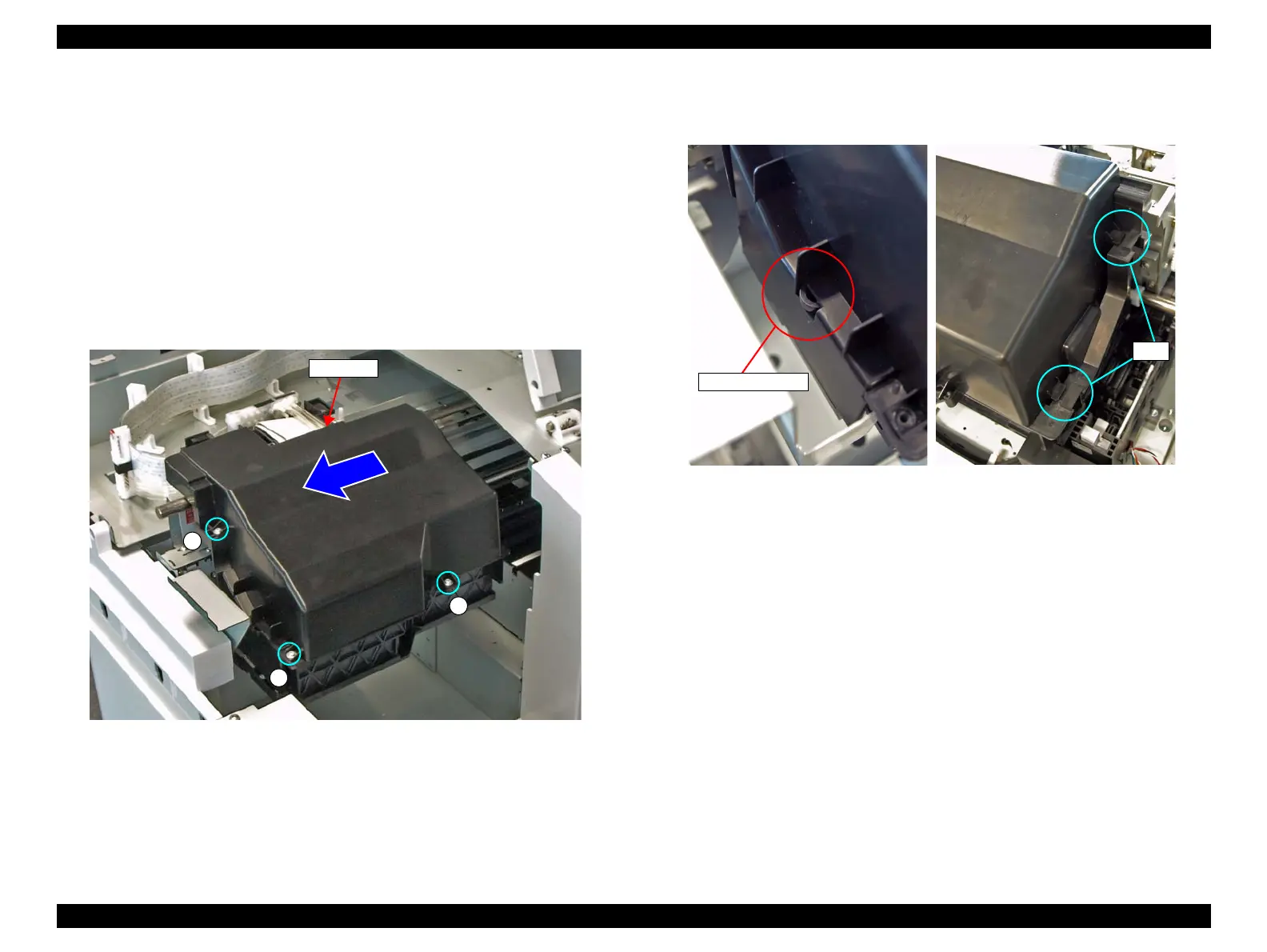

Figure 3-63. CR Cover Fixing Screws
6. Release the portion of the CR Cover engaged with the CR Unit from the unit,
disengage the two tabs and remove the CR Cover.
Figure 3-64. Removing the CR Cover
A
A
A
CR Cover
Tabs
Engaged portion
