SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 171
Confidential
3.4.7 Heater Mechanism
3.4.7.1 Pre Heater
1. Remove the two screws that secure the Pre Heater, and hang the Pre Heater Assy
on the main body as shown in Figure 3-132.
A) Silver M3x8 S-tite screw with built-in washer: 2 pcs
2. Disconnect the cables from the three relay connectors.

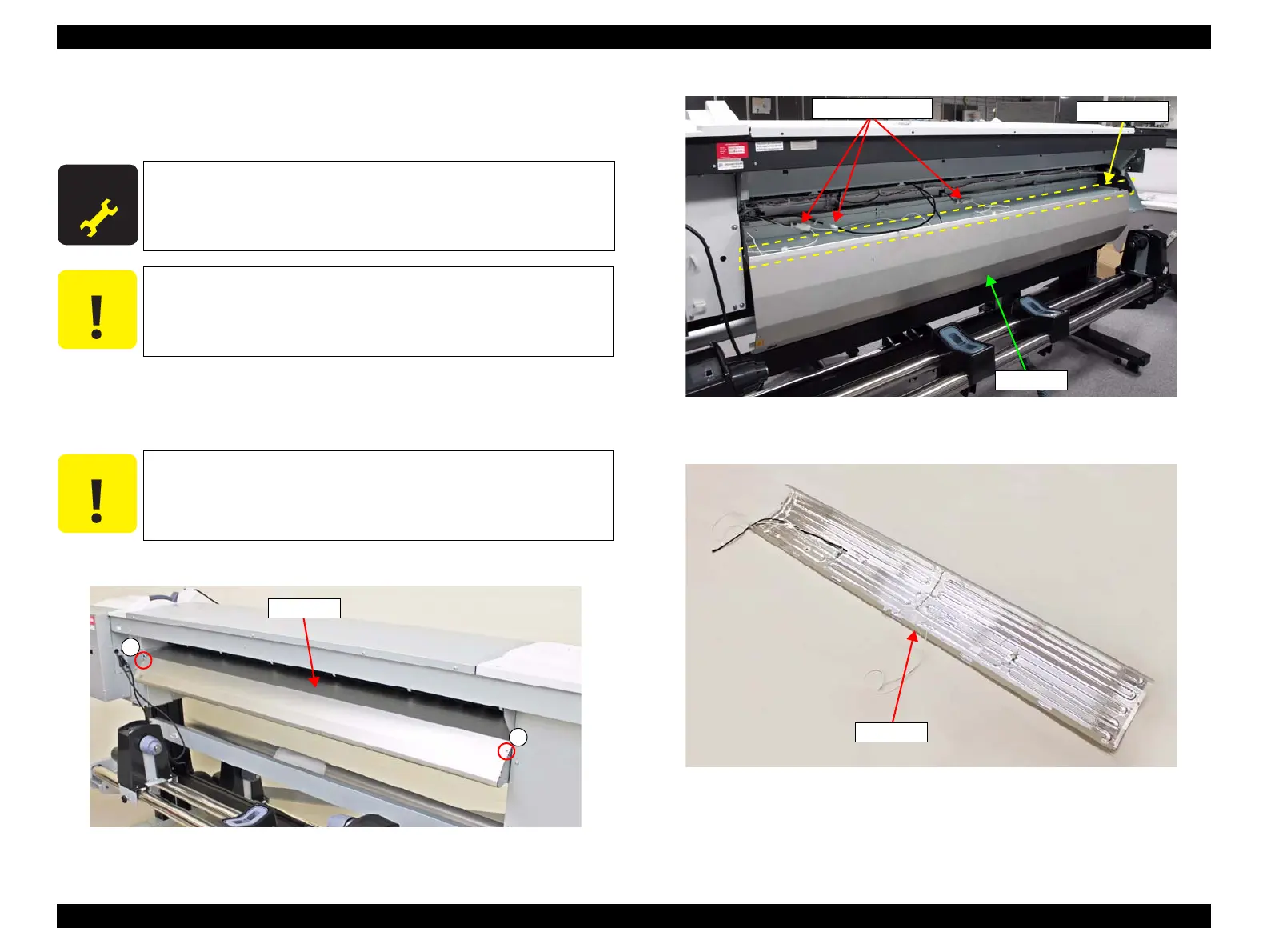

Figure 3-131. Pre Heater Fixing Screws
Figure 3-132. Removing the Pre Heater
Figure 3-133. Pre Heater
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
In the next step, remove the screws while holding the Pre Heater
with your hand to prevent it from falling.
As the Pre Heater is put on the main body with the cables placed
between the assy and main body, be careful not to press the assy
and cause the cables getting damaged.
Relay Connectors
Hang the Assy
Pre Heater
To Next Page
