4.15.6 Panel LCD Operation Check
EXECUTION MODE
Serviceman Mode
PROCEDURE
1. Turn the printer ON in the Serviceman Mode.
Turn the power ON while pressing [Menu] + [Back] + [OK].
2. Select SELF TESTING Mecha Adjustment LCD RGB Check.
3. Select one of the three colors at a time and press [Right].
The LCD is filled with solid red, green or blue color. Check if there is no missing
dots. Check the colors in the order of red, green, and then blue.
4. To select the next color, press [Pause/Cancel] or [Left].

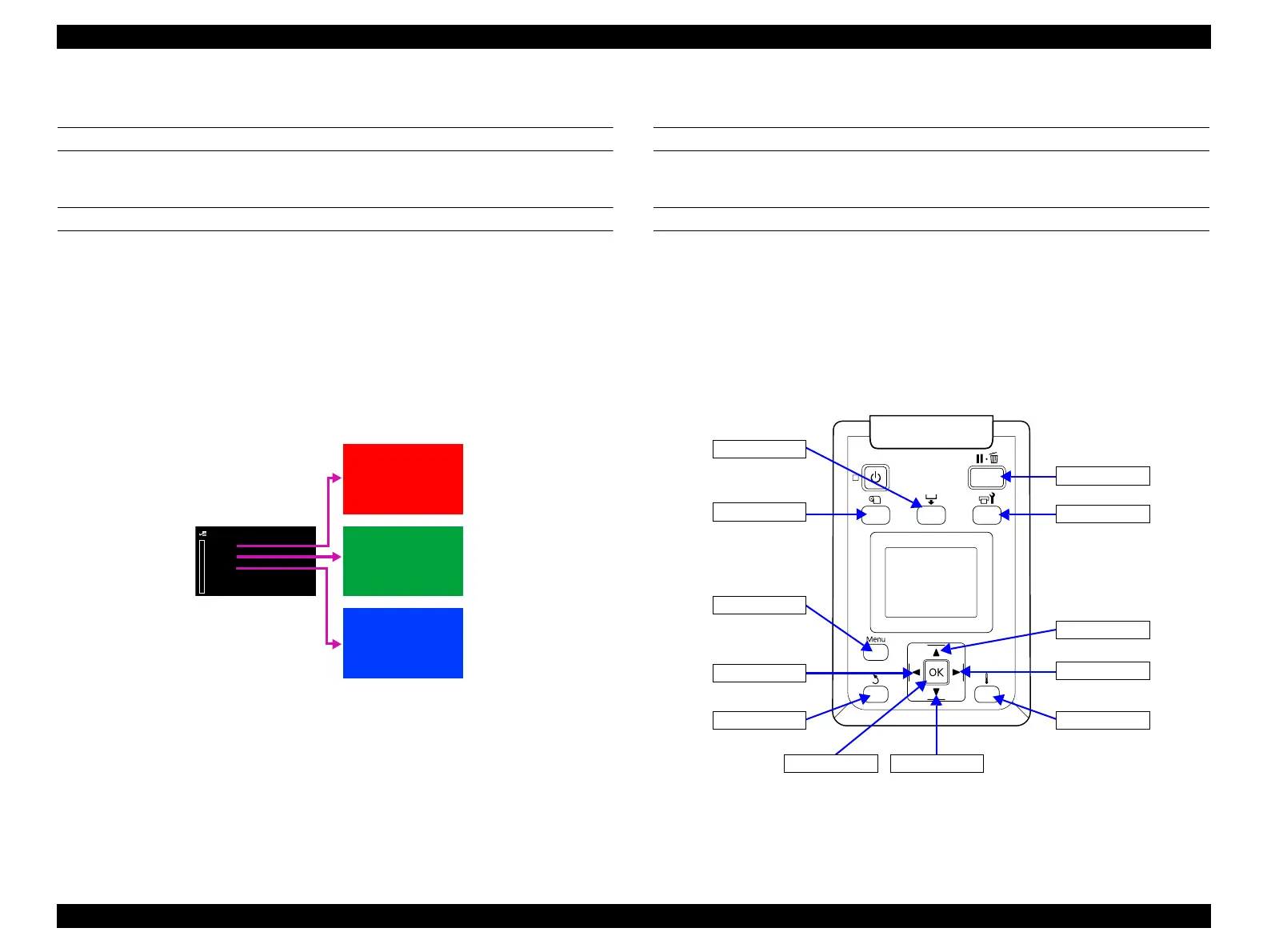

Figure 4-67. Color LCD display check
4.15.7 Panel Buttons Operation Check
EXECUTION MODE
Serviceman Mode
PROCEDURE
1. Turn the printer ON in the Serviceman Mode.
Turn the power ON while pressing [Menu] + [Back] + [OK].
2. Select SELF TESTING Mecha Adjustment Panel Check.
3. Press the button you want to check the function, and check if the button name you
pressed matches the name displayed on the panel.
Figure 4-68. Buttons and Their Names displayed on the Panel
LCD RGB Check
Red
Green
Blue
Pause
DOWN
MENU
LEFT
BACK Heater
RIGHT
OK
Paper Settings
Paper Feed
Maintenance
UP
