Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 158
Confidential
3.4.6 Paper Feed Mechanism
3.4.6.1 Media Loading Lever
1. Move the Media Loading Lever to the front side, and set it to the “Hold” position.
2. Remove the two screws, and remove the Media Loading Lever.
A) Silver M4x8 S-tite screw: 2 pcs

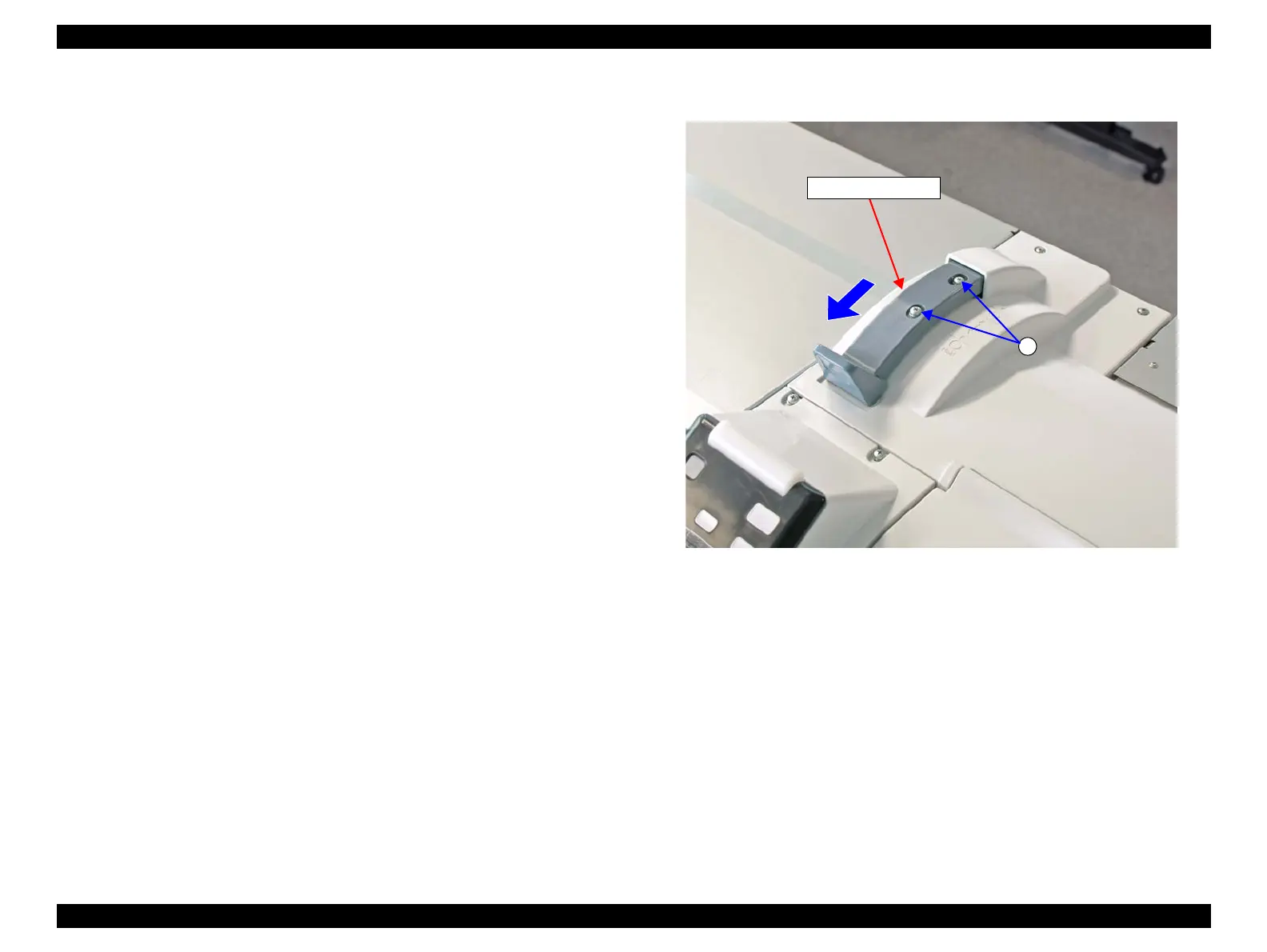

Figure 3-114. Removing the Media Loading Lever
A
Media Loading Lever
