3.4.9 Reel Unit
3.4.9.1 Reel Unit
1. Remove the seven screws, and remove the Reel Unit.
A) Special screw: 7 pcs

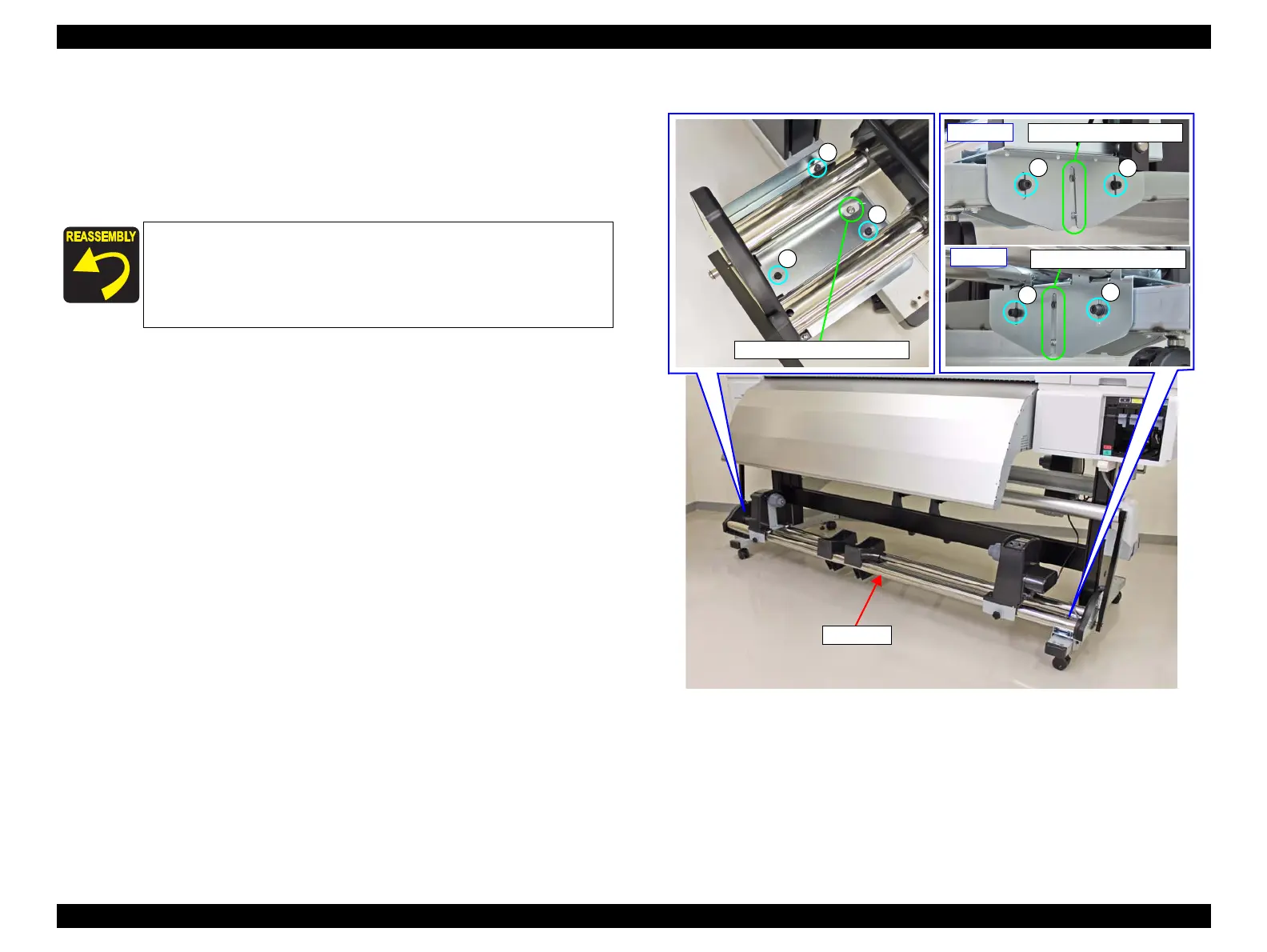

Figure 3-150. Removing the Reel Unit
When installing the Reel Unit, confirm the following.
 On the left side of the Reel Unit, insert the dowel of the frame
into the positioning hole on the Reel Unit.
 On the right side of the Reel Unit, insert the dowels of the frame
into the positioning grooves of the Reel Unit.
A
A
A
Positioning hole and dowel
A
A
- Inside -
Dowel and positioning groove
A
A
- Outside -
Dowel and positioning groove
Reel Unit
