SC-S30600 Series Revision B
MAINTENANCE Lubrication 288
Confidential
5.6 Lubrication
LUBRICATION
This section describes necessary lubrication to maintain the functions and performance
of this printer. Make sure to properly lubricate the parts/units specified in this section
as necessary when replacing or maintaining them.
LUBRICATION POINTS LIST
[Lubrication 1]
Make sure to perform the lubrication following the specified
lubrication points, lubricants, and amount. Otherwise, the
printer may not operate normally.
When lubricating the originally installed parts, first wipe off
the old lubricant completely.
Lubrication
No.
Corresponding Part Name of Lubricant Lubrication Tool Reference
1
OIL PAD HOLDER
(RIGHT/LEFT)
Part name: G-84
Part code: 1516265
2 mm injector p.288
Part name: O-17
Part code: 1521154
2 CR UNIT
Part name: G-84
Part code: 1516265
2 mm injector p.289
3
ROLL PAPER
HOLDER
(RIGHT/LEFT)
Part name: G-81
Part code: 1574337
Flux dispenser p.289

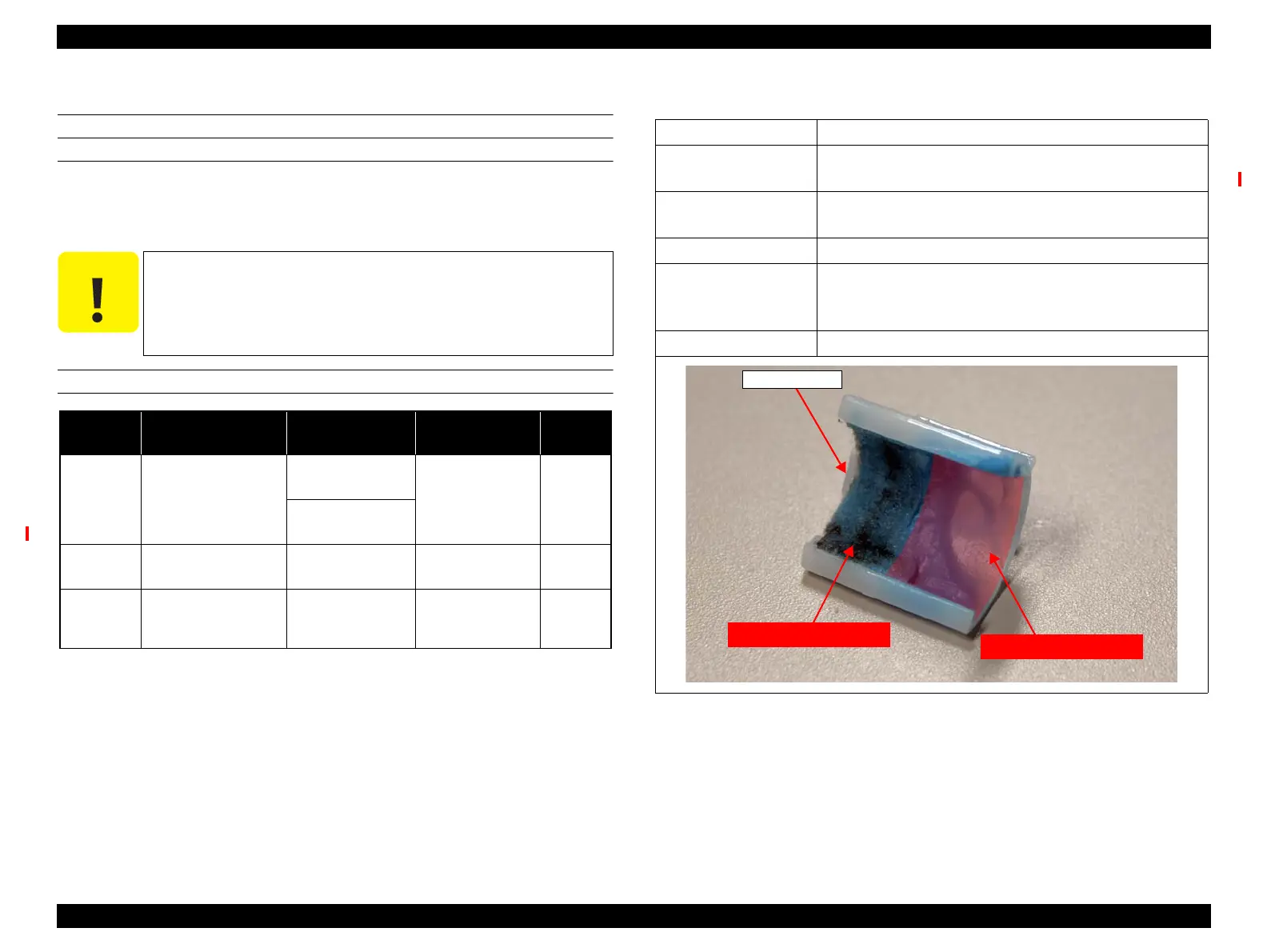

Part Name Oil pad holder (Right/Left)
Lubricants (Part Code)
1. G-84 (1516265)
2. O-17 (1521154)
Amount
1. 0.6 cc
2. Oil only: 0.09 - 0.11g, Pad included: 0.11 - 0.13g
Lubrication Tool 2 mm injector
Lubrication Manner
Take out the Oil pad holder. (p154)
1. Apply the lubrication with an injector.
2. Soak the oil pad with oil.
Note Be careful not to apply lubricant beyond the specified point.
Lubrication Point 1
Oil Pad Holder
Lubrication Point 2
To Next Page
