Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
ADJUSTMENT CR Related Adjustments 233
Confidential
4.10 CR Related Adjustments
4.10.1 CR Belt Tension Check
REQUIRED TOOLS
 Sonic tensimeter U-507
 Any tools to flip the belt
STANDARD VALUE
 48 ± 2 N
EXECUTION MODE
Normal Mode
PROCEDURE
1. Remove the following parts in advance.
 Left Cover (P. 98)
2. When any paper is loaded, remove it.
3. Turn the printer ON.
4. Start the Service Program and select CR Belt Tension Check.
5. Click [Run].
The CR Unit moves left and right three times, and then moves to the center.

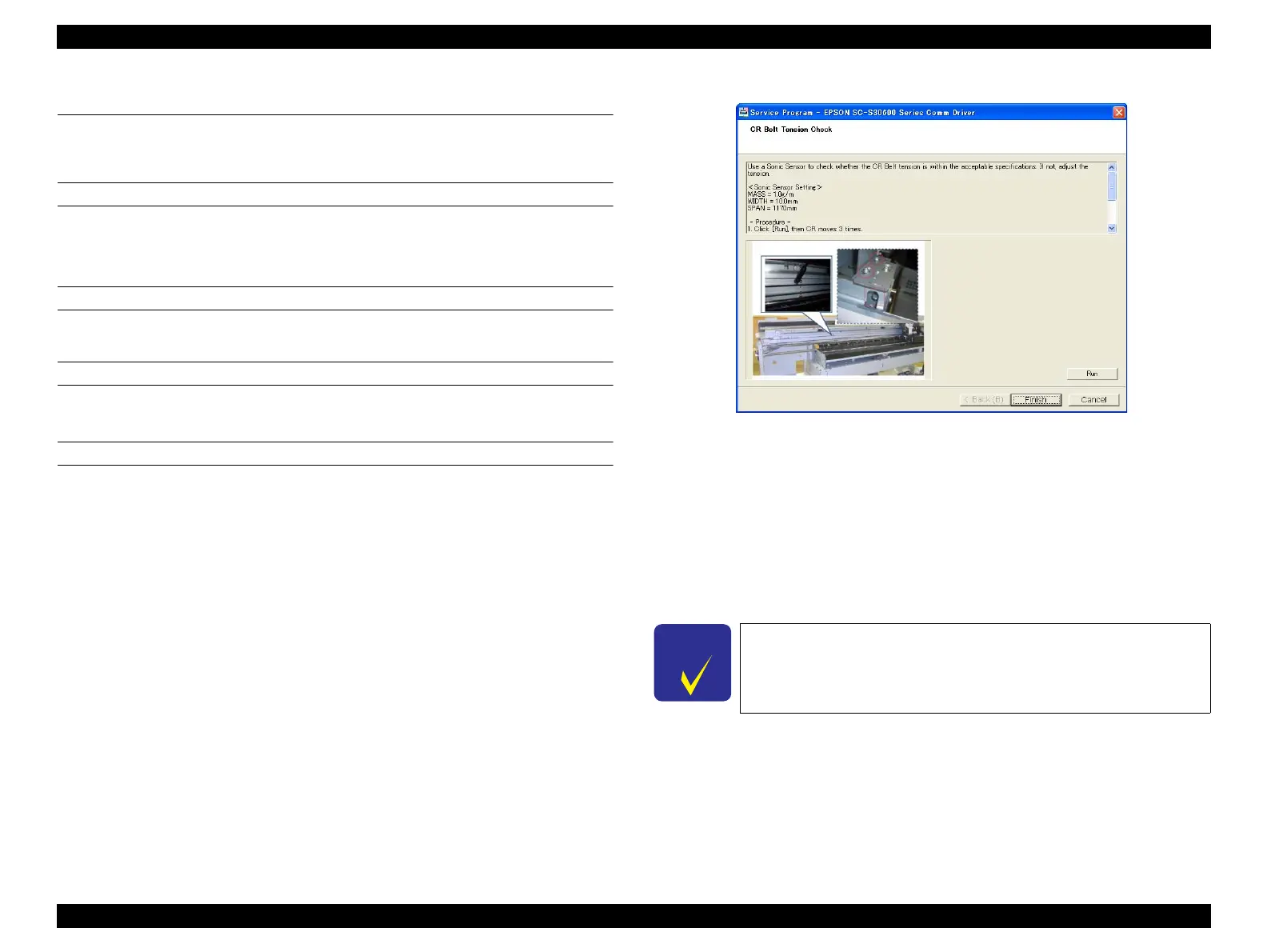

Figure 4-14. [CR Belt Tension Check] Screen
6. Input the following values to the tensimeter.
 MASS: 1.0 g/m
 WIDTH: 10.0 mm/R
 SPAN: 1170 mm
7. Bring the microphone of the tensimeter closer to the position shown in Figure
4-15.
C H E C K
P O I N T
Bring the microphone within 5 mm from the belt but do not let it
touch the belt.
