109

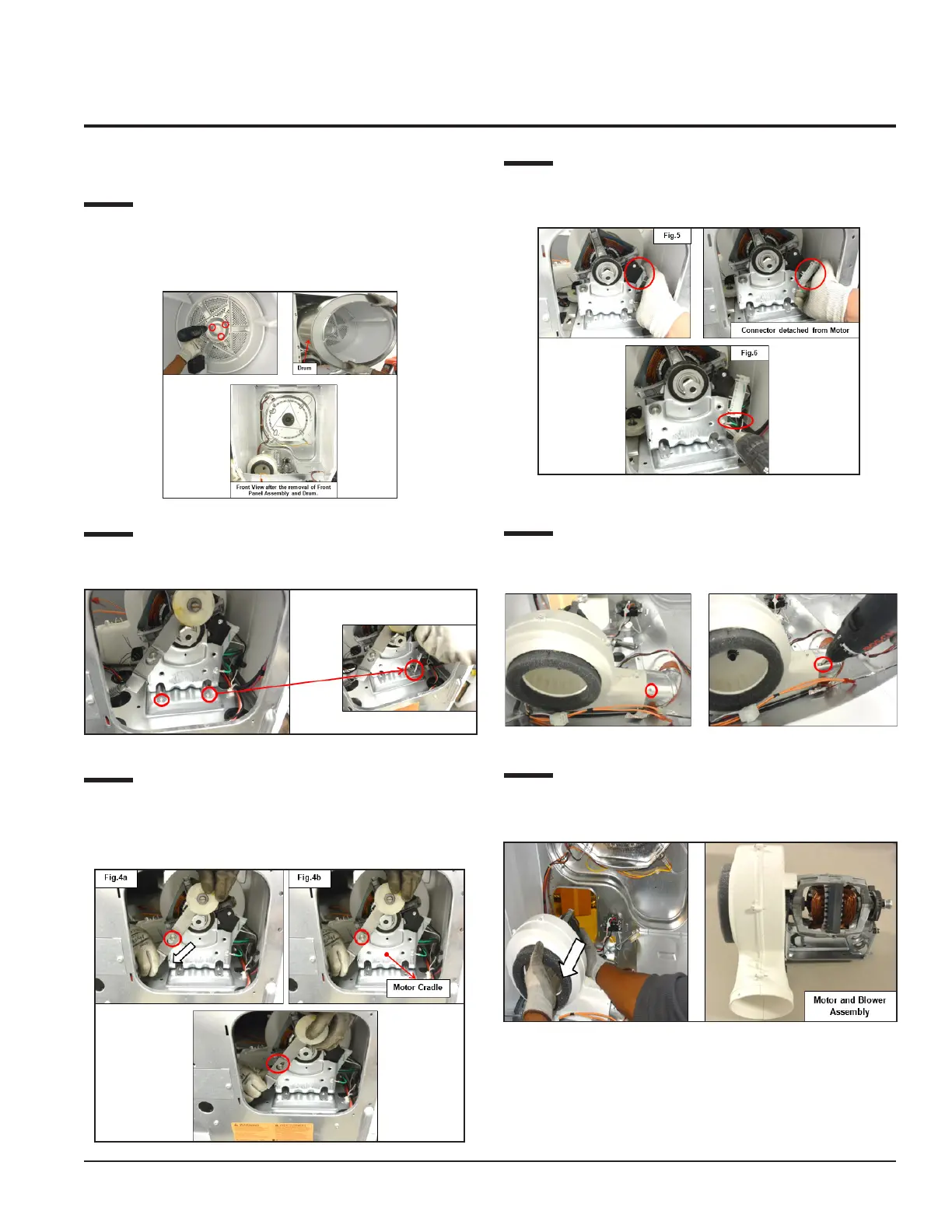

11.6.2 Drum Accessibility
Step: 3
Loosen the screws (3) that fixes with the Drum Support
Shaft (Ball Hitch) and carefully pull out the drum from the
dryer cabinet.
Step: 4
Loosen the Motor Cradle screws (2) fitted to the base panel
of the dryer.
Step: 5
Remove the Idler Arm Assembly from the Motor Cradle
(Motor support) Figs. 4a and 4b by unlocking from the pivot
hinge.
Step: 6
Detach the connector of the motor (See Fig. 5) and the
earth terminal from the Motor Cradle (See Fig. 6).
Step: 7
Loosen the screw that connects the Blower with the
exhaust duct.
Step: 8
Pull out the Blower and the Motor Assembly from the Front
Side of the machine.
To Next Page
