Step: 4

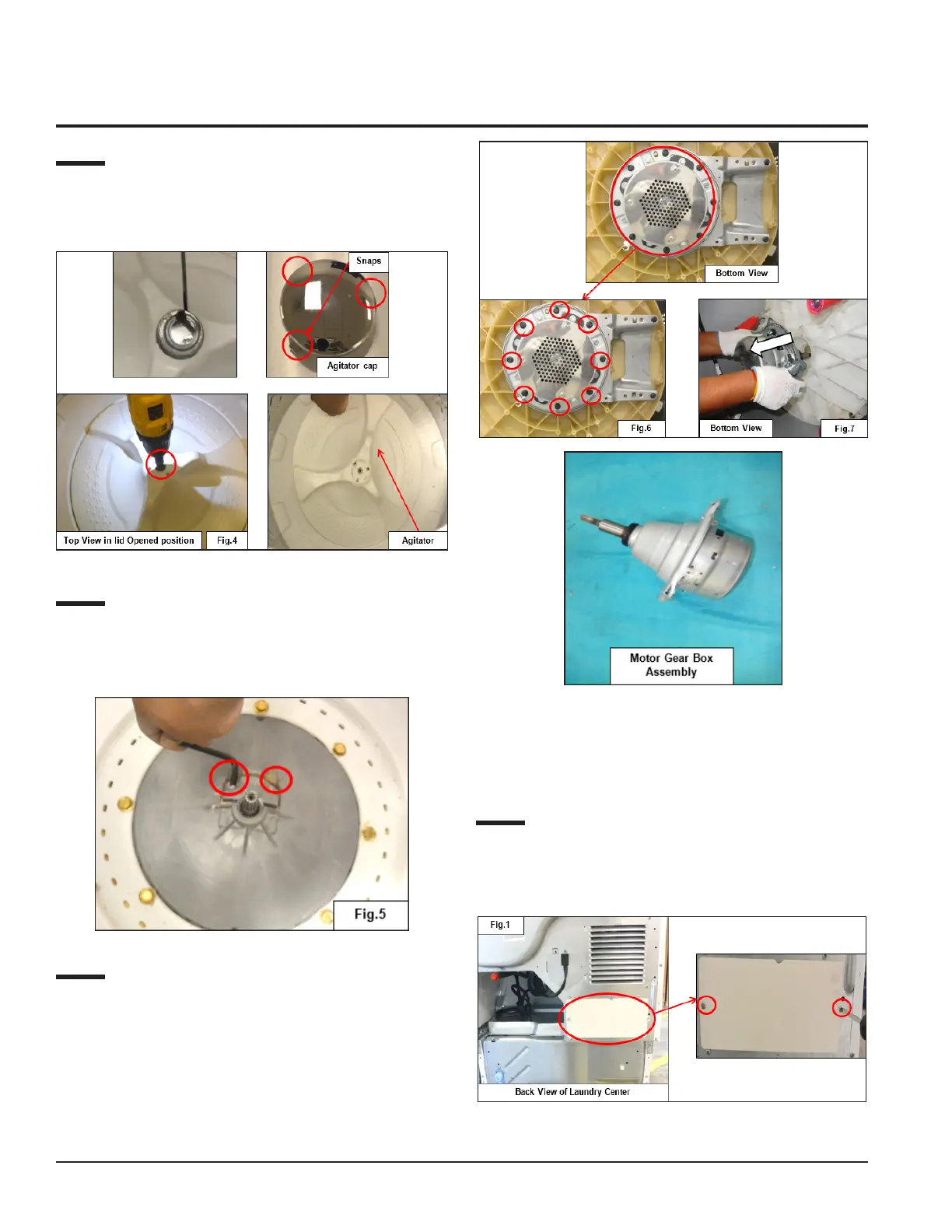

Remove the Agitator cap by detaching the snaps (See Fig. 3),
loosen the Agitator Screw as shown in Fig. 4, and then take
it out.
Step: 5
Loosen the Allen Screws (2) by using the Allen key as shown
in Fig. 5 to disengage the Motor Gear Box Shaft from the
Drum Hub Assembly.
Step: 6
Loosen the Motor Gear Box Assembly screws (See Fig. 6)
from the Drum and pull it out as shown in Fig.7.
14.7 Main Control Board
Accessibility
Step: 1
Loosen the Main Control Board cover screws (2) which are
fitted with the Laundry Center - Dryer Rear Panel (See
Fig.1) and take it out as shown in Fig. 2.
