112

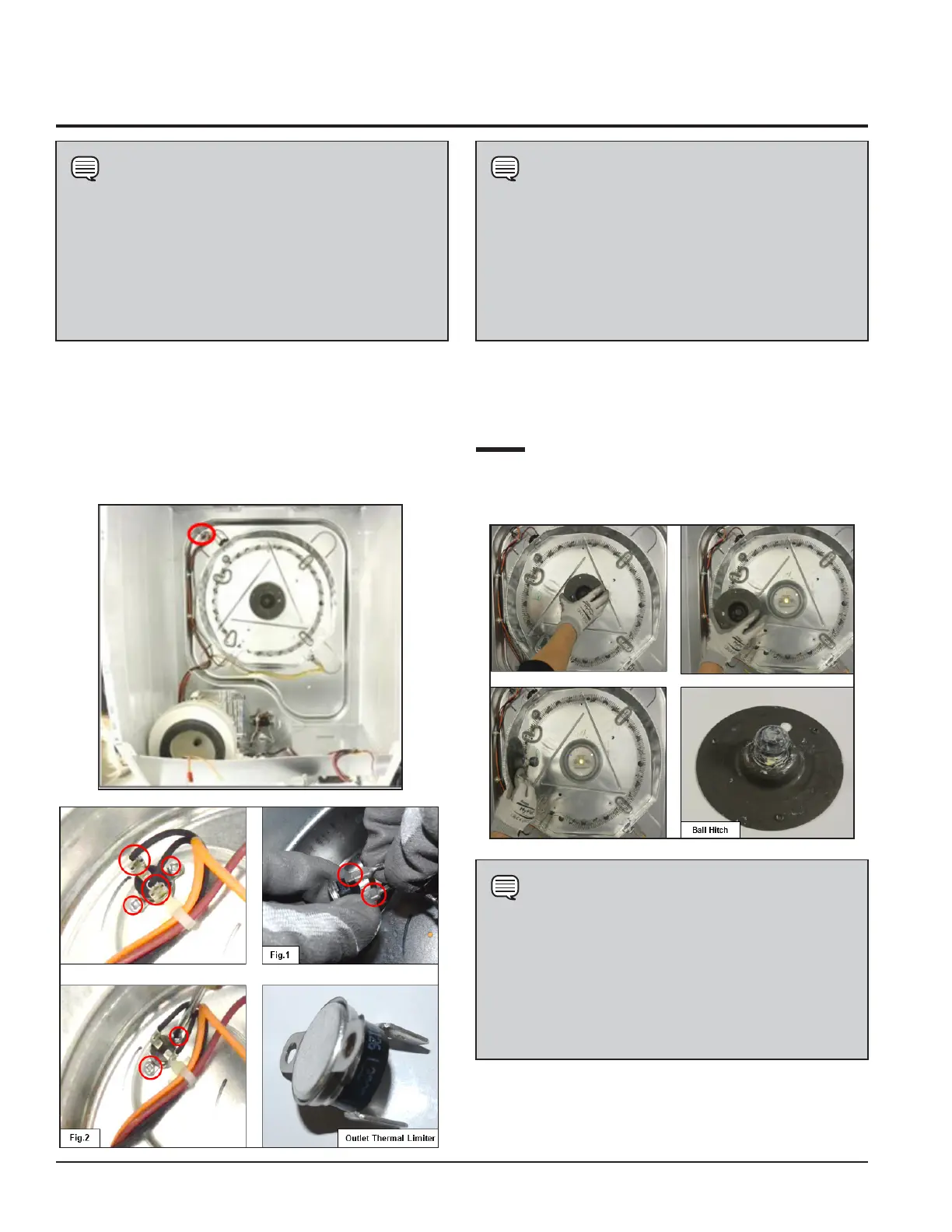

11.6.6 Outlet Thermal Limiter
Accessibility
Detach the Outlet Thermal Limiter terminals (See Fig.1) and
loosen the screws (2) (See Fig. 2) that is fixed with the dryer
Rear Panel.
11.7 Heater (Electric) Assembly
Accessibility
Step: 1
Hold and lift the Ball Hitch (drum support) carefully to
separate from the Heater Assembly.
NOTE
1. To access the Inlet Thermal Limiter, access the
Front Panel Assembly and the Drum has to be
accessed.
2. Refer to the Front Panel Accessibility and Drum
Accessibility sections for accessing the Drum and
Front Panel Assembly.
NOTE
1. To access the Outlet Thermal Limiter, access the
Front Panel Assembly and the Drum.
2. Refer to the Front Panel Accessibility and Drum
Accessibility sections for accessing the Drum and
Front Panel Assembly.
NOTE
Ball Hitch and Dryer Drum support are fixed with the
same set of screws. Therefore, the Ball Hitch will be
in a free state position when the dryer drum screws
are loosened.
The Ball Hitch is a heavy component.Therefore,
handle it with care while accessing.
To Next Page
