85

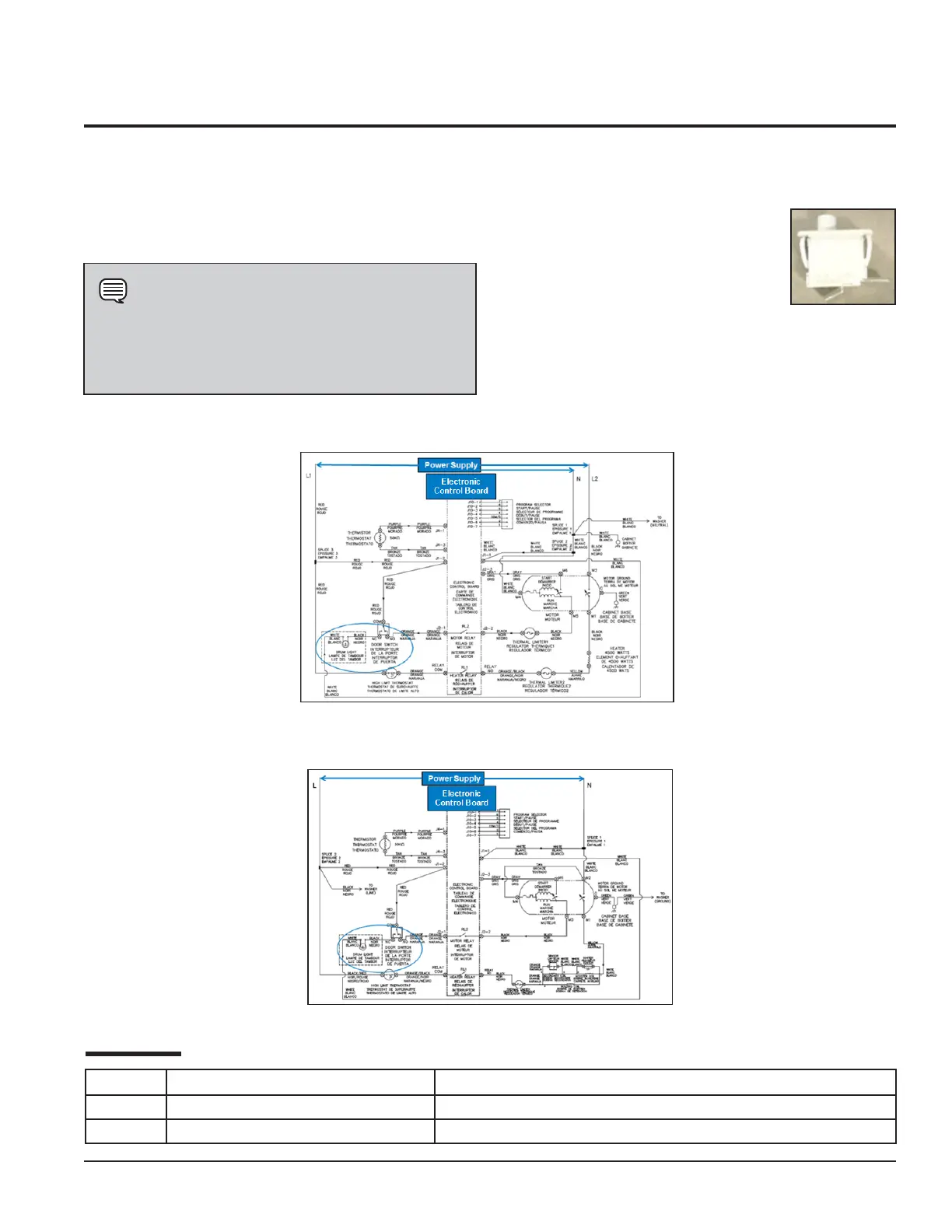

9.4 Door Switch and Drum
Light - FFLE3911QW and
FFLG4033QW
9.4.1 General Characteristics
The Dryer Door Switch is a push-button
that controls the operation of the dryer
light inside the drum. When the door is
closed the Drum Light will be OFF and
the Drum Light will be ON when the door
is opened.
The Dryer Door Switch also senses the position of the door
(open or closed), thus allowing the dryer to start its function
only when the door is closed.
Wiring Diagram - FFLE9311QW (Door Switch and Drum Light)
Wiring Diagram – FFLG4033QW (Door Switch and Drum Light)
S.NO Component Specifications
1 Door Switch Contact Rating to Meet -10A,1/3HP,125/250 VAC.
2 Drum Light Voltage- 3.5VDC , Current - 350Ma
NOTE
The Drum Light is not applicable for Electrical
and Gas Dryer Models FFLE3911QW and
FFLG4033QW.
