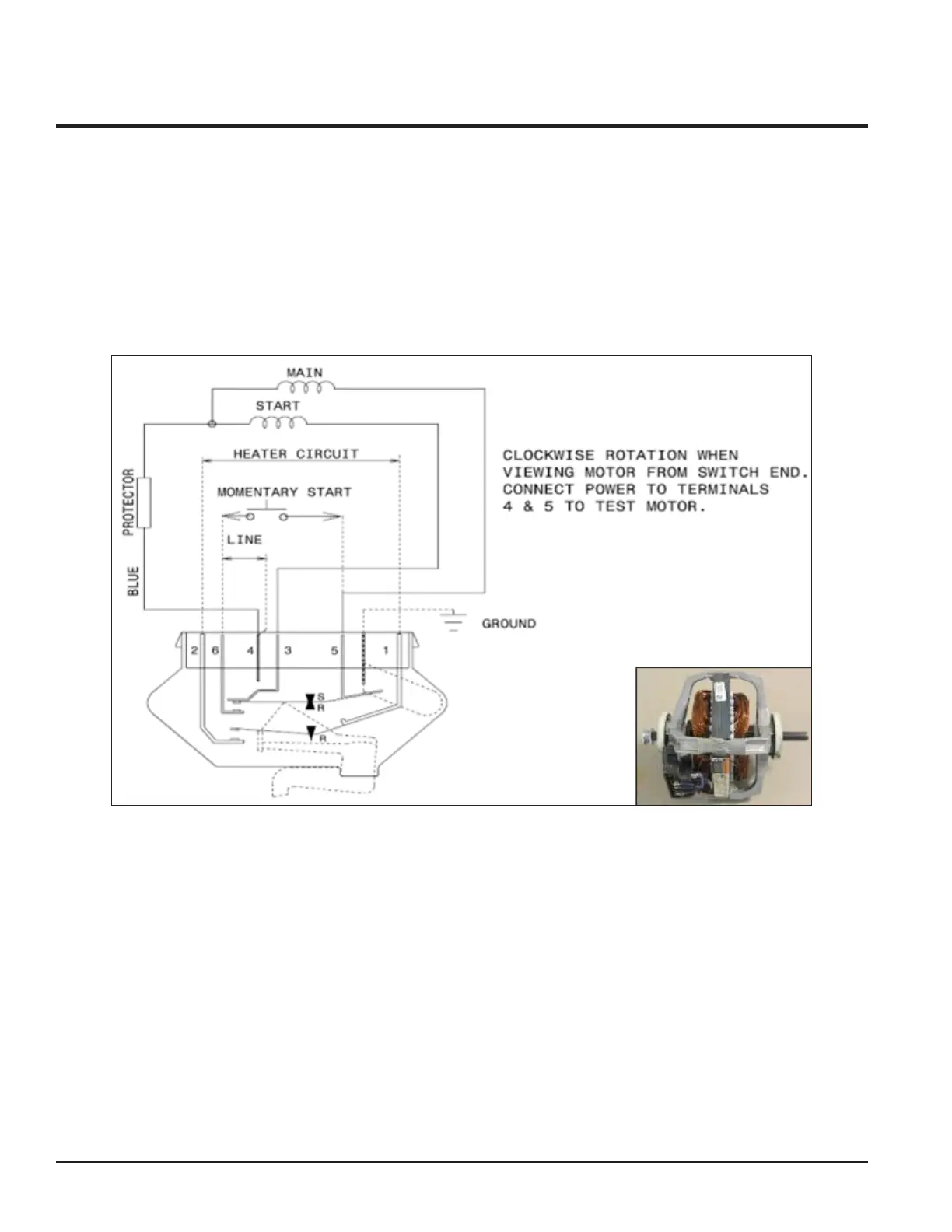

Connection Diagram - FFLE3911QW and FFLG4033QW
A single-phase AC current supplies the main winding that produces a pulsating magnetic field.The pulsating field could be
divided into two fields, which are rotating in opposite directions.The interaction between the fields and the current induced in
the rotor bars generates opposing torque.
The Motor Assembly is used to drive the Dryer Drum and the Blower. The motor is activated from the Electronic Control
Board through the Door Switch.
The motor is equipped with Overload Thermal Protection Tripper. This ensures that the motor is switched OFF, if any thermal
overload occurs.
