8.1.4 Motor Control Board (Washer)
Motor Control Board controls the Motor Gear Box Assembly functions, such as controlling the speed and rotation directions,
and overload protection functions (If equipped).
It receives signals from the Main Control Board and sends voltage to the drive motor to spin the drive motor in the proper
direction and speed. If the motor control is not working properly, the drive motor might not spin at all or might spin at the
wrong speed.
Motor Brake Clutch functions is controlled by the Main control Board and the Motor Control Board is powered by the Main
Control Board.

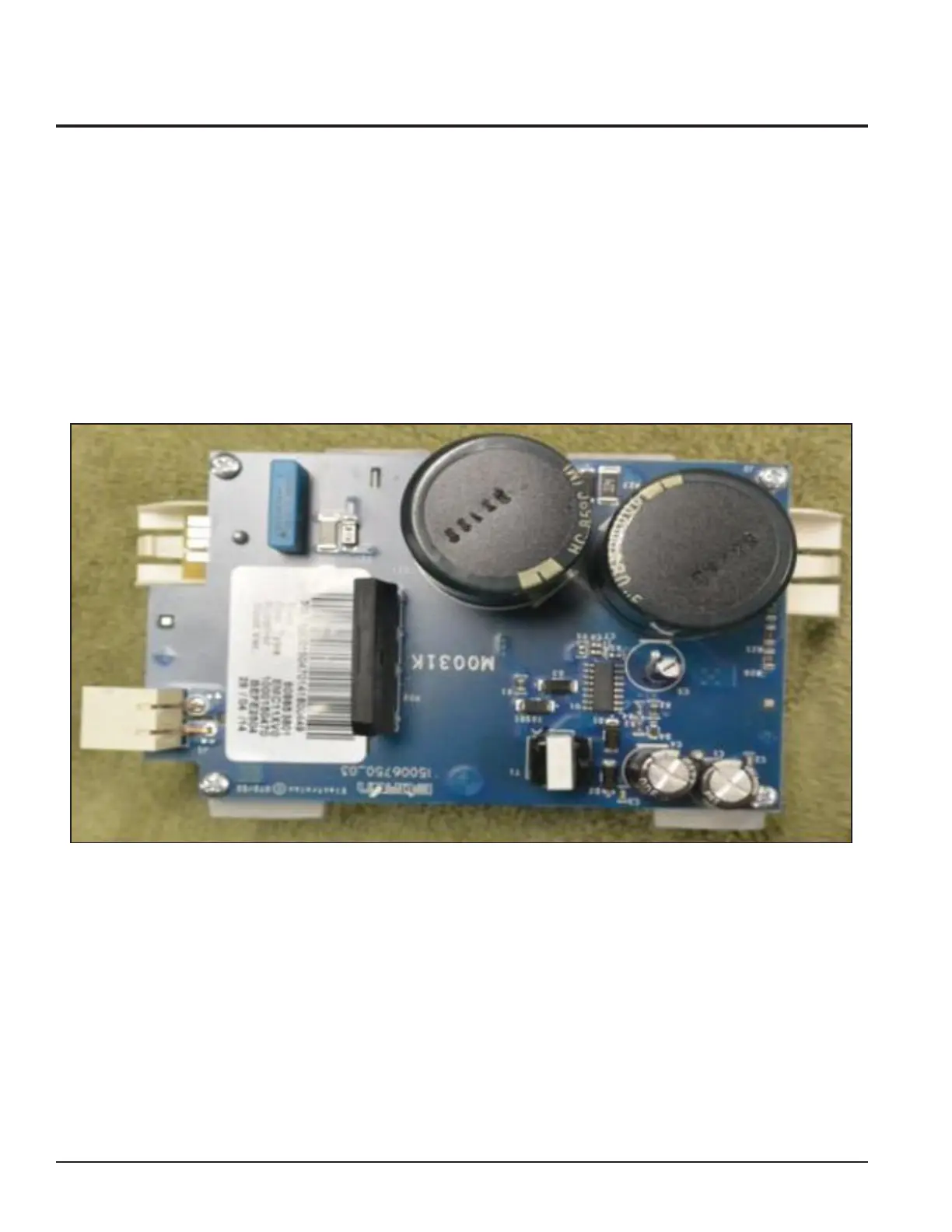

Motor Control Board - FFLE3911QW and FFLG4033QW (Washer)
