Step: 2

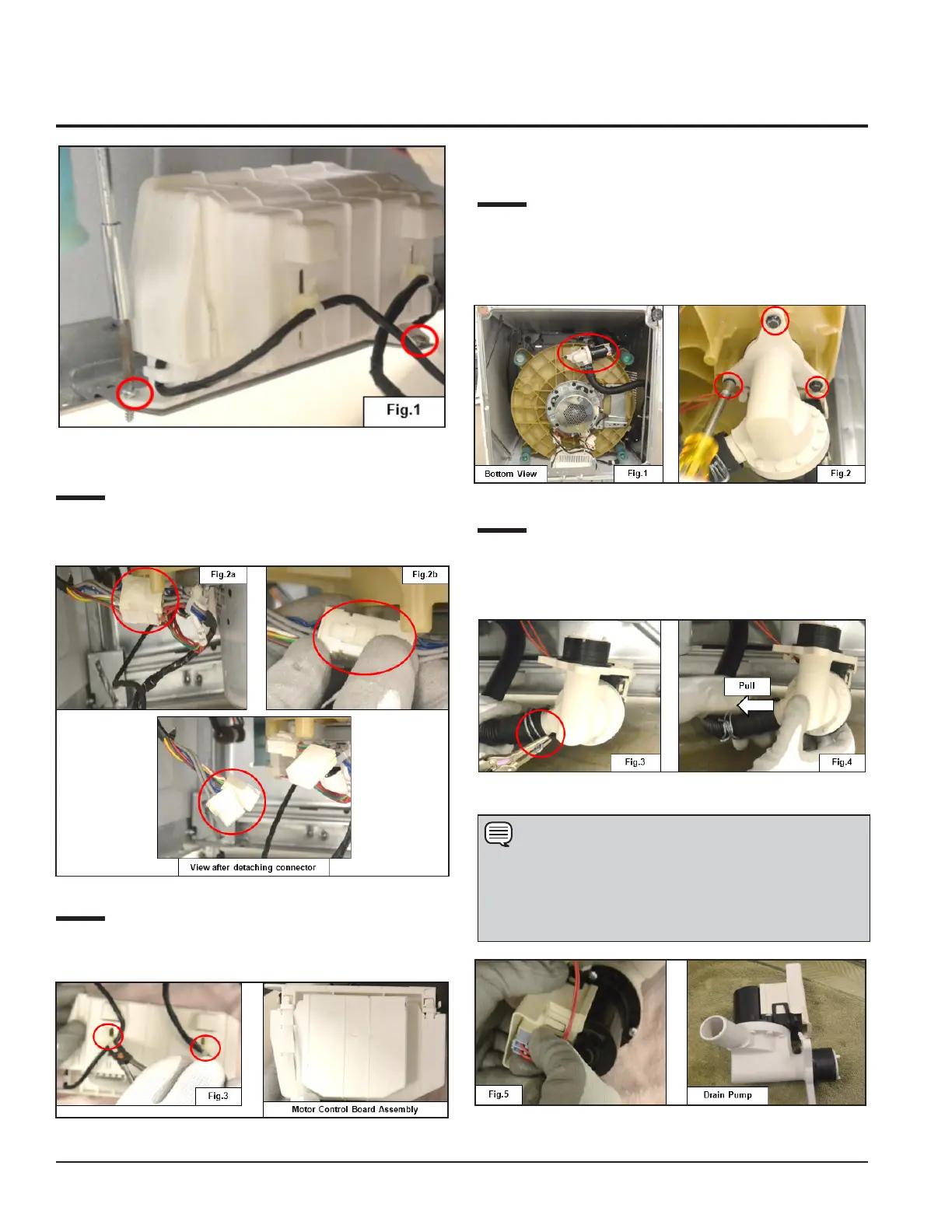

Detach the connectors (2) of the Motor Control Board from
the Motor Assembly as shown in Figs. 2a and 2b.
Step: 3
Remove the wire clips to separate the Motor Control Board
Assembly as shown in Fig.3.
14.4 Drain Pump Accessibility
Step: 1
Lean down the machine safely on the floor as shown in
Fig.1, so that the bottom of the machine is completely
visible. Then loosen the Screws (3) that are fitted with the
Washer Tub (See Fig. 2).
Step: 2
Remove the Drain Hose Clamp (See Fig. 3) and pull out the
drain hose (See Fig. 4), then detach the connector (See Fig.
5) and take it out.
NOTE
There is a possibility of water leakage while servicing
the drain pump, and drain hose. Therefore, always
place the cotton cloth below the machine to absorb the
water.
To Next Page
