96
9.12 Lid / Door Lock
- FFLE3911QW and
FFLG4033QW
9.12.1 General Characteristics
The Lid Lock is the electrical device which locks the door
when the user selects the program. When the user after
placing the clothes inside the drum, closes the door and
selects the program, the Lid
Switch sends the signal to the Lid
Lock to lock the Door. Thereby,
the user cannot open the Door
while the program is running.

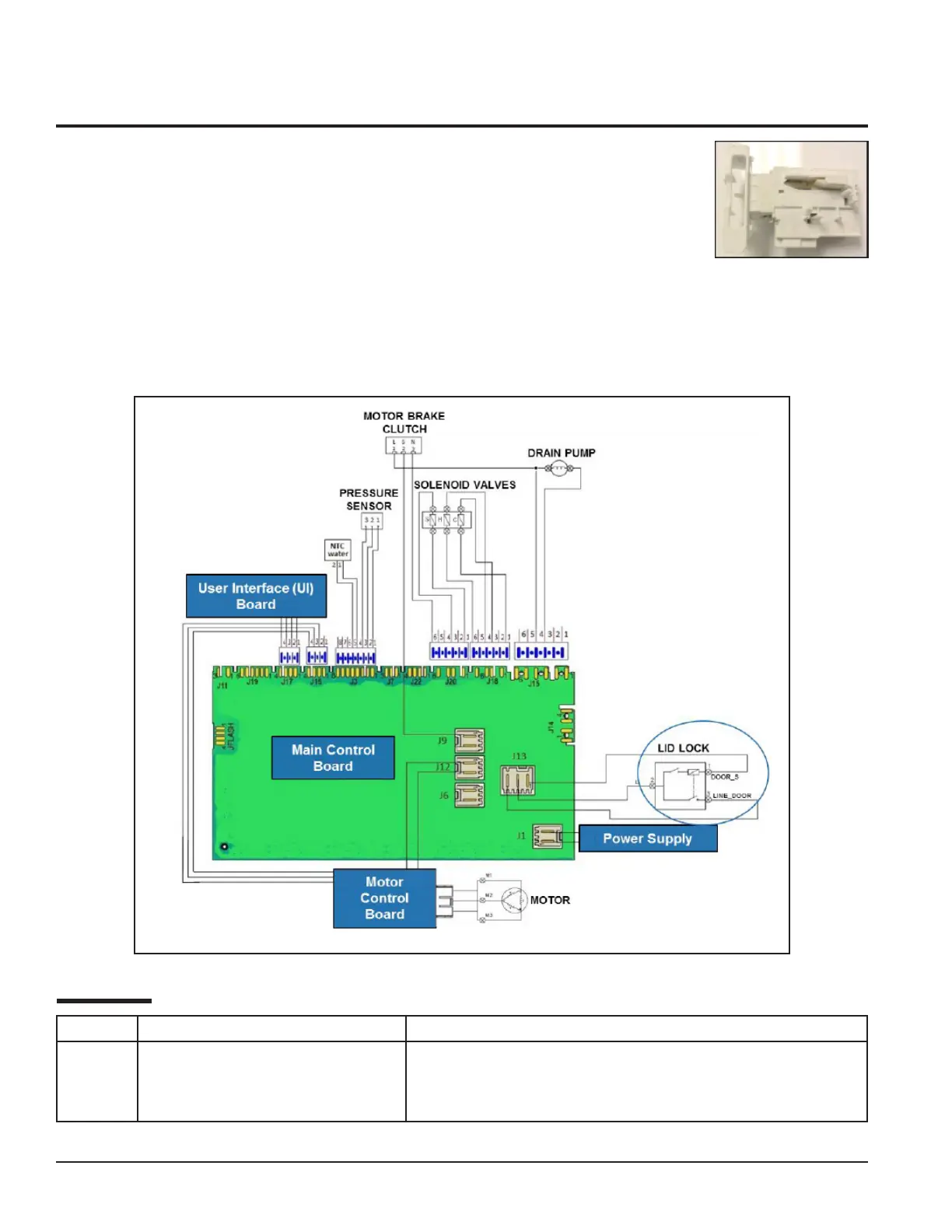

Wiring Diagram - FFLE3911QW and FFLG4033QW
S.NO Component Specifications
1 Lid Lock
Internal contacts: 120 / 240 VAC, 50 / 60 Hz; Electrical Life:
15000 cycles @ 3A; External Micro switch: 16A, 250V, Power: 1
HP @ 125 VAC, 2 HP @ 250 VAC, and
Resiatance @ 25 ˚C - 105 Ω ± 10%.
Specifications
