3. Running the exhaust system through an uninsulated
area may cause condensation and faster accumulation of
lint.
4. Compression or crimping of the exhaust system will
cause an increase in vent restriction.
5. Inspect and clean the exhaust system at a minimum
period of every 18 months with normal usage. The more
the dryer is used, the more often you should check the
exhaust system and vent hood for proper operation.

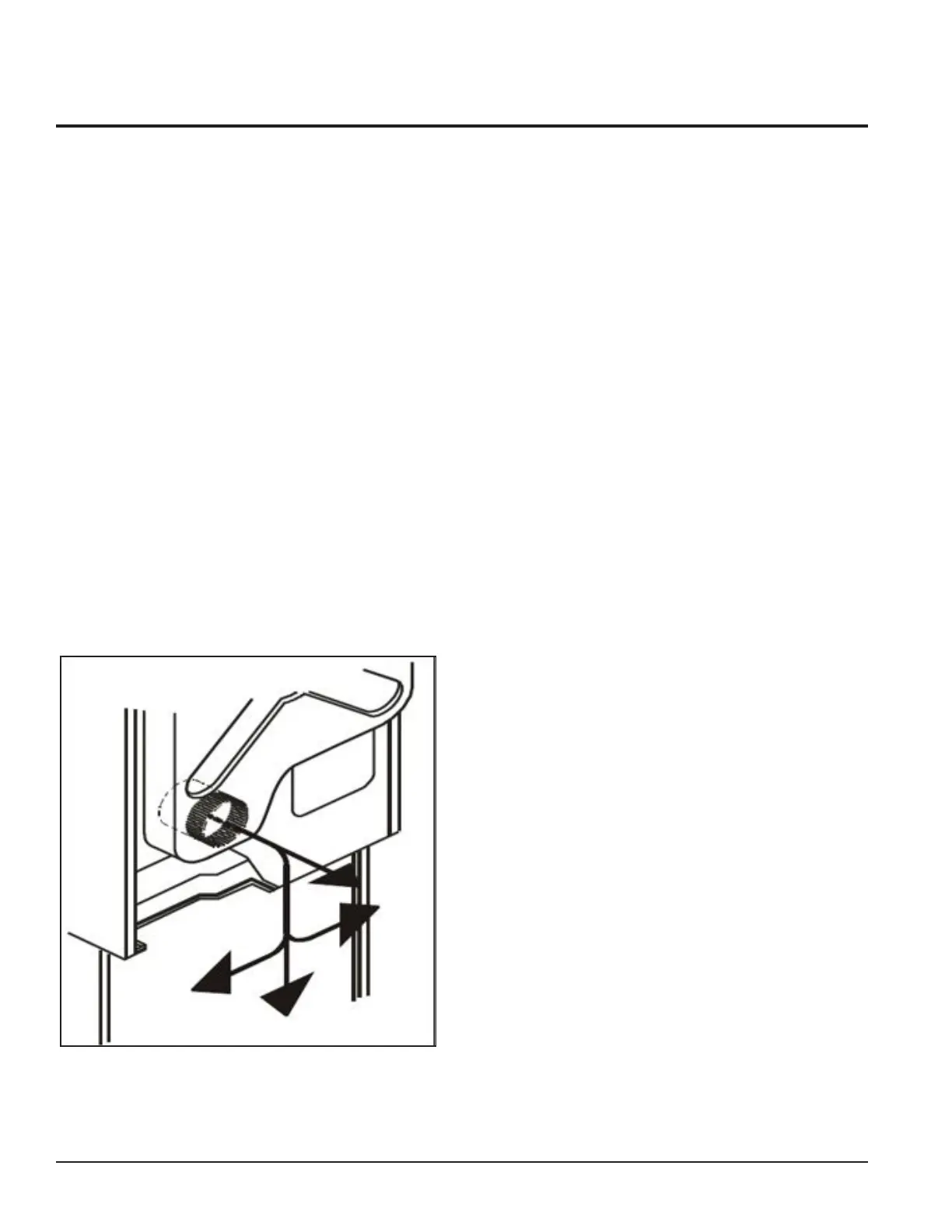

Exhaust Direction
The Laundry Center may be exhausted in four ways with
rear flush installation.
1. Straight back.
2. Down (8 inches [20.3 cm] length of 4 inches diameter
[102 mm] rigid duct and 1 elbow down).
3. Left (8 inches [20.3 cm] length of 4 inches diameter
[102 mm] rigid duct, 1 elbow down and 1 elbow left).
4. Right (8 inches [20.3 cm] length of 4 inches diameter
[102 mm] rigid duct, 1 elbow down and 1 elbow right).
To exhaust upwards, add an 11 inches (28 cm) length of
standard 4 inches (102 mm) diameter duct and a 90° elbow.
The unit will be positioned about 4.5 inches (11.5 cm) away
from the wall (flush to wall exhausting may be done by going
below the dryer rather than sideways).
An exhaust hood positioned to line up with the dryer
exhaust can be installed directly through the outside wall.
To exhaust to the side or down, add an 8 inches (20.3 cm)
length of standard 4 inches (102 mm) diameter duct and a
90° elbow.
Refer to Clearance Requirements for more information.
6.3 Manufactured or Mobile
Home Installation
1. Installation MUST conform to current Manufactured
Home Construction and Safety Standard, Title 24 CFR,
Part 32-80 (formerly the Federal Standard for Mobile
Home Construction and Safety, Title 24, HUD Part 280) or
Standard CAN/CSAZ240 MH.
2. Exhaust the dryer outside (outdoors, not beneath the
mobile home) using metal ducting that will not support
combustion. Metal ducting must be 4 inches (10.16 cm) in
diameter with no obstructions. Rigid metal duct is preferred.
3. If the dryer is exhausted through the floor and area
beneath the mobile home is enclosed, the exhaust system
MUST terminate outside the enclosure with the termination
securely fastened to the mobile home structure.
4. Refer to the previous sections in this guide for other
important exhaust venting system requirements.
5. Make provision for outside make up air while installing a
gas dryer into a mobile home, This provision should not be
less than twice the area of the dryer exhaust outlet.
6. Installer MUST anchor this (1) dryer or (2) dryer
mounted on the pedestal to the floor with approved Mobile
Home Installation Kit.
