Product Overview
3

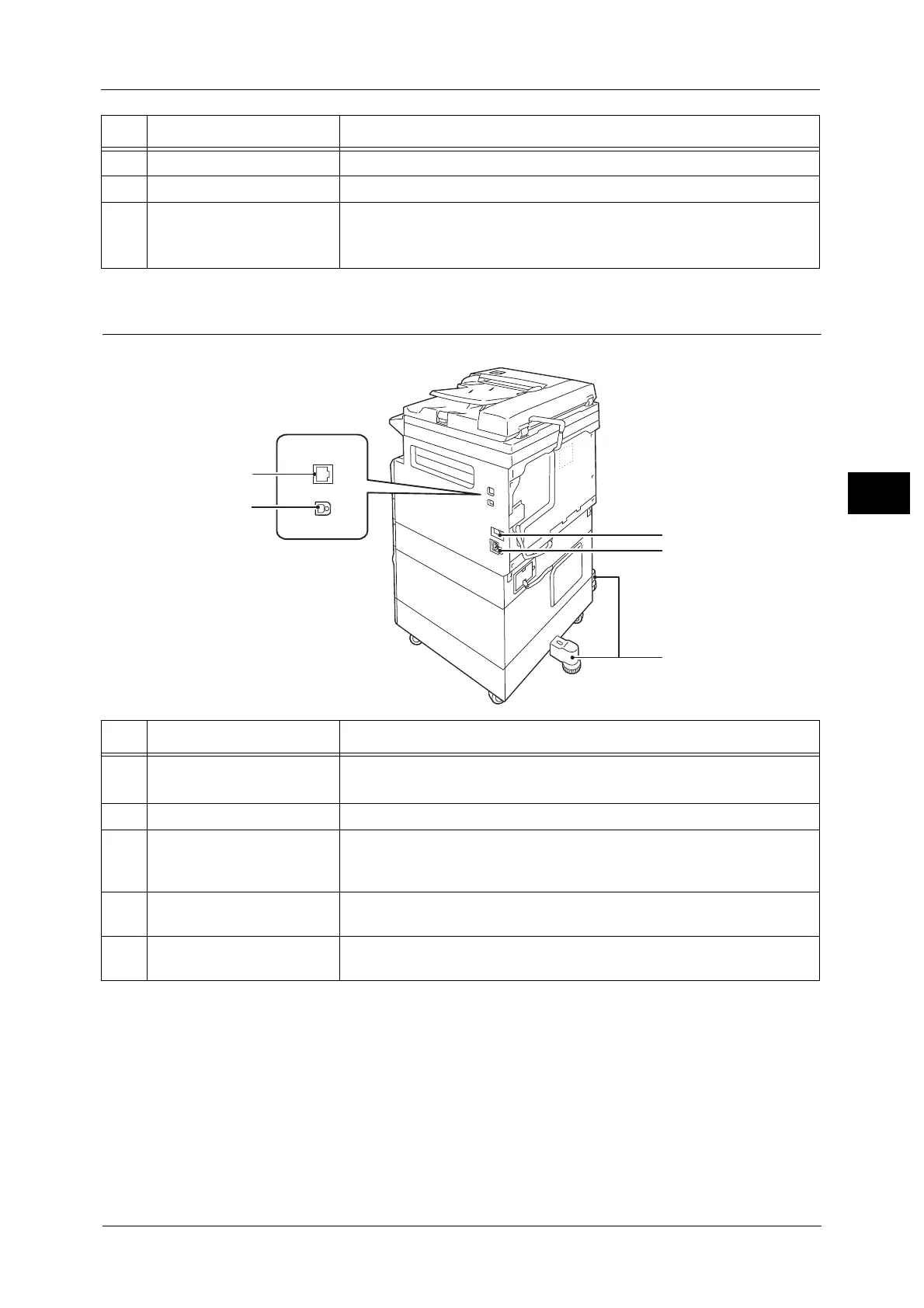

Right Side, Rear
11 One tray module cover [B] Open this cover to remove any jammed paper from Tray 2.
12 Tray 5 (bypass) Load paper here. The tray can be extended.
13 Left cover [A] Open this cover to remove any jammed paper.
Note • When the machine works properly, this cover is locked. To open this
cover, make sure to exit Sleep mode and turn the machine's power OFF.
No. Component Description
5
3
4
1
2
No. Component Description
1 Power switch Switches the power of the machine on and off.
For more information, refer to "Power Source" (P.64).
2 Power cord connector Connects the power cord.
3 Adjusting foot Prevents the machine from toppling over. Move the machine to its
installation site and then rotate this adjuster in clockwise direction until it
touches a floor.
4 USB 2.0 interface connector
(Type B)
Connect a USB 2.0 cable.
5 10BASE-T/100BASE-TX
interface connector
Connect a network cable.
