8 469 PC SOFTWARE 8.3 USING 469PC
8
8.3.5 UPGRADING SETPOINT FILES TO NEW REVISION
It may be necessary to upgrade the revision code for a previously saved setpoint file after the 469 firmware has
been upgraded.
1. Establish communications with the relay.
2. Select the
Actual > Product Information
menu item and record the Main Revision identifier of the relay
firmware; for example, 30D
270
A8.000, where
270
is the Main Revision identifier and refers to firmware
version 2.70.
3. Select the
File > Open
menu item and enter the location and file name of the saved setpoint file to be
downloaded to the connected relay. When the file is open, the 469PC software will be in “File Editing”
mode and “Not Communicating”.
4. Select the
File > Properties
menu item and note the version code of the setpoint file. If the version code of
the setpoint file (e.g.
2.6X
) is different than the Main Revision code of the firmware (as noted in Step 1, as
270
), use the pull-down tab to expose the available revision codes and select the one which matches the
firmware.
For example: Firmware revision: 30D
270
A8.000
current setpoint file version:
2.6X
change setpoint file version to:
2.7X

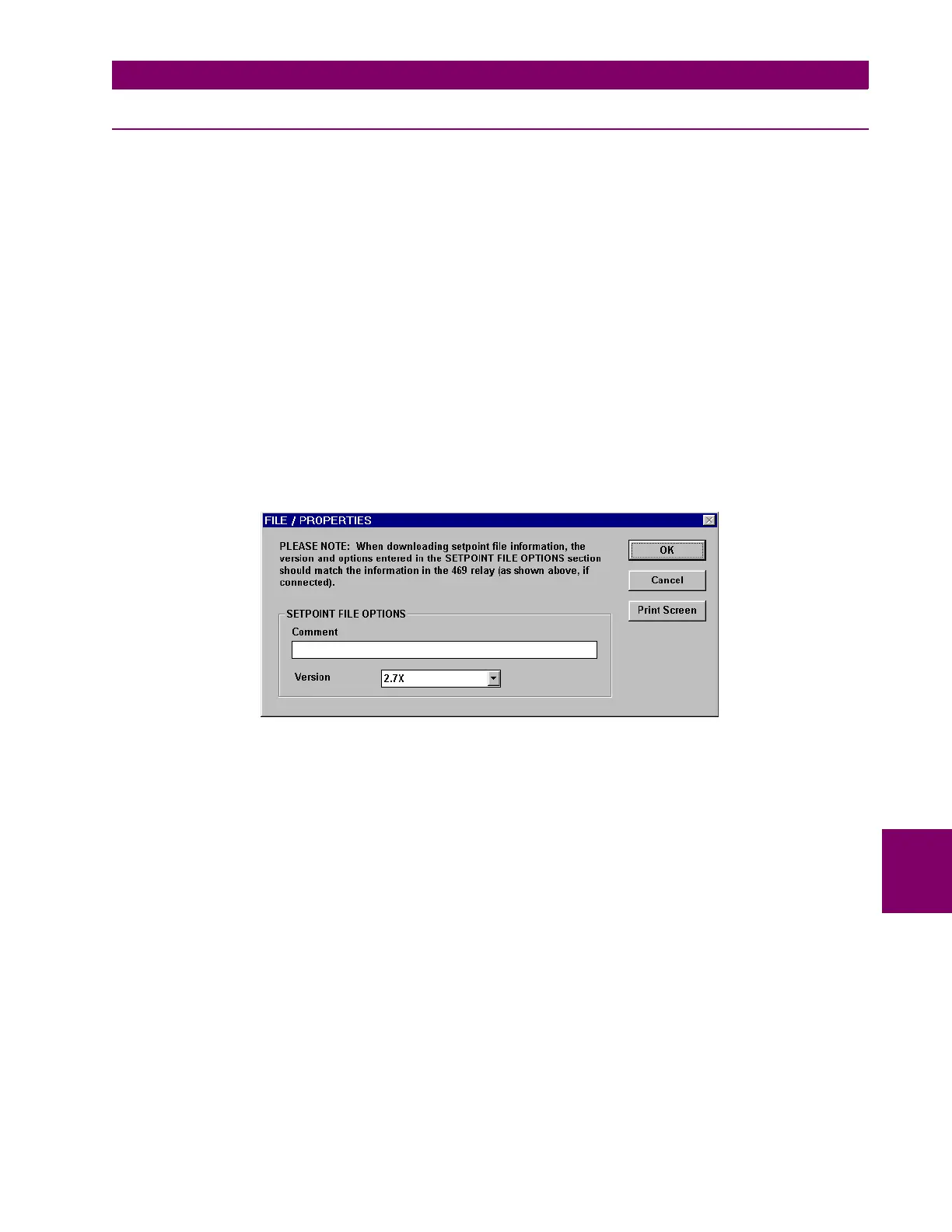

Figure 8–5: SETPOINT FILE VERSION
5. Select the
File > Save
menu item to save the setpoint file in the new format.
6. See Section 8.3.3: LOADING SETPOINTS FROM A FILE for instructions on downloading this setpoint file
to the 469.
