8.3 USING 469PC 8 469 PC SOFTWARE
8
8.3.10 EVENT RECORDING
The 469 event recorder can be viewed with the 469PC software. The event recorder stores motor and system
information each time an event occurs (e.g. motor trip). Up to 40 events can be stored, where EVENT01 is the
most recent and EVENT40 is the oldest. EVENT40 is overwritten whenever a new event occurs.
1. With 469PC running and communications established, select the Actual > Event Recording menu item to
open the
Event Recording
window. This window displays the list of events with the most current event dis-
played on top (see the figure below).
2. Press the
View Data
button to view the details of selected events.
3. The
Event Record Selector
at the top of the
View Data
Window allows the user to scroll through different
events.
4. Select
Save
to store the details of the selected events to a file.
5. Select
Print
to send the events to the system printer, and
OK
to close the window.
6. More information for the event recorder can be found under
Help
.

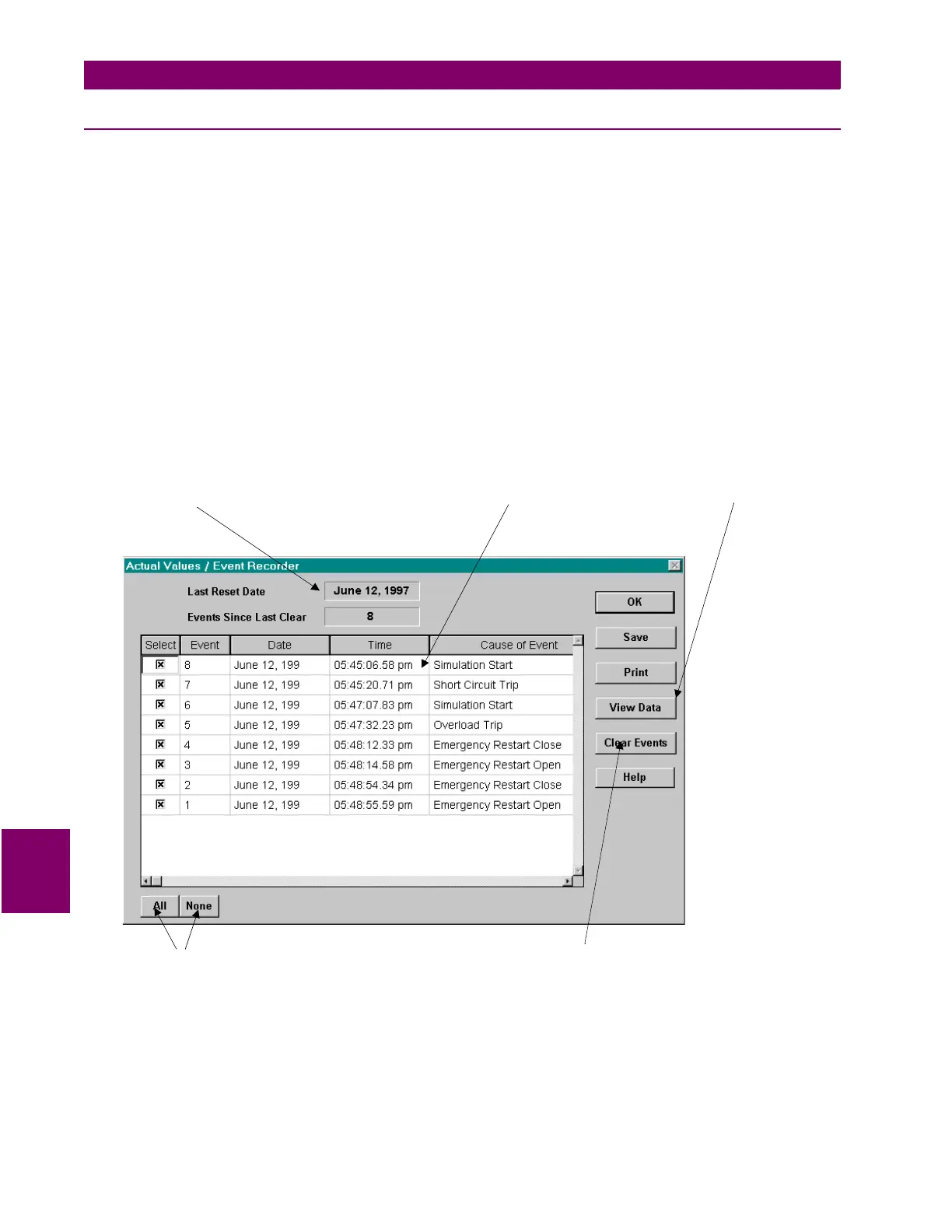

Figure 8–12: 469PC EVENT RECORDER
DISPLAY
Displays the date of last event and
the total number of events since
last clear
EVENT LISTING
List of events with the most
recent displayed on top
VIEW DATA
Click to display the details
of selected events
CLEAR EVENTS
Click the Clear Events button to
clear the Event Listing from memory
EVENT SELECT BUTTONS
Push the All button to select all events
Push the None button to clear all selections
