8 469 PC SOFTWARE 8.3 USING 469PC
8
8.3.8 WAVEFORM CAPTURE
The 469PC software can be used to capture waveforms from the 469 at the instant of a trip. A maximum of 64
cycles can be captured and the trigger point can be adjusted to anywhere within the set cycles. A maximum of
16 waveforms can be buffered (stored) with the buffer/cycle trade-off.
The waveforms captured are:
• Phase Currents A, B, and C
• Differential Currents A, B, and C
• Ground Current
• Phase Voltages A-N, B-N, and C-N
1. With 469PC running and communications established, select the
Actual > Waveform Capture
menu item
to open the
Waveform Capture
window.
2. The waveform of Phase A current of the last 469 trip will appear. The date and time of this trip is displayed
on the top of the window. The RED vertical line indicates the trigger point of the relay.
3. Press the
Setup
button to enter the
Graph Attribute
page. Program the graphs to be displayed by select-
ing the pull down menu beside each
Graph Description
. Change the
Color
,
Style
,
Width
,
Group#
, and
Spline
selection as desired. Select the same
Group#
for all parameters to be scaled together.

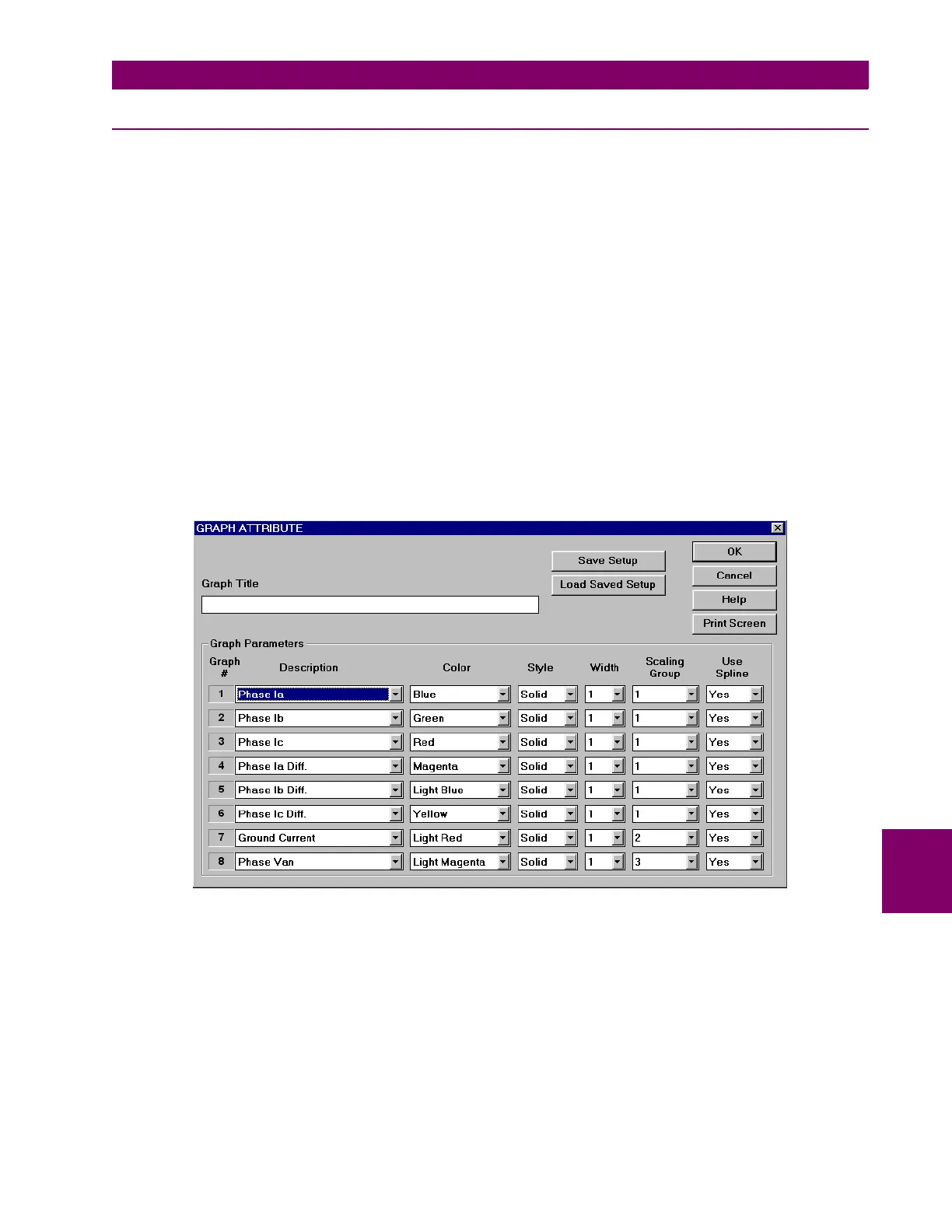

Figure 8–9: GRAPH ATTRIBUTE PAGE – WAVEFORM CAPTURE
4. Click
Save
to store these graph attributes then
OK
to close this window.
5. Select the graphs to display by checking the appropriate checkboxes.
6. The
Save
button can be used to store the current image on the screen, and
Open
can be used to recall a
saved image.
Print
will copy the window to the system printer.
