3-2 469 Motor Management Relay GE Power Management
3.1 OVERVIEW 3 OPERATION
3
3.1.2 DISPLAY

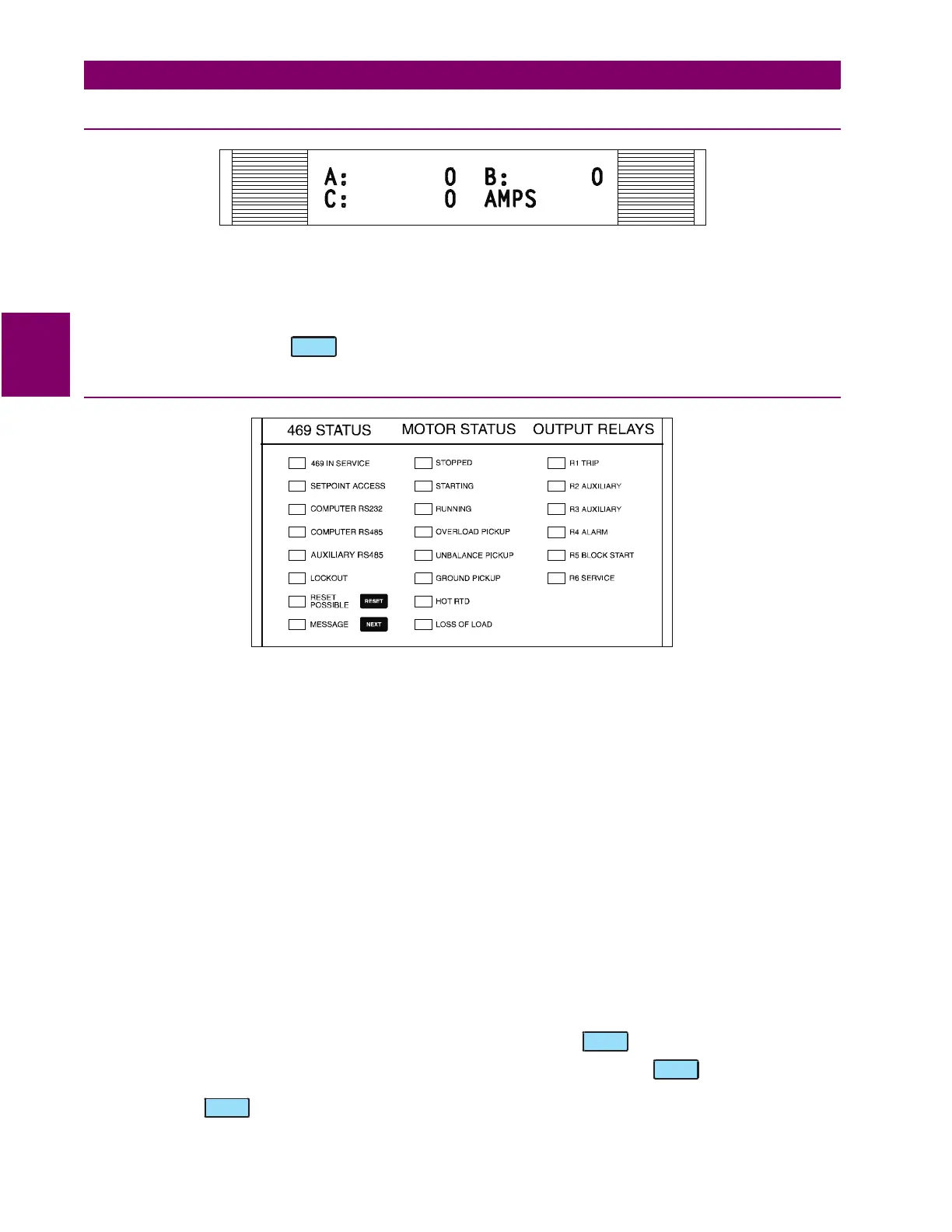

Figure 3–2: 469 DISPLAY
All messages are displayed on a 40-character vacuum fluorescent display designed for visibility under poor
lighting conditions. Messages are displayed in plain English and do not require an instruction manual to deci-
pher. When the keypad and display are not being used, the display defaults to the user-defined status mes-
sages. Any trip, alarm, or start block is displayed immediately, automatically overriding the default messages.
To perform a lamp test, press key for 2 seconds.
3.1.3 LED INDICATORS
Figure 3–3: 469 LED INDICATORS
There are three groups of LED indicators. They are 469 Status, Motor Status, and Output Relays.
a) 469 STATUS LED INDICATORS
•
469 IN SERVICE:
Control power is applied, all monitored I/O and internal systems are OK, the 469 has
been programmed, and the 469 is in protection mode, not simulation mode. When in simulation or testing
mode, the LED indicator will flash.
•
SETPOINT ACCESS:
The access jumper is installed and passcode protection has been satisfied; set-
points may be altered and stored.
•
COMPUTER RS232:
Flashes when there is any activity on the communication port. Remains on solid if
incoming data is valid.
•
COMPUTER RS485:
Flashes when there is any activity on the communication port. Remains on solid if
incoming data is valid and intended for the slave address programmed in the relay.
•
AUXILIARY RS485:
Flashes when there is any activity on the communication port. Remains on solid if
incoming data is valid and intended for the slave address programmed in the relay.
•
LOCKOUT:
Indicates start attempts will be blocked either by a programmed lockout time or a condition
that is still present.
•
RESET POSSIBLE:
A trip or latched alarm may be reset. Press the key to clear the trip or alarm.
•
MESSAGE:
Flashes when a trip, alarm, or start block occurs. Pressing the key scrolls through
diagnostic messages. This LED remains solid when setpoint and actual value messages are being viewed.
Pressing the key returns the display to the default messages.
HELP
RESET
NEXT
NEXT
