GE Power Management 469 Motor Management Relay 2-19
2 INSTALLATION 2.2 ELECTRICAL
2

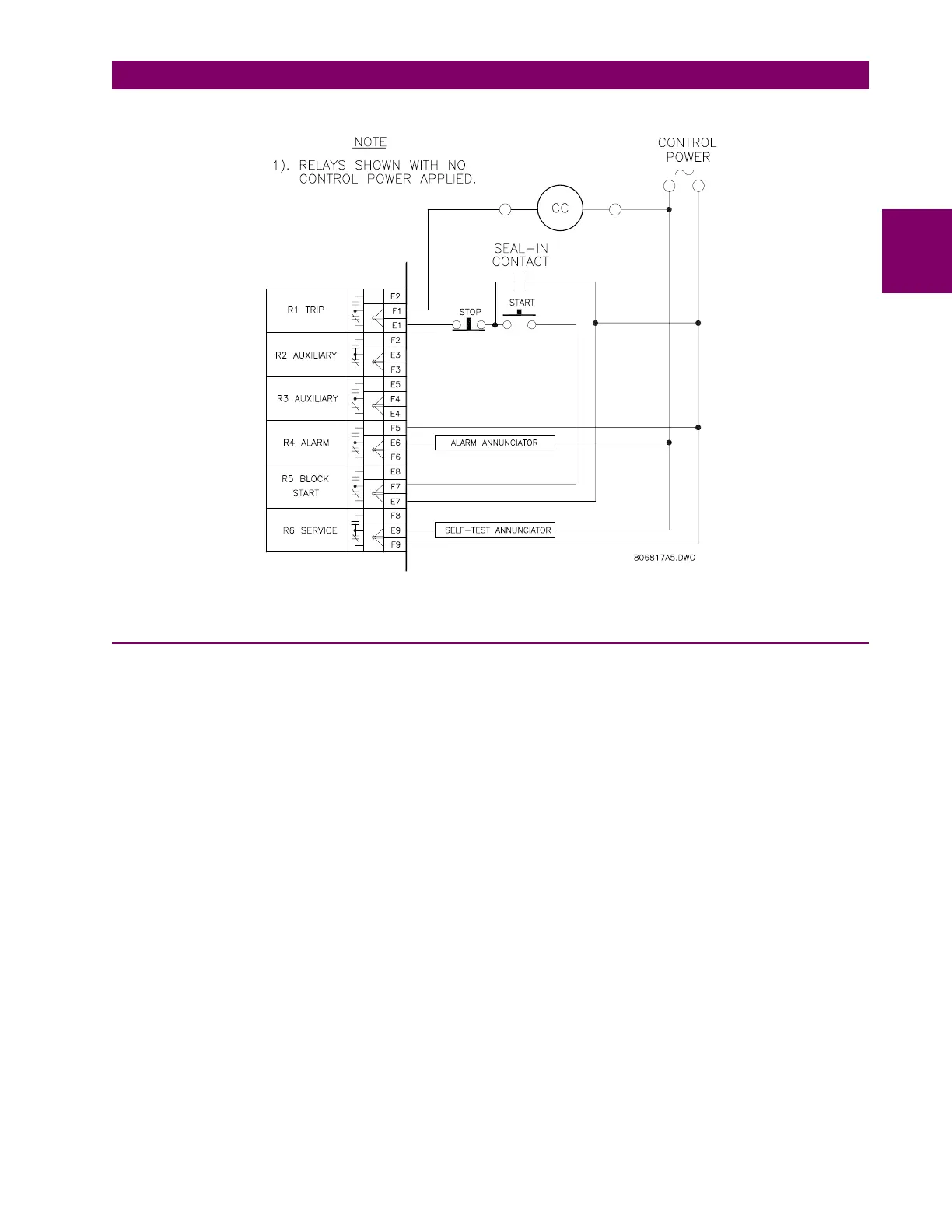

Figure 2–22: ALTERNATE WIRING FOR CONTACTORS
2.2.13 DRAWOUT INDICATOR
The Drawout Indicator is simply a jumper from terminals E12 to F12. When the 469 is withdrawn from the case,
terminals E12 and F12 are open. This may be useful for differentiating between loss of control power as indi-
cated by the R6 SERVICE relay and withdrawal of the unit.
