GE Power Management 469 Motor Management Relay 1-1
1 INTRODUCTION 1.1 OVERVIEW
1
1 INTRODUCTION 1.1 OVERVIEW 1.1.1 DESCRIPTION
The 469 Motor Management Relay is a microprocessor based relay designed for the protection and manage-
ment of medium and large horsepower motors and driven equipment. The 469 is equipped with six output
relays for trips, alarms, and start blocks. Motor protection, fault diagnostics, power metering, and RTU func-
tions are integrated into one economical drawout package. The single-line diagram below illustrates the 469
functionality using ANSI (American National Standards Institute) device numbers.

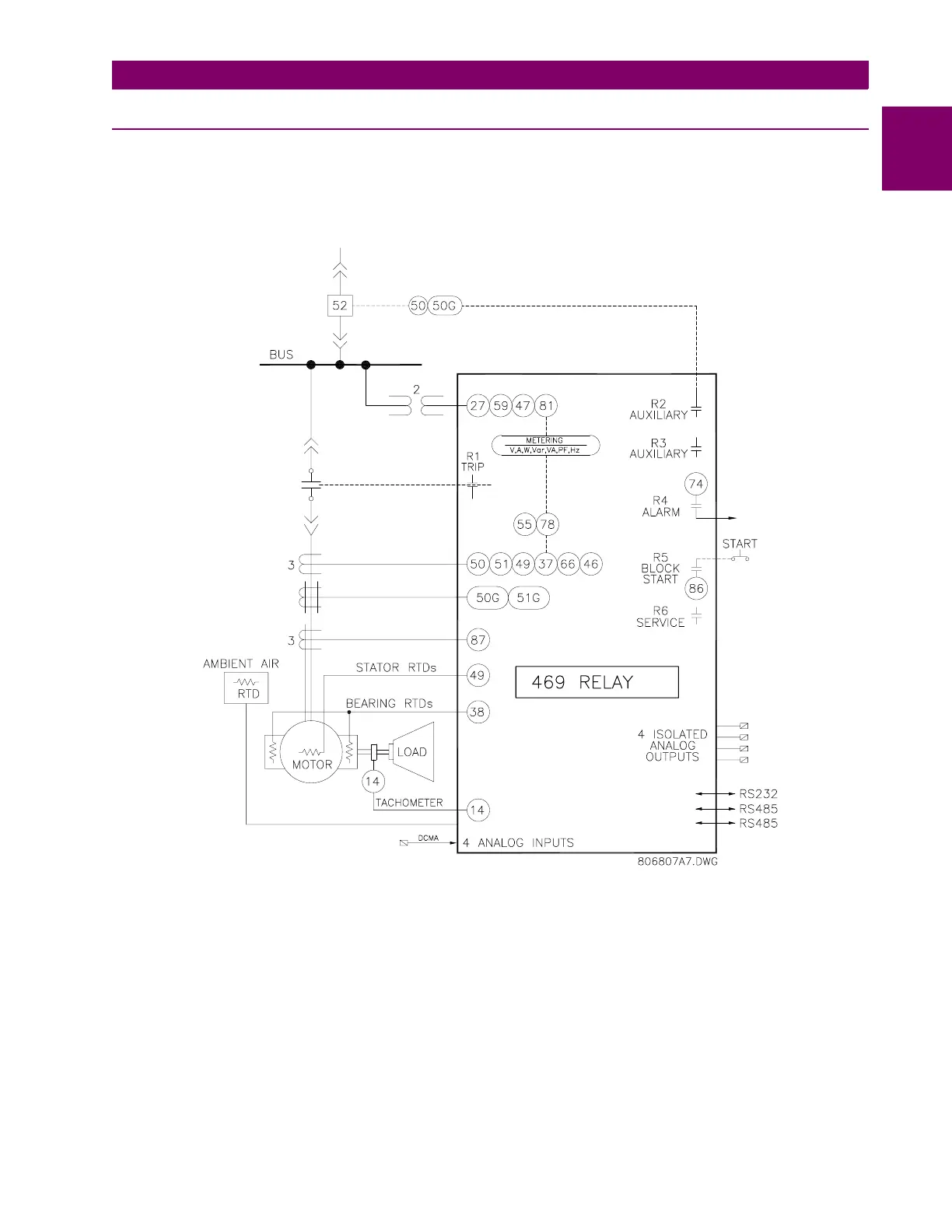

Figure 1–1: SINGLE LINE DIAGRAM
Typical applications include:
• Pumps • Fans • Compressors
•Mills •Shredders •Extruders
• Debarkers • Refiners • Cranes
• Conveyors • Chillers • Crushers
•Blowers

GE 469 Specifications

General

Brand	GE
Model	469
Category	Relays
Language	English
