Google Home User Manual

How to...

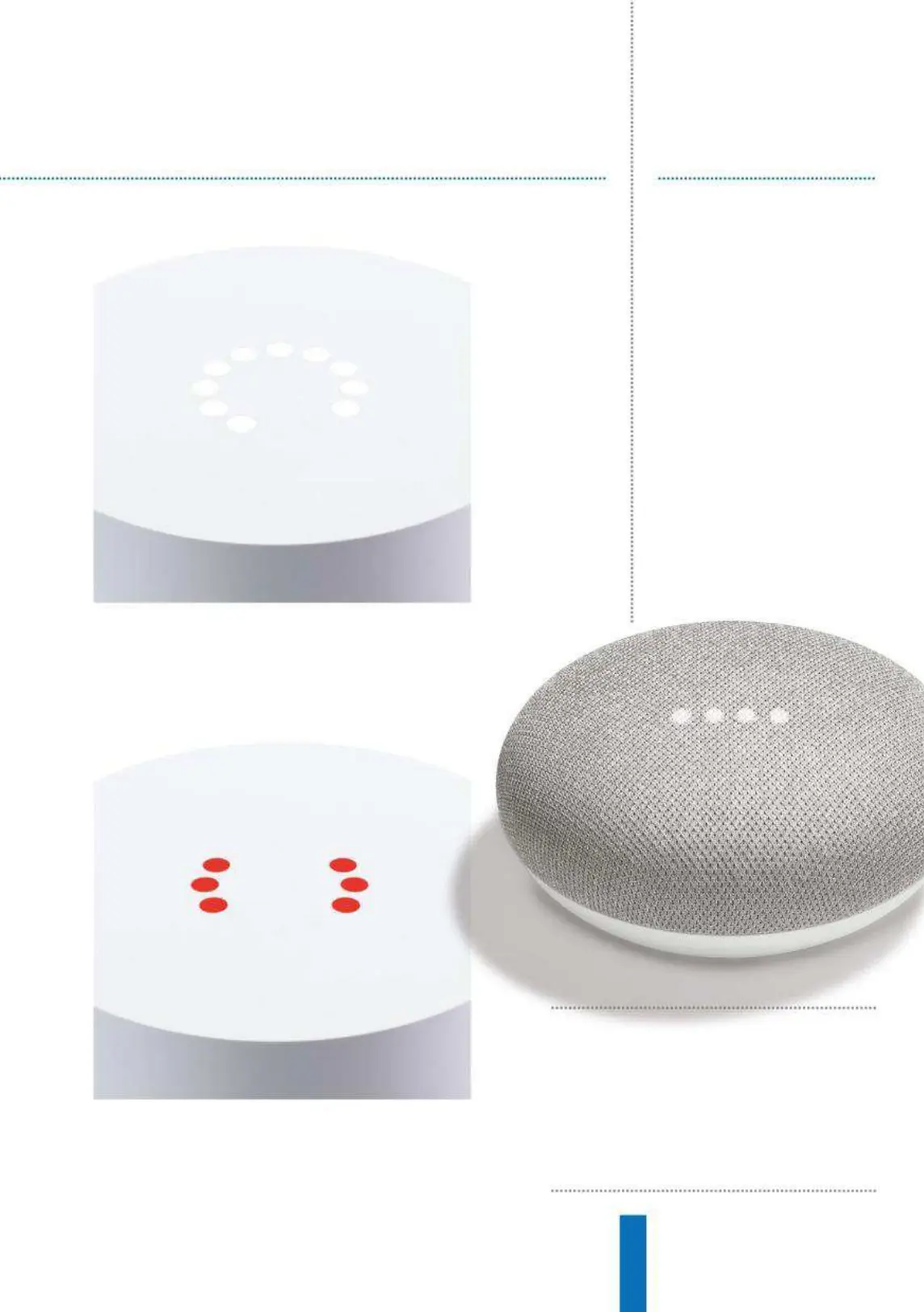

The Google Home Mini also has
LEDs at the top of the device, but
these display the device’s modes
differently to the standard Google
Home. The Mini’s LEDs don’t
move around like they do on
the regular Home’s touch panel,
instead they pulse in different
patterns and switch colours to
indicate what the device is doing.
When it is processing a question
or command it will pulse white
lights, when it is muted the lights
will be amber and when it is
turning on each LED will be a
different colour. If your device is
displaying something not covered
in this guide, go to support.
google.com/googlehome/
answer/7073219 for more
examples of its notifications.
Mini LEDs
Volume
The Google Home displays its volumes with up to ten white
LED dots. One dot means it is muted while ten means it is
at max volume.
Error
We hope you never see this colour, but six static amber
lights means that the Google Home has come across an
error while trying to complete a task.
Set up your Google Home
Your Google Home will
emit a range of colourful
visual notifications during
setup and while in use
21

Google Home Specifications

General

Speaker type	-
Driver diameter	50.8 mm
Speaker placement	Tabletop/bookshelf
Audio output channels	1.0 channels
Product color	White
Housing material	Fabric
Hands-free mode	Yes
RMS rated power	- W
Audio formats supported	FLAC, HE-AAC, LC-AAC, LPCM, MP3, Vorbis, WAV
Connectivity technology	Wireless
Cable length	1.8 m
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Current	2 A
Power source type	DC

Weight and Dimensions

Width	- mm
Height	142.8 mm
Weight	477 g
Diameter	96.4 mm
