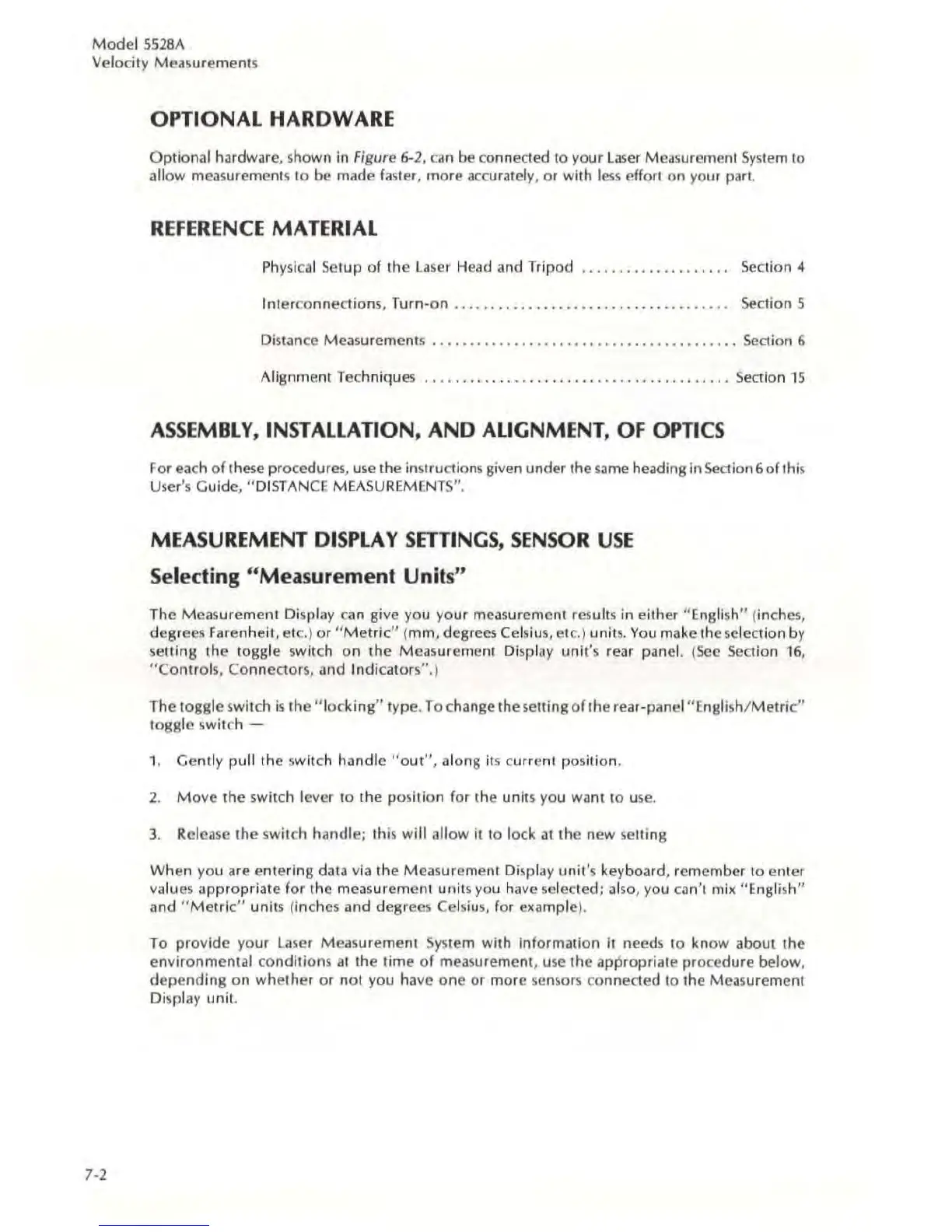

HP 5528A User Manual

Model 5528A
Velocity
Mea s urement s
7-2
OPTIONAL HARDWARE
Optional hardware, shown in Fi g ure 6-2, can be connected to your La ser M easurement System to
allow measurements 10 be made fa ster, more ac curatel y, or with les s effort on yo ur parI.
REFERENCE MATERIAL
Physi c al Setup of the Laser Head and Tripod Section 4
I
nter c onne ctions, Turn-on ..... . . ....... .... .. .. .. .. .... .. ..... Section 5
Distance Measurements . .......•.• ... ....... •. •. . .. . ....... .. . .. Section 6
Alignment Techniques
.... .. .. ........... .. . .. ........ . . .. . . ... Section 15
ASSEMBLY, INSTALLATION, AND ALIGNMENT, OF OPTICS
For each of these procedures, use the instructions given under the s ame heading In Section 601 this
User
's Guide, "DISTANCE MEASUREMENTS".
MEASUREMENT DISPLAY SETTINGS, SENSOR USE
Selecting " Measurement Units"
The Measurement Display c an give you your measurement results in either " English" (inches,
degrees Farenheil, etc. ) or "Metric" ( mm , degrecs Celsius, et c.) units. You make the se lection by
selling the toggle switch
on the Measurement Display unit' s rear panel. ( See Section 16 ,
"Controls, Connectors, and Indicators ".)
The togglc switch is the " locking" type. To change thesening of the rear-panel " English/ Metric "
toggle swilch -
1. Gently pull the switch handle " OUI", along its current pos ition .
2. Move the switch le ver to the po s ition for the units you want to use .
3. Release the swilCh handle; this w ill allow it to lock at the new s elling
When you are entering data via the Measurement Display unit' s keyboard, remember to enter
values appropriate for the measurement unit s you have selected; also, you c an 't mix "English"
and " Metric" units (inches and degrees Celsius, for example ).
To pro vide your la s er M easurement System with information if needs to know about the
env ironmental c ondition s at the time of measurement, use the appropriate pro cedure below,
de pending on whether or not you ha ve one or more sens or s connected 10 the Measurement
Display unit.
