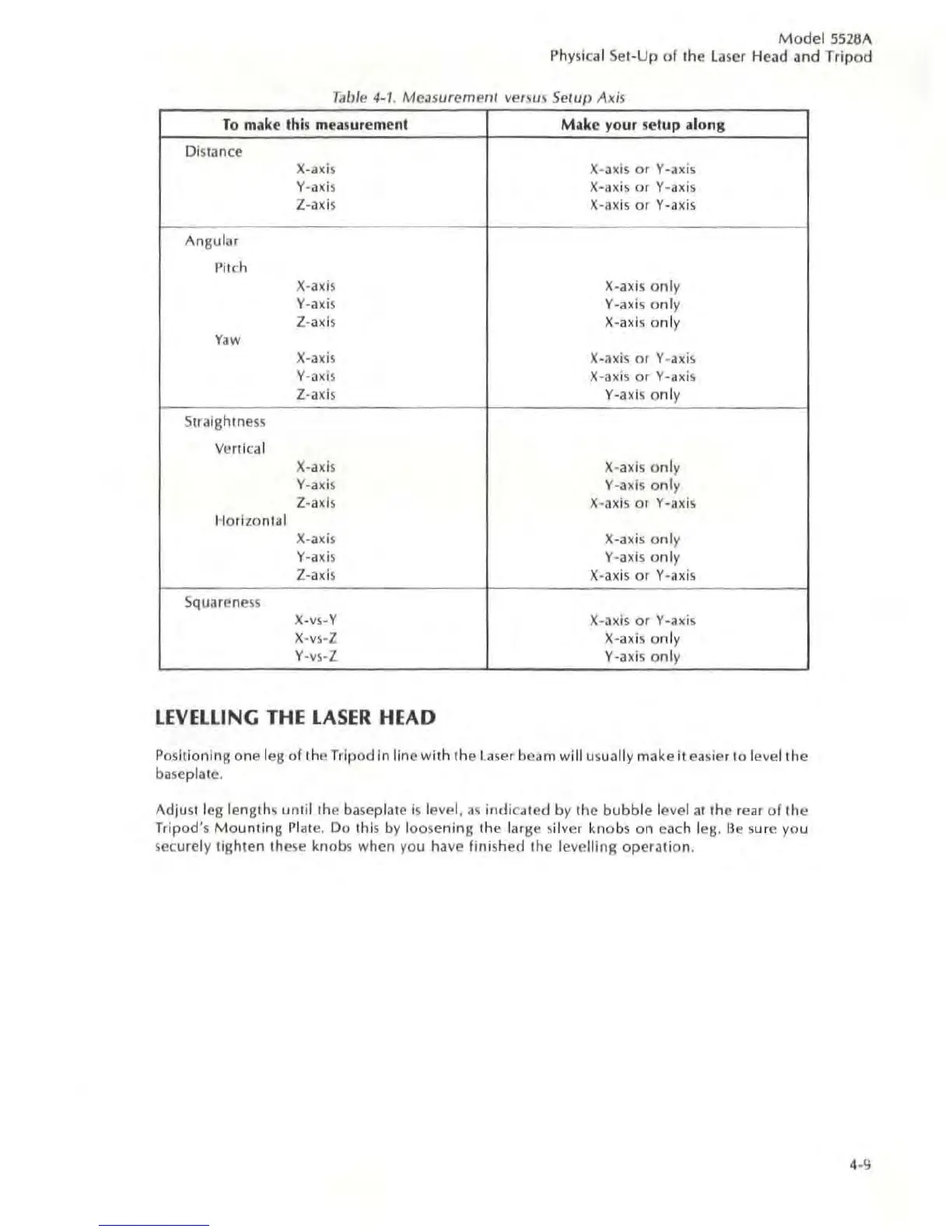

Mode l 5528A
Ph ysic al Se t· Up of the la ser Head and Tripod
Table 4·1. Mcasureme nf ve rs us SelUp Axi s
To make this m eas urement Make your setup along
Distance
X-axis X-
axis or Y-axis
Y-ax is X- ax is or Y- axis
Z-a xi s
X-ax is or Y-axis
Angular
Pitch
X-axis X-ax is only
Y- axis
Y-ax is only
Z-axis X·axis only
Yaw
X-ax is X-axis or Y·axis
Y-axis
X-axis or Y-axis
Z·axis
Y-axis only
Straigh
ln ess
Ve rti ca l
X-axis X·axis only
Y·ax is
Y·axis
only
Z-axis X-axis or Y-axis
Hori zontal
X-axis X-ax is only
Y·axis
Y-ax is only
Z-a xi s X-ax is or Y·axis
Squa ren ess
X-vs-Y
X-axis
or V·axis
X-vs-Z
X-axis only
V·
vs -Z
V-axis only
LEVElliNG THE LASER HEAD
P os iti oning one les of the Tripod in line wit h the laser beam will usually make It easier 10 leve llh e
ba seplate.
Adiust leg lengths unlil the baseplate is level, as indicated by the bubble level at the rear of the
Tripod's
Mounting Plat e. Do this by loose nin g the lars e silver knobs on each les . Be s ur e you
securely tighten these knobs when you ha ve finished the levelling ope ra ti on.
4·Y
