Model 5528A
In te r connectio ns, Turn-On
5-12

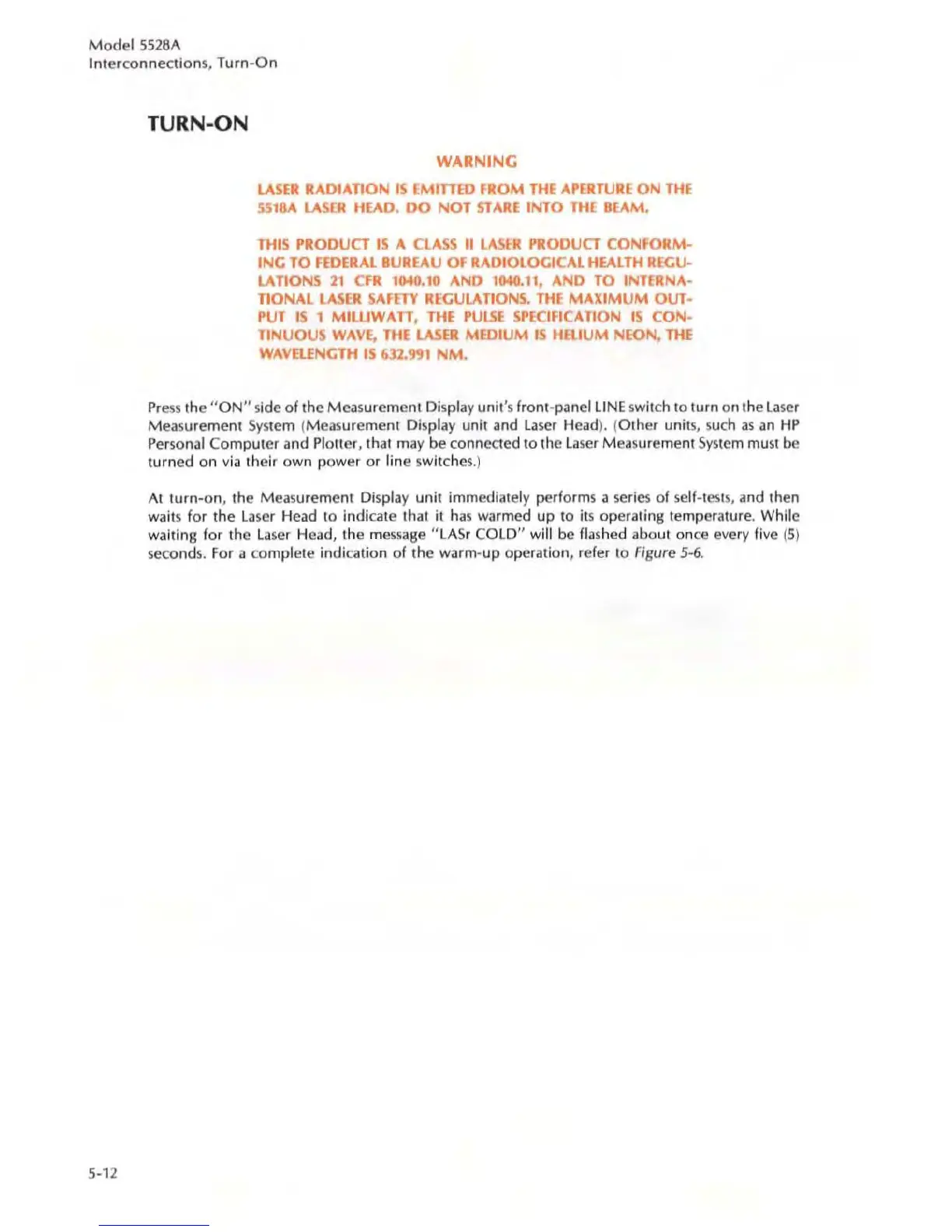

TURN-ON
WARNING
LASER RADIATION IS EMlnED fROM THE APERTURE ON THE
5518A LASER HEAD. DO NOT STARE INTO THE BEAM.
THIS PRODUCT IS A CLASS II LASER PRODUCT CONFORM-
ING TO FEDERAL BUREAU OF RADIOLOGICAL HEALTH REGU-
LATIONS 21 CFR 1040.10 AND llMO.11, AND TO INTERNA-
TIONAL lASER SAFETY REGULATIONS . THE MAXIMUM OUT-
PUT IS 1 MllLlWAn, THE PULSE SPECifiCATION IS CON-
TINUOUS
WAVE, THE LASER MEDIUM IS HELIUM NEON, THE
WAVELENGTH IS 6 32.991 NM.
Press the "ON" si de of the Measurement Di s pl ay unit's front-panel LI NE sw it ch to turn on the laser
Measurement
System (Measurement D is pl ay unit and laser Head). ( Other units, such as an HP
Personal Computer and Plotter, thai may be connected to the Laser Measurement System mu st be
turned on v ia their own power or lin e sw it ches .)
At turn-on, th e Measurement Display un it immed iat ely performs a series of se lf -tests, and then
w
ai ts for the la ser H ead to indicate that it has warmed up to it s operating temperature. While
waiting for the
la ser H ea d, th e message "lASr CO LD " will be fla shed about once every fi ve (5)
seconds. For a com pl ete indication of the warm-up operat io n, refer to Figure 5-6.
