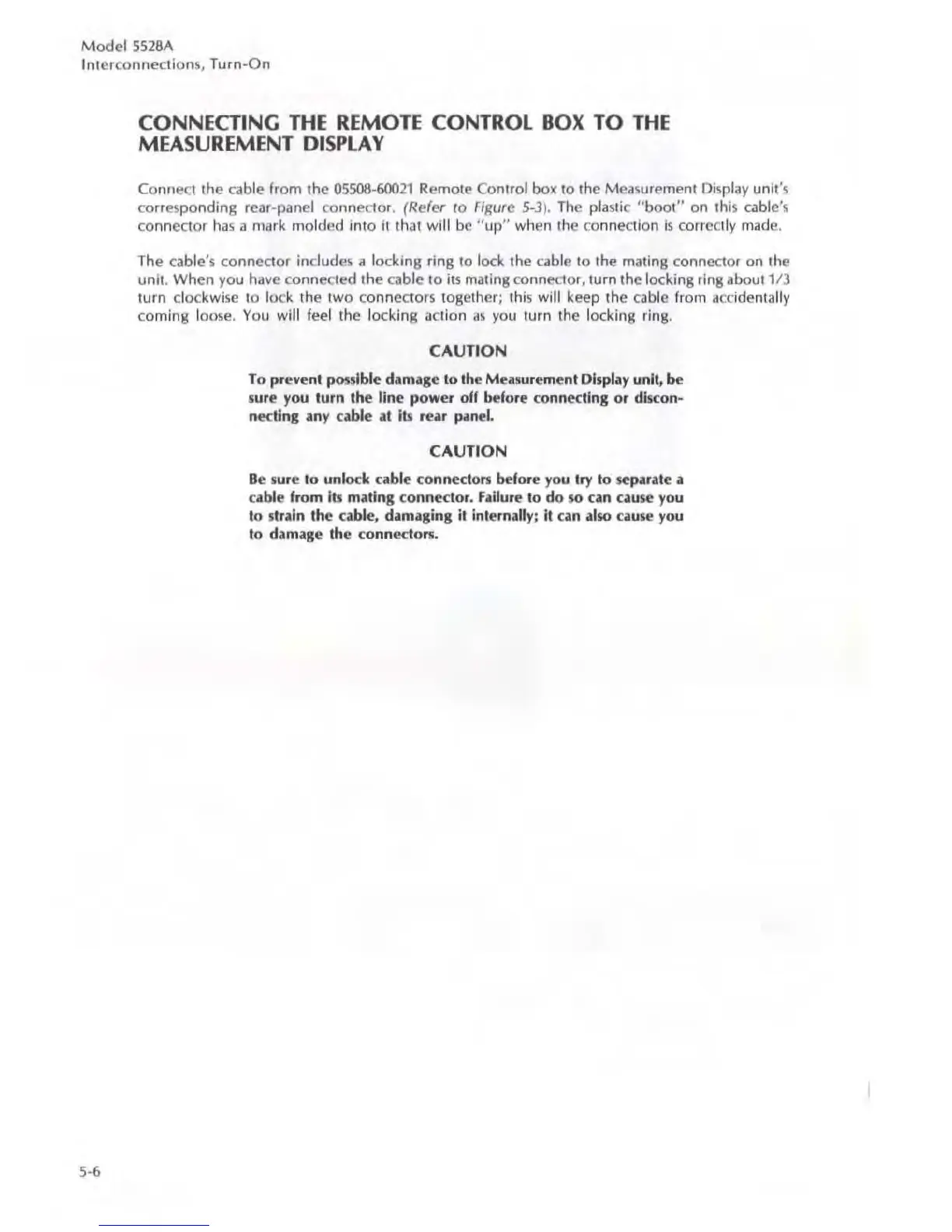

Model
5528A
Inlerconnections,
Turn-On
5-6
CONNECTING
THE
REMOTE
CONTROL
BOX
TO
THE
MEASUREMENT
DISPLAY
Connect the cable from the
05508-60021
Remote Control box to the Measurement Displ
ay
unit
's
corresponding rear-panel connector. (Refer 10 Figure
5-3
).
The
plastic
"boo
t" on th
is
ca
b
le
's
connector
has
a mark molded
inlo
it thilt will
be
;'up"
when
th
e connection is
co
rr
ec
tl
y
made
.
The cable's connector includes
a locking ring to lock the cable to the m
at
ing connector on the
unit. When you have connected the cable
to
its maling connector, turn the locking ring abouI1I3
turn clockwi
se
to lock the two connectors together; Ihis will keep the cable from accidentally
corning
l
oose.
You
will
fe
el the J
oc
king action
as
yo
u turn the l
oc
king ring.
CAUTION
To
prevenl possible damilge to Ihe Measurement
DlspJil)'
unll, be
sure you
IUrn
the line power
off
before connecting or dlscon-
necling
any cable at its rear panel.
CAUTION
Be sure
to
unJock cable connectors before you Iry
to
5eJNrate
il
cable from its mating conneclor.
hilure
to
do
so can
Ciluse
you
to strain the
Cilble,
damasing
it
internillly;
It
can also cause you
to damage the
connt..octors.
