HP 5528A User Manual

Model 5528A
First l ook
2-12
OPERATION

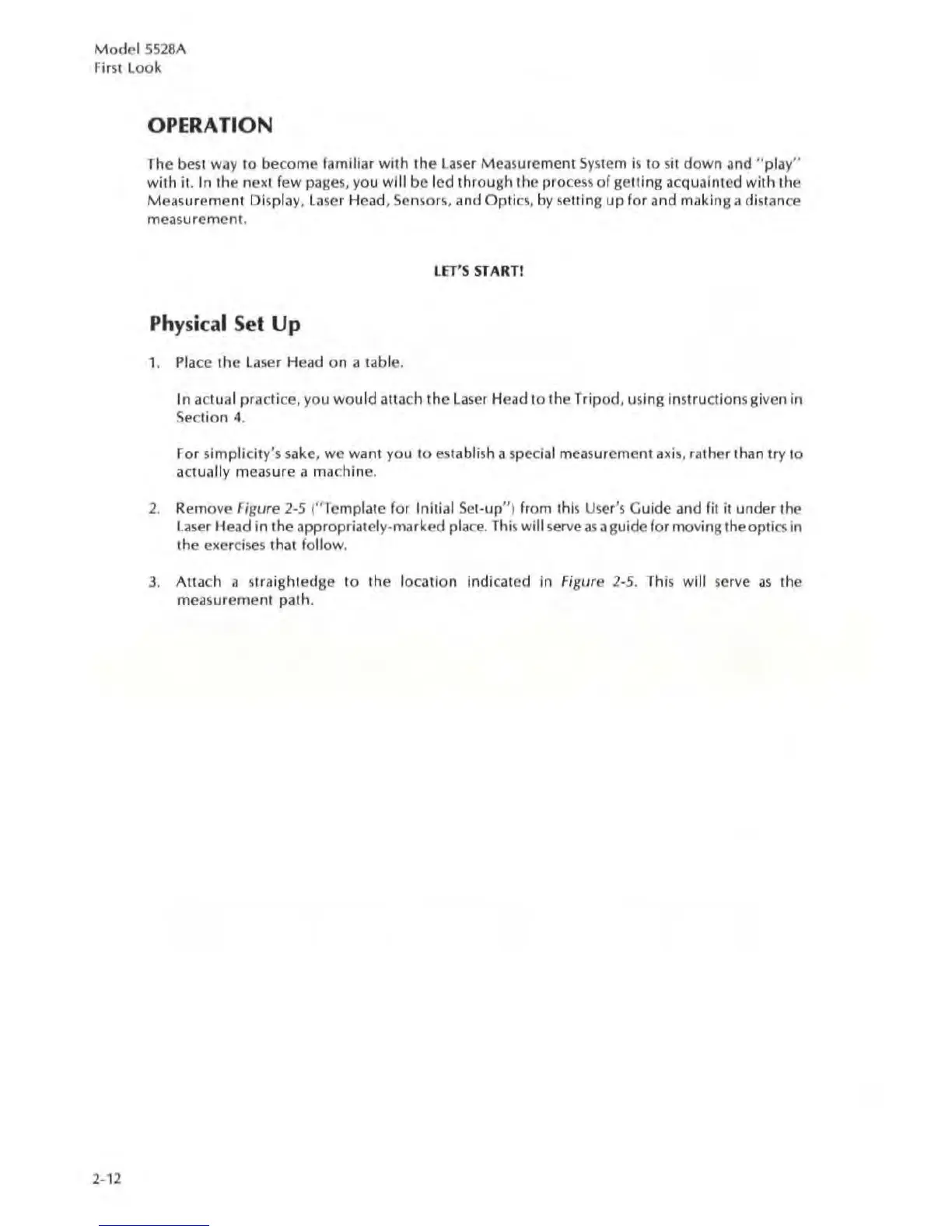

The best way to be come famil ia r with the la ser Meilsuremenl System is to si t down and " play"
with it. In the next few pages, you will be l ed throu gh the pro cess of gelling ac quainted with the
Measurement Display, la ser Head, Sensors, and Op ti cs, by setting up for and making it di stance
measurement .
L ET'S S TAR T!
Physical Set Up
, . Pla ce the la ser H ea d o n a table.
In actual pnlctice, you would attach the la ser Head to the Tripod, using instructions given in
Secti on 4.
For simp
li ci ty's sake, we wa nt you to estab li sh a special meas ur eme nt axis, rather than try to
actually meas
ure a ma chine.
2. Remove Figure 2·5 ("Template for In i tial Set-up") from t hi s User's Guide and fit it under the
la ser Head in the appropriatel y- mark ed place. This wil l serve as a guide for mov in g theopties in
the exercises that fo ll ow.
3. Allach a st rai g hted ge to th e loca ti on indicated in Fi gure 2- 5. This wil l serve as the
measurement path .
