HP 5528A User Manual

Mode l 55281\
Alignment Technique s
ROTATE ANYTIME RETURN DOT
IS NOT ON EXIT PORT.
RETURN
DOT
1
L
RETURN DOT
TRANSLATE ONLY IF BEAM IS
NOT
CENTERED ON YOUR
AUTOREFLECTING
SURFACE.

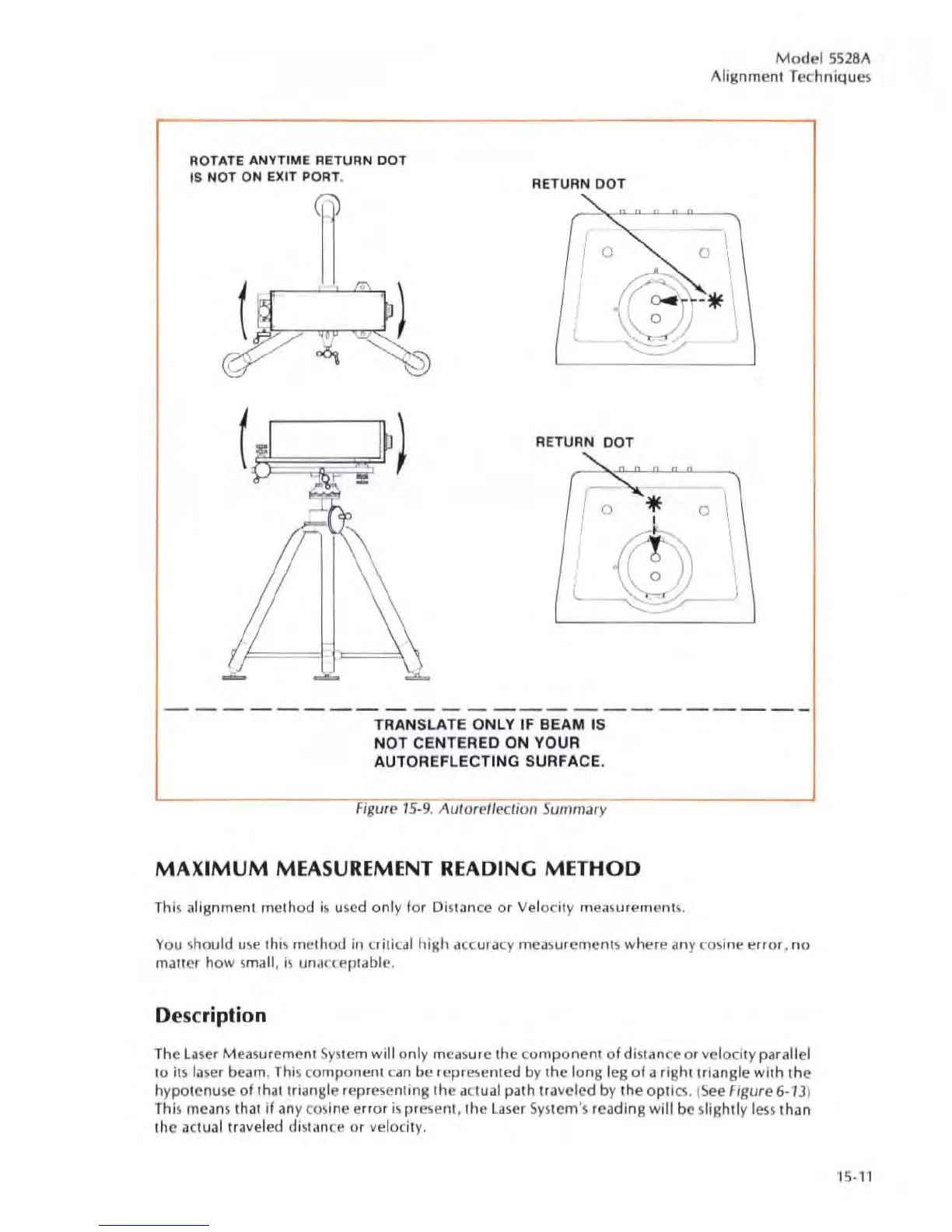

Figure 15-9. Auforellecfion Summary
MAXIMUM MEASUREMENT READING METHOD
Thi s alignrnenl method is us ed only for Di stance or ve lOcity measurements.
You should use thi s method in c ri ti c al high accura cy meas urement s wh ere any cosine error , no
matter how small , is unacceptable.
Descriplion
Th e la s er Measurement System will only meas ure the c omponent of distance or velocity parallel
to its laser beam. Thi s c omponen t can be repr esen ted by the long l eg of a right tr iangle with the
hypotenuse of that triangle representing the actual path trav eled by the opti cs. ~ See Figure 6- 13 1
This means that if an y cosine error is present, the laser Sy s tcm 's reading will be s li ghtly less than
thc
actual !raveled di stance or velocity.
15- 11
