2: P RODUCT S PECIFICATIONS
2-152 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722

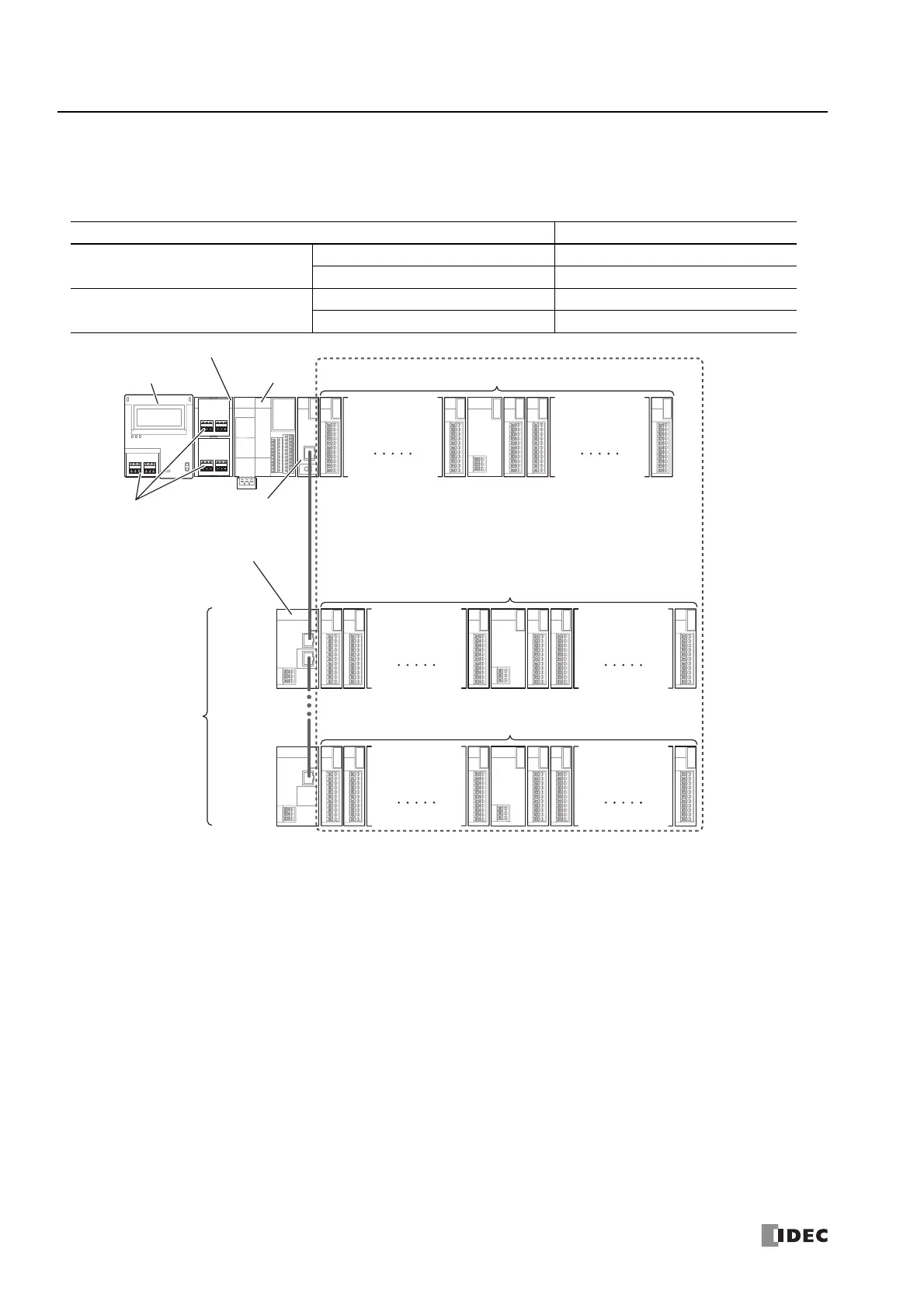

Maximum I/O Points When Using Expansion Interface Modules (Remote Master/Slave)
The following table gives the number of digital I/O points and analog I/O points when expansion interface modules (remote
master/slave) are connected to the Plus CPU module and the maximum number of expansion modules and cartridges are
connected to the system.
Notes:
 I/O refresh time of the expansion interface remote master/slave modules is stored in D8618 (Refresh Time of Expansion Interface Remote
Master/Slave Modules Current Value) and D8619 (Refresh Time of Expansion Interface Remote Master/Slave Modules Maximum Value).
When the outputs status are changed in a shorter time than the I/O refresh time of the expansion interface remote master/slave modules,
the outputs status may be reflected to the actual outputs. Make sure that the outputs are controlled in a longer time than the I/O refresh
time of the expansion interface remote master/slave modules.
 The expansion interface master/slave modules cannot be connected over the Ethernet switch.
I/O Maximum No. of I/O Points
Digital I/O
Input 2,044
Output 2,044
Analog I/O
Input 511
Output 258
Maximum number of expansion modules: 63
Maximum number of expansion cartridges: 3
Expansion Modules (13 maximum)
Expansion Modules
(63 maximum)
Plus CPU Module
HMI Module
Cartridges
(3 maximum)
Cartridge Base Module
Expansion Modules (15 maximum)
Expansion Interface
Remote Master Module
(FC6A-EXM1M)
Expansion Interface
Remote Slave Module
(FC6A-EXM1S, FC6A-EXM1S4)
Expansion Modules (15 maximum)
Expansion Interface
Remote Slave Module
(FC6A-EXM1S,
FC6A-EXM1S4)
(10 maximum)
Node 0
Node 1
Node 10
