12: MODULE CONFIGURATION EDITOR
This chapter provides a description of the Module Configuration Editor that can be used to configure expansion modules and
cartridges.
Module Configuration Editor Overview
The FC6A Series MICROSmart is capable of using the expansion modules and cartridges described in "Product Specifications" on
page 2-1. To use expansion modules and cartridges, they must be configured to connect to the FC6A Series MICROSmart using the
WindLDR Module Configuration Editor.
Module Configuration Editor Structure

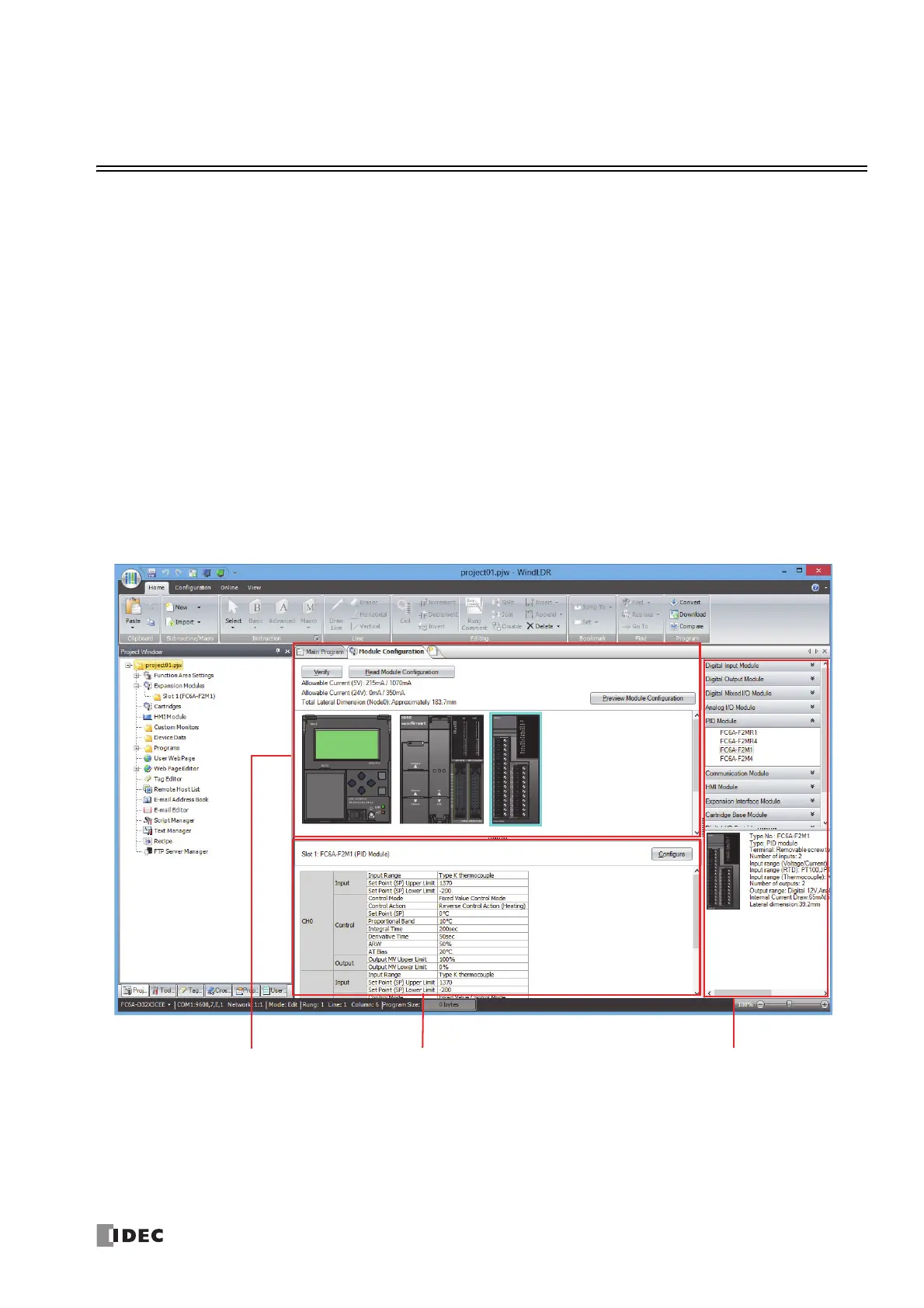

The Module Configuration Editor is composed of the following three areas.
The module configuration that will be used is created by selecting the expansion modules and cartridges to use in the expansion
modules and cartridges list and dragging and dropping them to the module configuration area.
Module configuration area : Displays the configuration of connected expansion modules and cartridges.
Expansion modules and cartridges list : Displays a list of expansion modules and cartridges that can be connected to the FC6A
Series MICROSmart.
Parameter reference area : Displays the parameters that are configured for the expansion modules and cartridges.
Parameter Reference Area Expansion Modules and Cartridges ListModule Configuration Area
