CPU Module
All-in-One CPU module/CAN J1939 All-in-One CPU module
The All-in-One CPU module is equipped with analog input and serial ports (RS-232C/RS-485). CAN J1939 All-in-One CPU module is
equipped with a CAN port.
Part Names and Functions

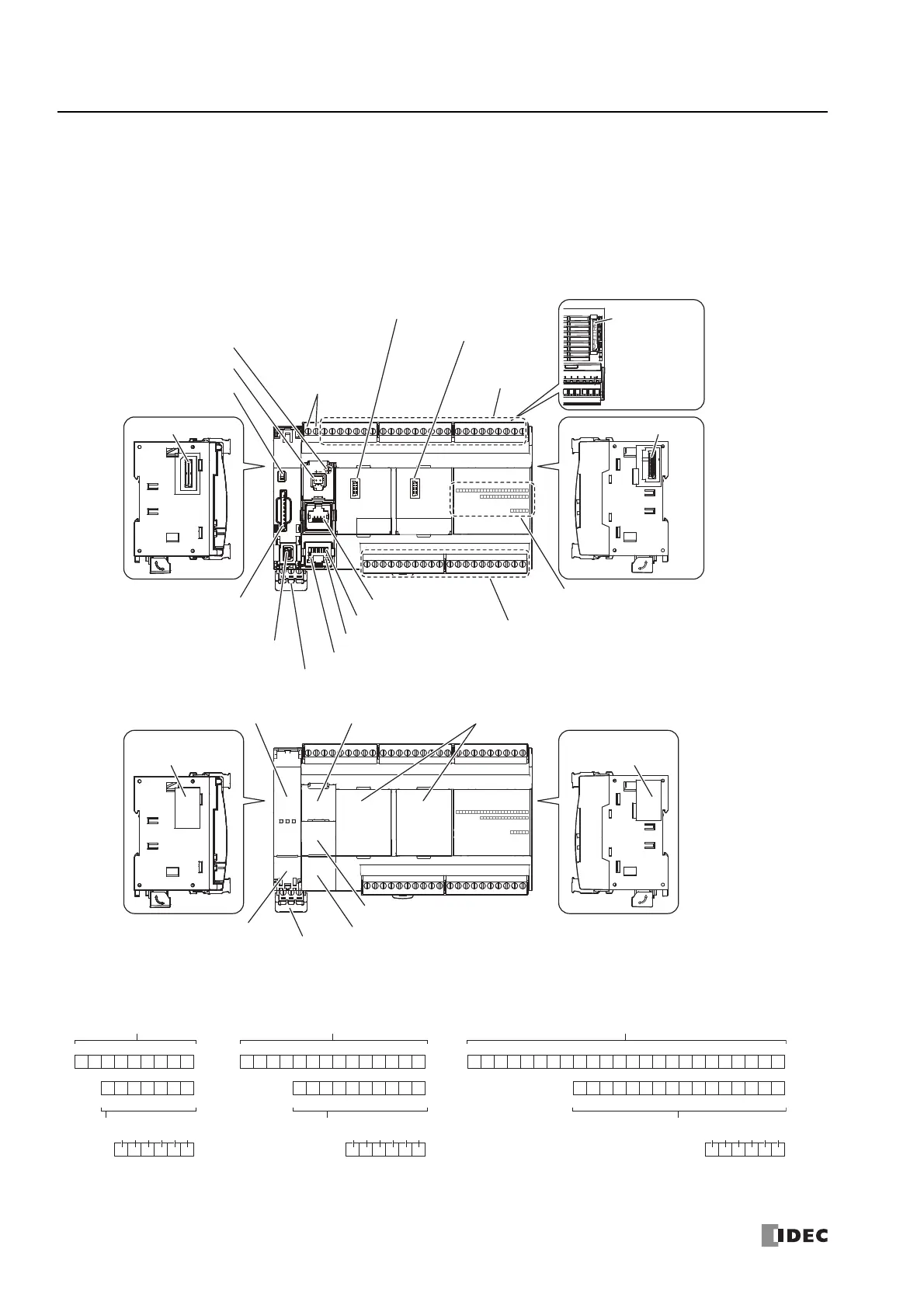

■ All-in-One CPU module
Example: FC6A-C40R1AE
The content in brackets is the LED indicator name on the FC6A Series MICROSmart.
LED Indicators
(23) Communication Connector
(24) Function Switch
(25) Analog Input
(2) Cartridge Slot 1
(22) SD Memory Card Slot
(21) USB Port
(20) Power Supply Terminals
(17) Ethernet Port 1
(19) ACT LED
(18) LINK LED
(16) Serial Port1
(15) Output Terminals
(4) Input Terminals
(1) Sensor Power Terminals
(Not used with DC power
supply types.)
(6) Expansion Connector
(5) Battery Holder
(26) Analog Potentiometer
(3) Cartridge Slot 2
Top
Right SideLeft Side
(7) Input LEDs [IN]
(8) Output LEDs [OUT]
(9) Power LED [PWR]
(10) Run LED [RUN]
(11) Error LED [ERR]
(12) SD Memory Card Status LED [SD]
(13) Battery Status LED [BAT]
(14) Status LED [STAT]
(29) Dummy Cartridges
(34) USB Port Cover
(33) Power Supply Terminals Cover
(31) Serial Port 1 Cover
(32) Ethernet Port 1 Cover
Right SideLeft Side
(35) Communication
Connector Protection Sticker
(30) Expansion Connector
Protection Sticker
(27) SD Memory Card Cover (28) Analog Port Cover
OUT
01234567
10 11 12 13 14 15 16 17
01234567 10 11 12 13 14 15 16 17
20 21 22 23 24 25 26 27
IN
PWR RUN ERR SD BAT STAT
OUT
01234567
10 11 12 13 14 15
01234567 10 11
IN
PWR RUN ERR SD BAT STAT
OUT
01234567
10
0123456
IN
PWR RUN ERR SD BAT STAT
16-I/O Type 24-I/O Type 40-I/O Type
(14)
(7)
(13)(12)(11)(10) (9)
(8)
(14)
(7)
(13)(12)(11)(10) (9)
(8)
(14)
(7)
(13)(12)(11)(10) (9)
(8)
