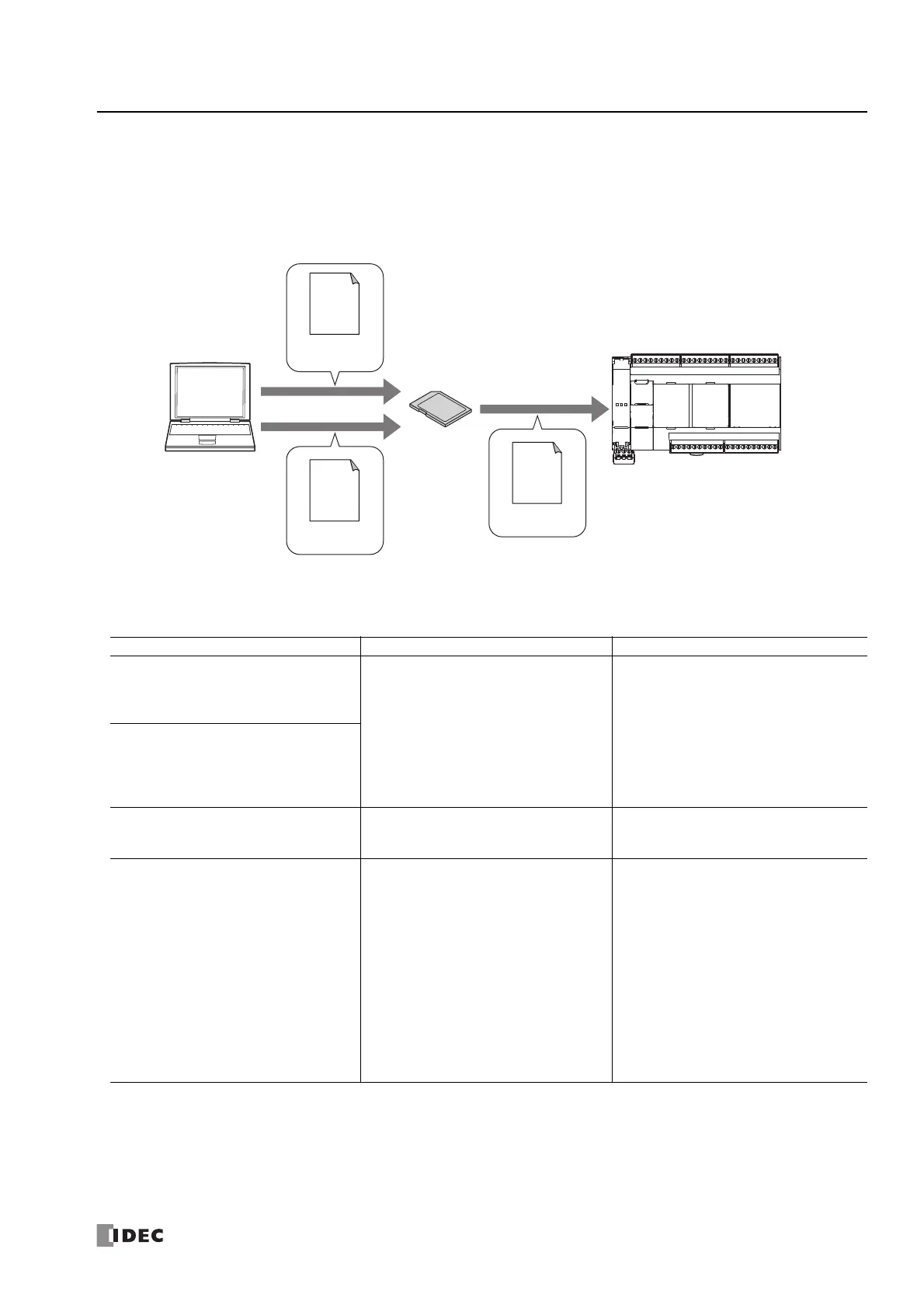

11: SD M EMORY C ARD
Download from SD Memory Card
The user programs, program comments, and CPU module system software can be downloaded to the CPU module using the SD
memory card. The basic settings for MQTT communication can also be downloaded to the CPU module.
Download the Project Being Edited as a ZLD File
A ZLD file can be created from the project opened in WindLDR, and it can be downloaded to the CPU module.
While the ZLD file saved to the SD memory card is being downloaded, CPU module operation stops. When the ZLD file is set to
download the CPU module system software, the software is reset in order to rewrite the system software.
The ZLD file saved to the SD memory card can be downloaded by performing the following operations.
*1 The ZLD files that can be selected with the system menu on the HMI module are only those in the PROGRAM folder, and the maximum is 20
files. If there are 21 or more files in the PROGRAM folder, no ZLD file can be selected.
Data that is not saved to a ZLD file will not be downloaded. If the same data as the ZLD file is already in the CPU module, that data
will not be downloaded.
Operation Action When the CPU Module is Write Protected
The CPU module power is turned on when an
SD memory card with an autoexec.ini file
that executes a download has been inserted
in the SD memory card slot.
The ZLD file specified by the autoexec.ini file
is downloaded to the CPU module.
The ZLD files saved to the
\FCDATA01\PROGRAM\ folder are eligible to
be downloaded.
The download is performed if the password
matches the write protection password set for
the ZLD file to be downloaded specified by the
autoexec.ini file.
The download is not performed if the
passwords do not match.
Special internal relay M8250 is turned on
when an SD memory card with an
autoexec.ini file that executes a download
has been inserted in the SD memory card
slot.
An SD memory card with an autoexec.ini file
that executes a download is inserted in the
SD memory card slot.
The download is not performed. The download is not performed.
A download is executed with the system
menu on the HMI module.
For details, see "Downloading the User
Program (SD memory card –> CPU module)"
on page 7-45.
The ZLD file specified with the system menu
on the HMI module is downloaded to the CPU
module.
The ZLD files saved to the
\FCDATA01\PROGRAM\ folder are eligible to
be downloaded.
*1
 The download is executed even if there is
no autoexec.ini file on the SD memory
card.
 Even if there is an autoexec.ini file on the
SD memory card, the parameters are not
read from it. For details, see "Creating the
autoexec.ini File" on page 11-31.
The download is performed if the password
matches the password entered with the HMI
module.
The download is not performed if the
passwords do not match.
FC6A Series MICROSmart
Computer
(WindLDR)
Download
Save
Save
SD Memory Card
autoexec.ini
File
ZLD File
ZLD File
