11: SD M
EMORY
C
ARD
11-8 FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722
Recipe Function
This section provides an overview of the recipe function and describes the WindLDR settings.
Recipe Function Overview
The recipe function (or recipes) batch writes values prepared in advanced to specified devices and batch reads the values of
specified devices according to the state of a device. Use this function for situations such as configuring the initial values of an
external device when starting operation.
Recipe Settings Configuration

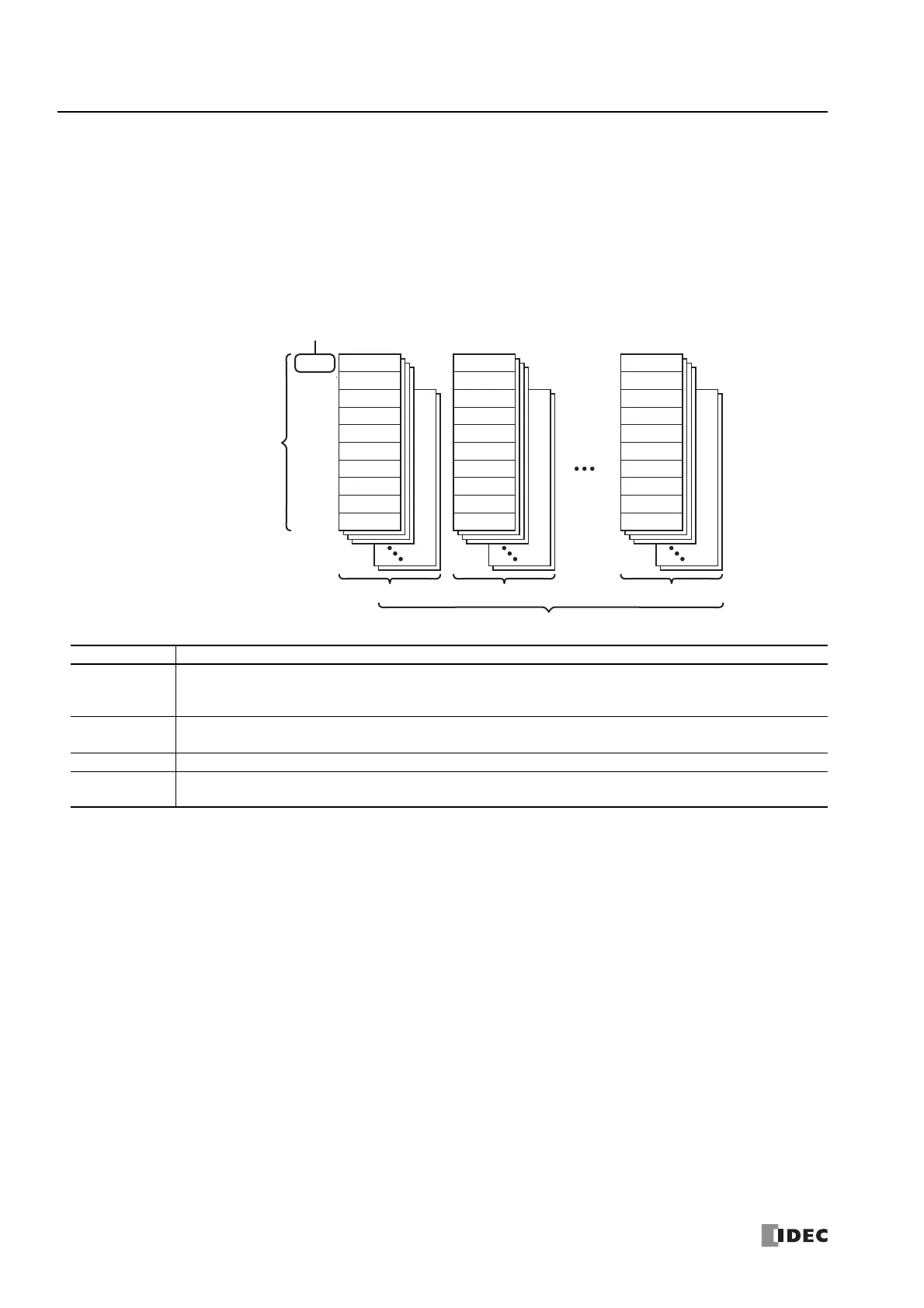

The settings that are used with the recipe function are called recipe settings. The recipe settings configuration is as follows.
Note: If number of data is set to the maximum value (8,192 words), a user program capacity of approximately 16,000 bytes per channel is used.
For the capacity of user programs that can be used, see Chapter 5 "User Program Capacity" on page 5-70.
Terminology Description
Block
The operation that uses recipe data is configured in blocks. A maximum of 64 blocks (1 to 64) can be configured, and each
block is made up of 16 channels (0 to 15). (There are locations where these blocks are referred to as recipe blocks in order
to avoid confusion with other expressions.)
Channel
The devices and data that are the write destination or read source are set in channels. One first device can be set per
channel.
First device The device that is the start of the read source or write destination devices for recipe values.
Number of Data
The amount of data configured for one channel. Data can be set for device addresses a maximum of 8,192 continuous
words from the first device that was set.
6666
7777
8888
9999
11111
1111
2222
3333
4444
5555
D0005
D0006
D0007
D0008
D0009
D0000
D0001
D0002
D0003
D0004
600
700
800
900
1000
100
200
300
400
500
106
107
108
109
110
101
102
103
104
105
First Device
Block 1
Channel 0 Channel 1 Channel 15
Number of Data
To Next Page
