IDEC MICROSmart FC6A Series User Manual

2: P RODUCT S PECIFICATIONS
2-164 FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722
Cartridges
Three types of cartridges are available for the FC6A Series MICROSmart: digital I/O cartridges that expand the number of digital
inputs or outputs, analog I/O cartridges that expand the number of analog inputs or outputs, and communication cartridges that
expand RS-232C communication ports, RS-485 communication ports, or Bluetooth communication ports.
Digital I/O Cartridges
Digital I/O cartridges expand the system with four digital inputs or outputs. Those cartridges can be connected to cartridge slots
on the All-in-One CPU module, CAN J1939 All-in-One CPU module, the cartridge base module, or the HMI module. For details on
digital cartridges, see "Digital I/O Cartridge" on page 10-1.
Digital I/O Cartridge Specifications

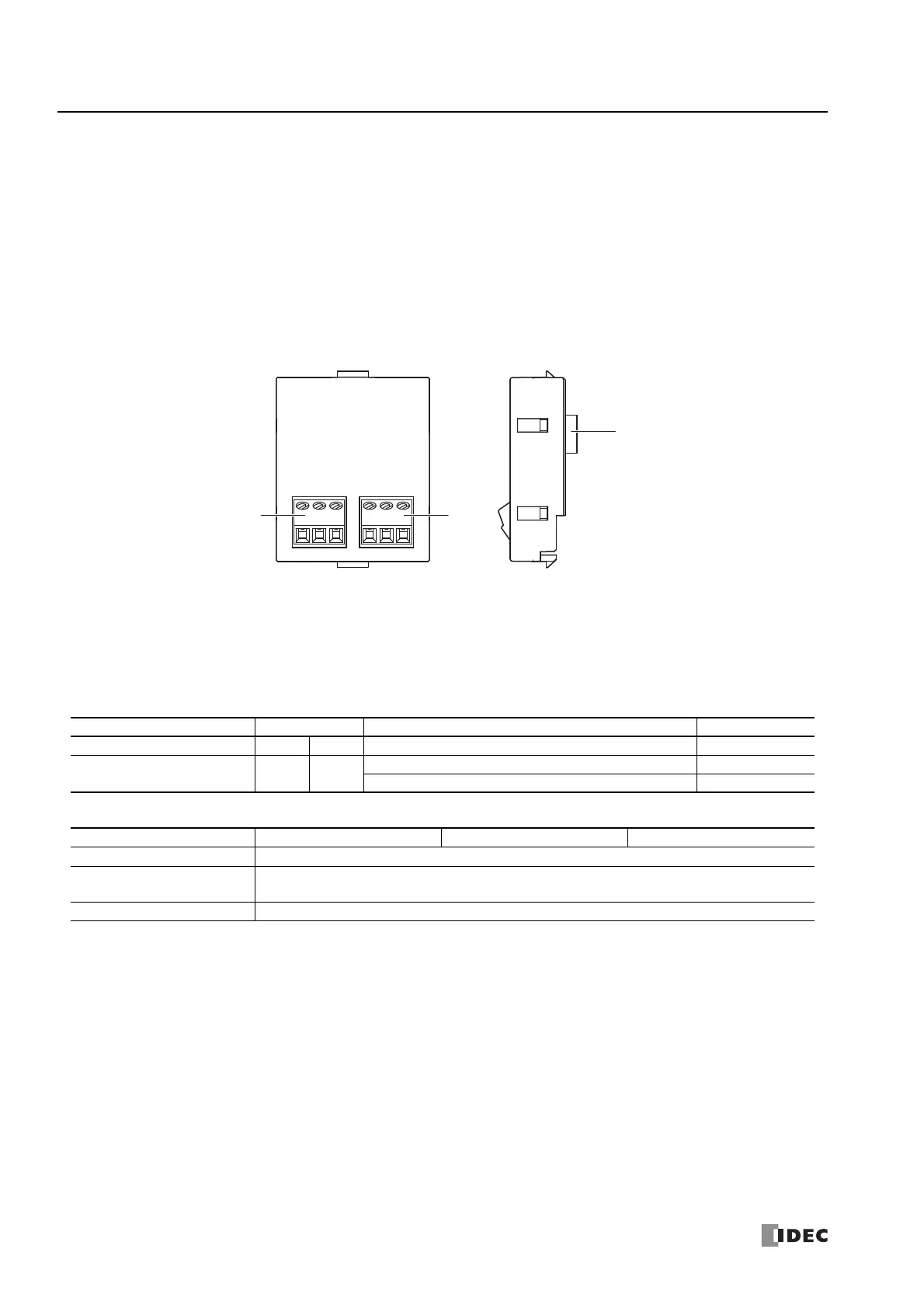

Part Names and Functions
(1) Terminals
These terminals connect the cartridge to the power supply and to input or output devices. The devices that can be connected
differ by the type of digital I/O cartridge.
(2) Connector
This connector connects the cartridge to Cartridge Slot 1 or 2 of the All-in-One CPU module or the cartridge base module.
Model List
Function Specifications
Cartridge Type I/O Points I/O Signal Type No.
Digital input cartridge Input 4 DC input (shared sink/source): 12/24V DC FC6A-PN4
Digital output cartridge Output 4
Transistor sink output: 12/24V DC FC6A-PTK4
Transistor source output: 12/24V DC FC6A-PTS4
Type No. FC6A-PN4 FC6A-PTK4 FC6A-PTS4
Rated Power Voltage 5.0 V, 3.3 V (supplied from CPU module)
Current Draw
5.0 V: 0 mA
3.3 V: 35 mA
Weight 15 g
(1) (1)
(2)
