7: HMI FUNCTION
Introduction
This chapter describes the functions that can be used with the HMI module connected to the CPU module and their operating
procedures.
HMI Function Overview
This section describes an overview of the HMI module and functions that can be used.
The HMI Module
With the HMI module, you can run and stop the user program, monitor and modify device values, and configure the environment
settings on the FC6A Series MICROSmart without using WindLDR by using the HMI module LCD and operation buttons on the
module. With Ethernet communication, the web server function and the send e-mail function can be used. The HMI module can
also relay CPU module Ethernet communication using a maximum of eight connections.

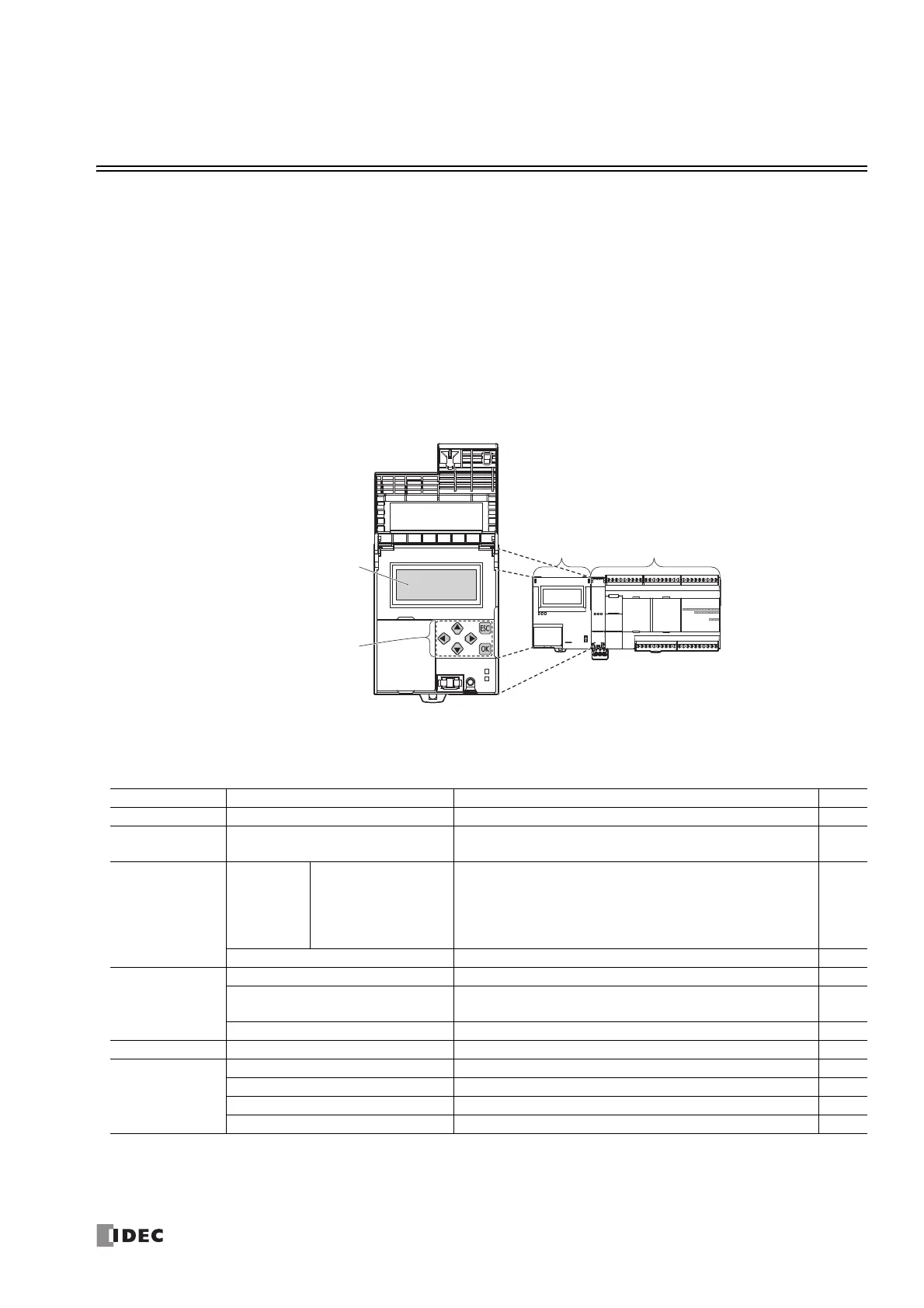

HMI Functions List
■ System menu functions
The following functions can be used with the HMI module's LCD display function and button operations.
CPU ModuleHMI Module
LCD
Operation Buttons
Stopped
2015/DEC/01/TUE
13:30:40
Type Function Description Reference
Run/stop Operation Switching run/stop Switches the program run status (RUN/STOP). 7-9
Edit Program
Confirming/Clearing changed timer/
counter preset values
Change timer/counter preset values or writes them to the user
program in the ROM.
7-10
Configurations
Environment
Settings
Slave Number/
Network Settings/
Message Scroll/Blink
Menu Language/
LCD Backlight ON Time
Some of the function area settings (slave number, network settings,
message scroll speed, scroll unit, blinking speed, and LCD backlight
ON time) can be modified.
The system menu language can also be changed.
7-12
Calendar/Clock Configures the calendar/time for the internal clock. 7-31
Monitors
Device Monitor Displays/modifies the specified device values. 7-32
Status Monitor
Displays the system software version, operating status, scan time,
protection status, and network settings.
7-35
Error Monitor Allows you to check errors that have occurred. 7-38
Message Display Message Display Displays the screen configured by the MSG instruction on the LCD. 7-40
SD Memory Card
Stop Access Stops access to the SD memory card in order to remove it. 7-41
Format Formats the SD memory card. 7-42
Recipe Operations Recipe files can be read from and written to the SD memory card. 7-43
Downloading/Uploading User Programs The user program can be downloaded and uploaded. 7-45
