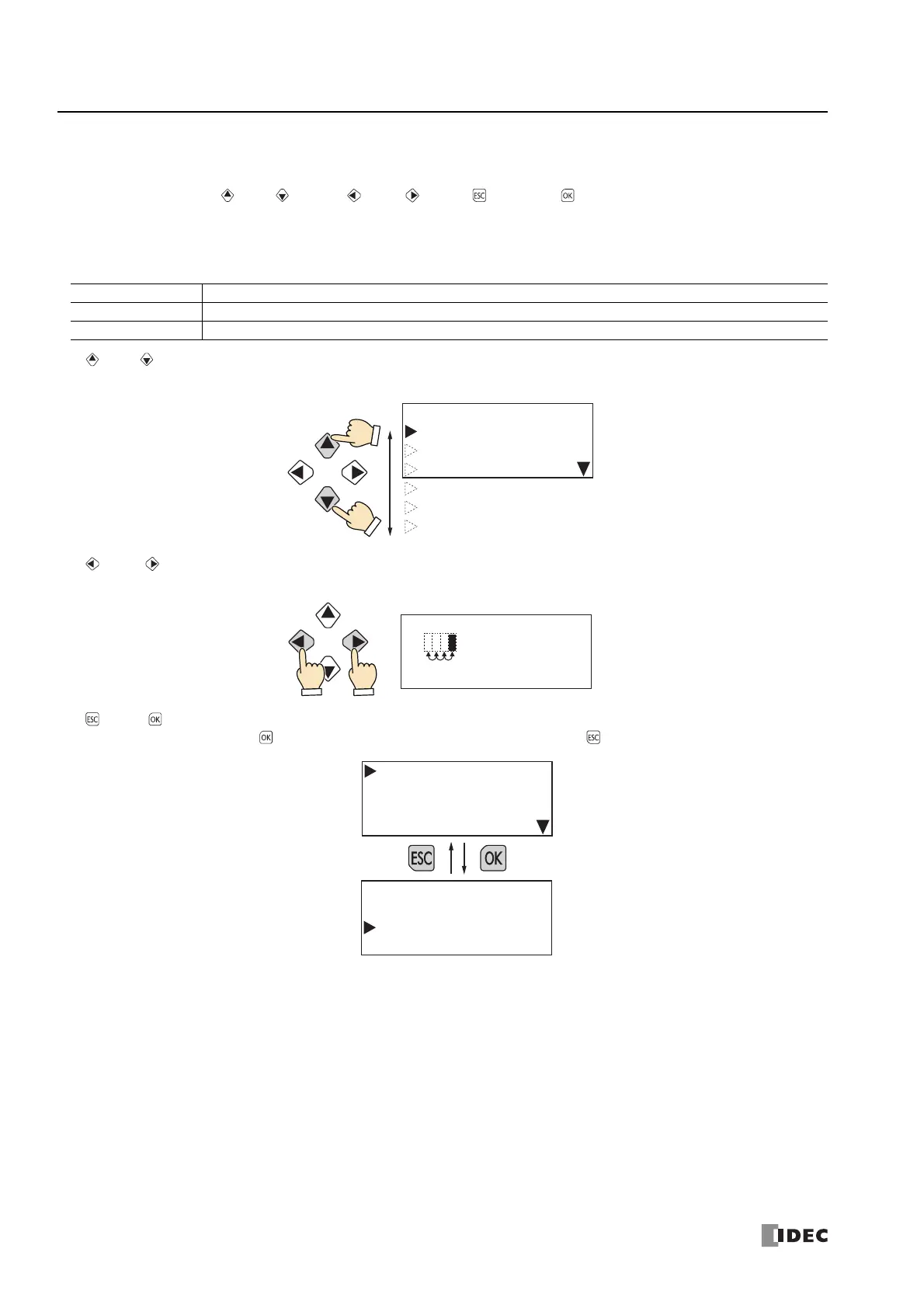

Basic Operations
This section describes basic operation methods for the HMI module buttons.
The HMI module has the (up), (down), (left), (right), (ESC), and (OK) buttons, and these buttons are used
to operate the screens displayed on the LCD.
Pushing the Switches
The operation of the buttons differs by how they are pressed. There are two ways to push the buttons, which are detailed below.
■ (up), (down) buttons
Moves the cursor up and down to select menu items. These buttons are also used to change numeric values.
■ (left), (right) buttons
Moves the cursor left and right. These buttons are also used to move the digit.
■ (ESC), (OK) buttons
Confirm menu items with the (OK) button. Return to the previous screen with the (ESC) button.
Press/Hold Operation
Press The switch is pressed for 0.1 seconds or more and less than three seconds and then released.
Press and hold The switch is pressed for three seconds or more and then released.
Run
Edit Program
External Memory
Configurations
Device Monitor
Status Monitor
Error Status
Backlight ON Time
00010 sec
Do you want to
stop PLC?
No
Yes
Stop
External Memory
Device Monitor
Status Monitor
Return to the
previous screen.
Confirm menu items.
