EN-18 80447162 Rev B

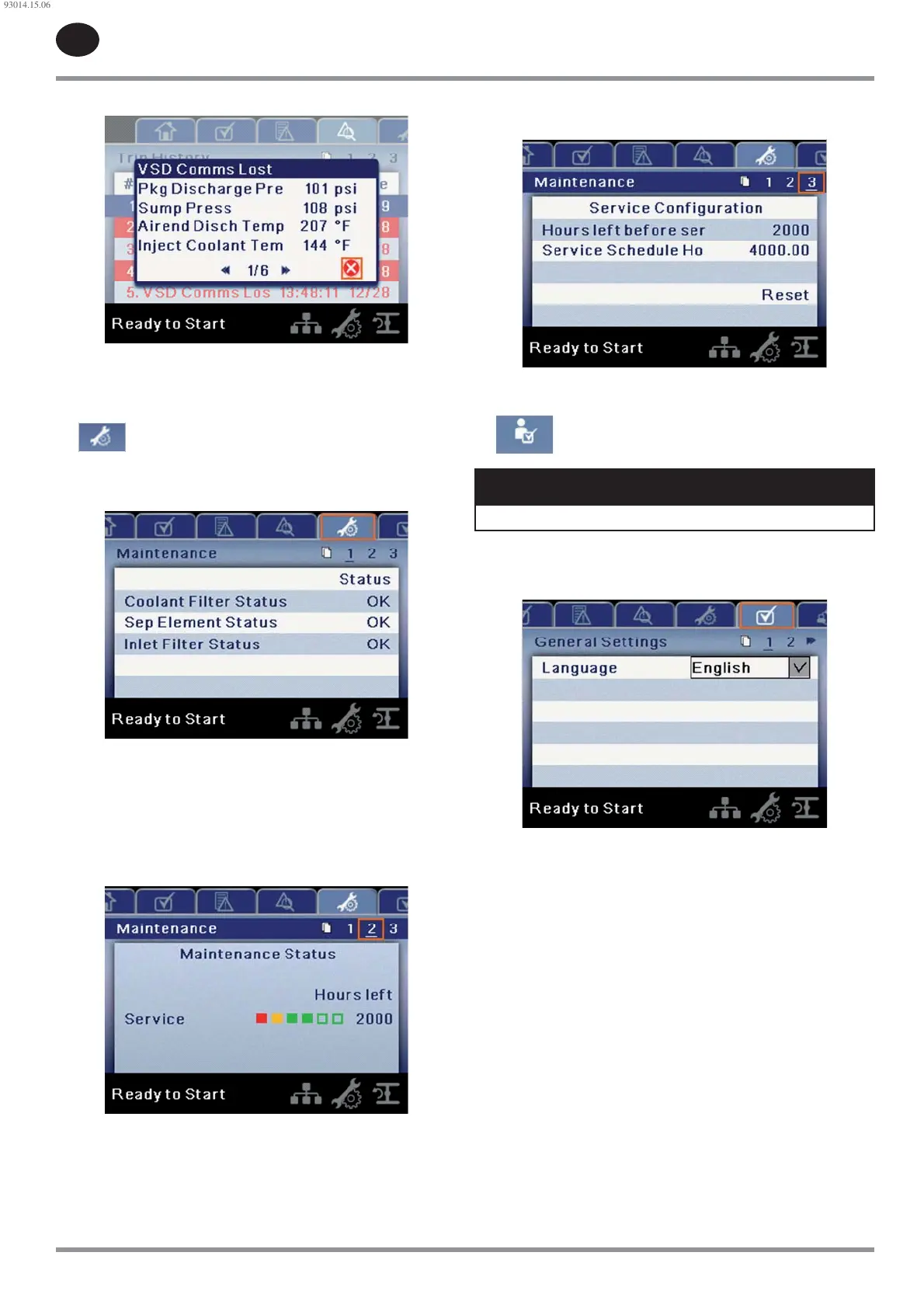

Figure 19 : Trip History Dialog
While the dialog box is active, press the left and right keys in order to scroll
through the displayed data. The name of the trip will always be shown in
the title bar of the dialog box. Press enter when nished viewing the data to
return to the trip history screen.
Maintenance folder
Page 1: Filter Status
Figure 20 : Filter Status
This page displays the following:
Coolant Filter Status
Separator Element Status
Inlet Filter Status
Page 2: Maintenance Status
Figure 21 : Maintenance Status
This page displays the time until the compressor should be serviced.
•
•
•
Page 3: Maintenance Con guration
Figure 22 : Maintenance Con guration
This page allows the user to set the service interval and to reset the counter
after the service has been performed.
General settings folder
NOTICE
All parameters in this folder are adjustable.
Page 1: Language Selection
Figure 23 : Language Selection
Language is selectable from the following 30 choices:
English (default)• Korean•
Bulgarian• Latvian•
Chinese, simpli ed• Lithuanian•
Croatian• Maltese•
Czech• Norwegian•
Danish• Polish•
Dutch• Portuguese•
Estonian• Romanian•
Finish• Russian•
French• Slovak•
German• Slovenian•
Greek• Spanish•
Hungarian• Swedish•
Italian• Thai•
Indonesian•Turkish•
93014.15.06
