Hour Meters indicate the hours that: the controller has been powered up,
and the compressor has been running.
Starts indicate the number of times a start is attempted on the
compressor.
Date & Time is adjustable and con gurable in the GENERAL SETTINGS
folder.
NOTICE
All information on this page is read only.
Pages 3-5: Analog Inputs & Compressor Information

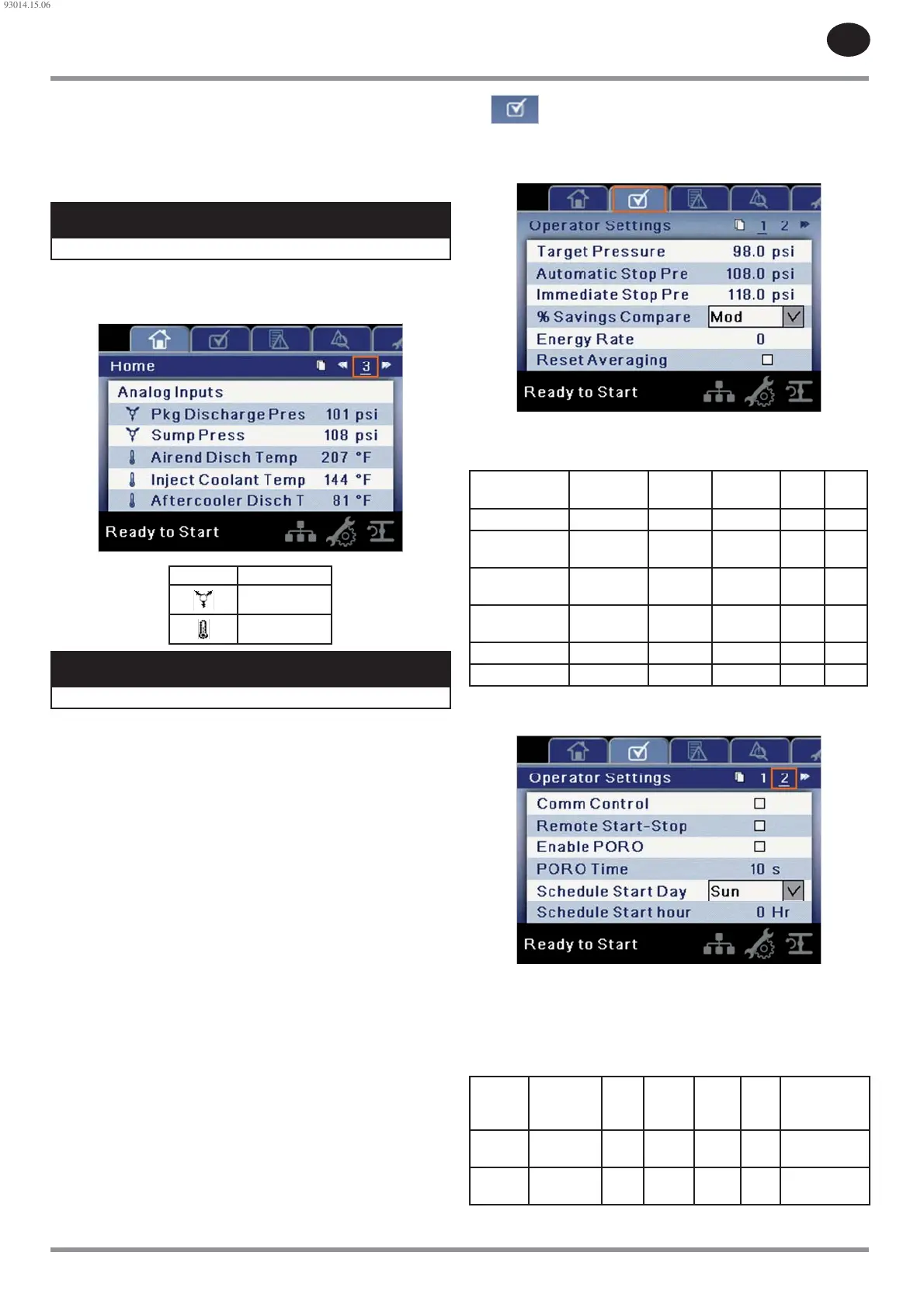

Figure 39 : Analog Inputs & Compressor Information
Icon Meaning
Pressure
Temperature
NOTICE
All information on these pages is read only.
The following analog inputs are displayed in this section:
Package Discharge Pressure
Sump Pressure
Airend Discharge Temperature
Injected Coolant Temperature
After-cooler Discharge Temperature
Separator Pressure Drop
Coolant Filter Pressure Drop
Inlet Vacuum
Remote Pressure (optional)
After-cooler Discharge Pressure (integrated dryer compressors only)
Additionally, the following compressor status readings are included in this
section:
Motor Speed
Package kW
Average Package kW/hour
Average % Capacity
Average Capacity
Energy Cost
Energy Savings
Lifetime Energy Savings
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Operator settings folder
Pages 1-2: Operator Settings
Figure 40 : Operator Settings
The parameters below are adjustable at any time:
Table 18 : Operator Settings
Operator
Settings
Default Min. Max. Step Unit
Target Pressure 100 65 145 1 psi
Automatic Stop
Pressure
110 Target+1 Target+10 1 psi
Immediate Stop
Pressure
120 Auto Auto+10 1 psi
% Savings
Compared To
Modulation --- --- --- ---
Energy Rate 0.000 0.000 9999.999 --- ---
Reset Averaging --/--/-- - - - Date
Pages 3-5: Operator Options
Figure 41 : Operator Options
The parameters immediately below are only adjustable when the compressor
is stopped.
The options set points are similar to the operator set points except these set
points cannot be changed while the compressor is running.
Table 19 : Operator Options
Option
Items
Selection Min. Max. Step Unit Installed
option
required?
Remote
Sensor
ON/OFF --- --- --- --- No
Comm
Control
ON/OFF --- --- --- --- No
