80447162 Rev B EN-49
EN

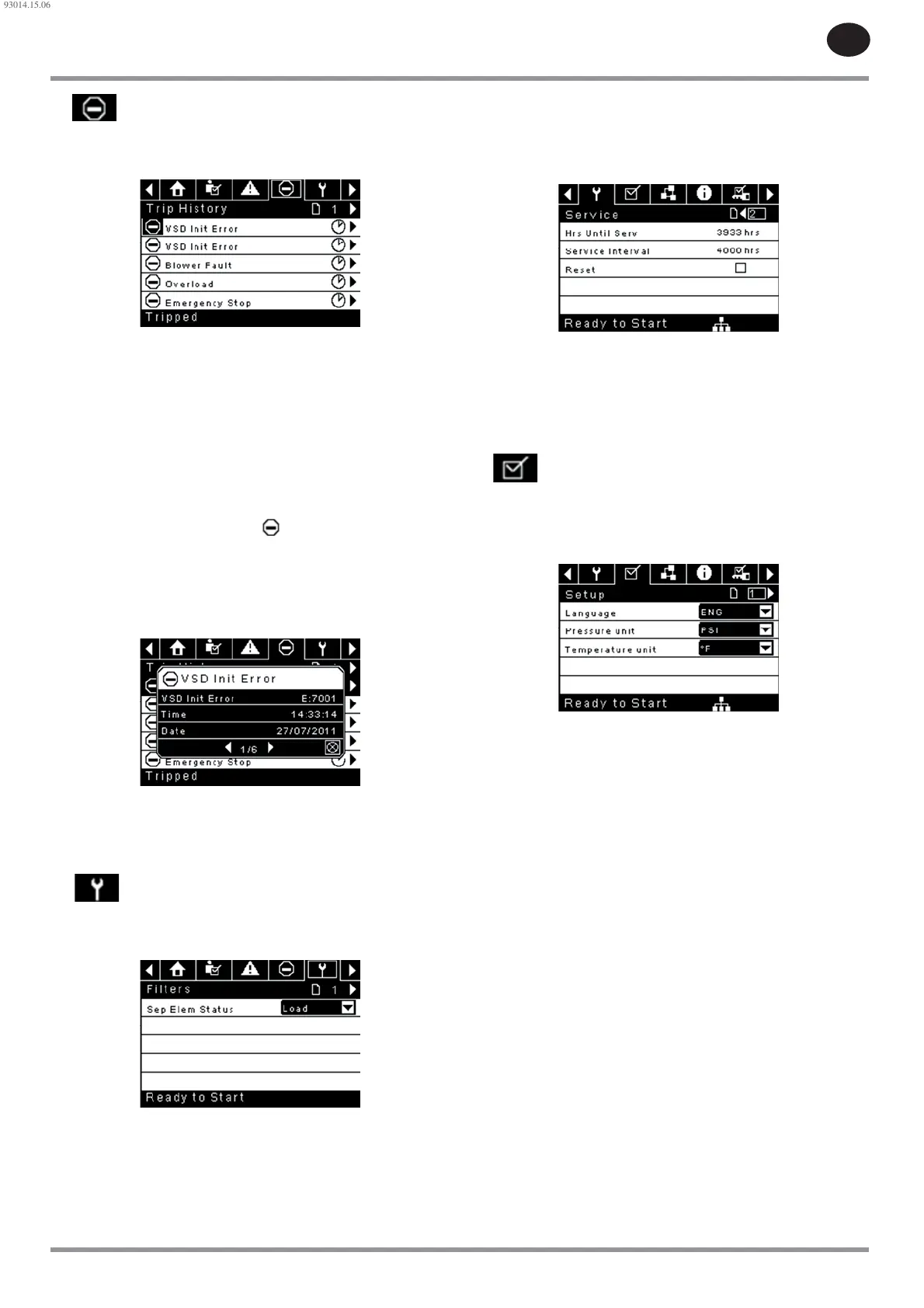

Trip History
Pages 1 to A Max of 3
Figure 105 : Trip History
The pages in the Trips History folder document up to the last 15 trips that the
controller has experienced, and time stamps each. The trips are recorded in
sequence, with number one being the newest and 15 being the oldest. When
a new trip occurs, it becomes number one and all others are shifted up in
number.
The page numbers in the Title Bar are used to scroll through the events, with
each page displaying up to seven. Page one displays events one through ve,
page two displays six through ten, and so on.
The following items will generate an entry in the trip history.
Trips
Active Trips will show a ashing trip icon
while acknowledged Trips will
have a solid icon.
The trip history also records compressor data at the time of the trip to assist
in diagnostics and troubleshooting. Navigating to the trip entry and hitting
the enter button will bring up the trip history dialog box.
Figure 106 : Trip History
While the dialog box is active, press the left and right keys in order to scroll
through the displayed data. The name of the trip will always be shown in
the title bar of the dialog box. Press enter when nished viewing the data to
return to the trip history screen.
Maintenance folder
Page 1 – Filter Status
Figure 107 : Filter Status
This page displays the status of the lters. The lter status will either be “OK”
or “Change” depending on the compressor’s diagnostic readings. If a lter
reaches the “change’ status, a warning will be issued and the service indicator
will light up to notify the user. Please note that the compressor must be in a
“Running Loaded” state to check these maintenance items. If the compressor
is not in a running state – the status will display “Load,” unless a maintenance
indicator has been issued when the machine was running and has not yet
been reset.
•
The following lters are displayed:
Separator Element
Page 2 - Maintenance Con guration
Figure 108 : Maintenance Con guration
This page allows the user to set the service interval and to reset the counter
after the service has been performed. The service interval may be set to any
value between 1000 and 8000 hours, but must be set in accordance with the
factory maintenance schedule. After maintenance has been performed, the
user can reset the counter by navigating to the Reset button and pressing
the enter key. Note that after changing the Service Interval a Reset must be
performed to set the Hours Until Service to the proper value.
General Settings folder
All parameters in the general settings folder are adjustable.
Page 1 – Language & Units Selection
Figure 109 : Language & Units Selection
Language is selectable from the following 30 selections:
English (default)• Korean•
Bulgarian• Latvian•
Chinese, simpli ed• Lithuanian•
Croatian• Maltese•
Czech• Norwegian•
Danish• Polish•
Dutch• Portuguese•
Estonian• Romanian•
Finish• Russian•
French• Slovak•
German• Slovenian•
Greek• Spanish•
Hungarian• Swedish•
Italian• Thai•
Indonesian•Turkish•
The controller will display all screens in the selected language and only one
language can be selected at a time.
Each language appears in its native translation.
Temperature is selectable between
o
F and
o
C.
Pressure is selectable between psi, kpa, bar, kg/cm
2
.
•
93014.15.06
