80447162 Rev B EN-31
EN

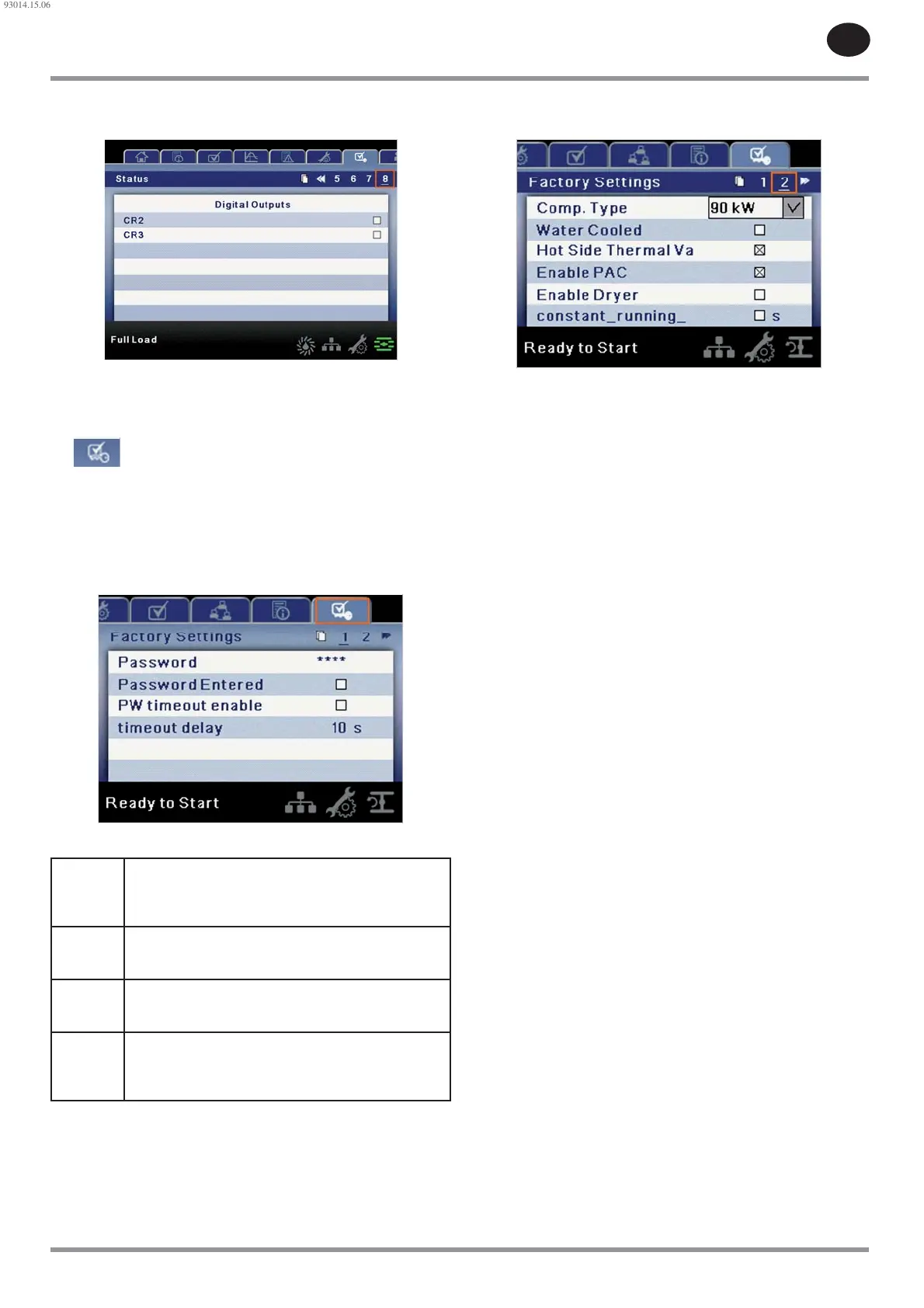

Page 11: Analog Outputs
Figure 59 : Analog Outputs
The value for the analog outputs will be in mA.
VSD Blower Output
Analog Output 2
Factory settings folder
This folder is for Ingersoll Rand factory and service personnel. A password
must be entered on page one in order to adjust values in this folder. This
folder is used for setting parameters that are speci c to that compressor and
displaying software information for the controller.
Page 1: Password
Figure 60 : Password
Table 25 : Password
Password: Provides access to enter a valid password to gain access to
password protected parameters. The password is entered
by scrolling down to the password value and pressing the
return key.
Password
Entered:
This checkbox will indicate a valid password has been
entered. If this checkbox is blank, a valid password has not
been entered or it has timed out. This is read only.
Password
Timeout
Enable:
Checking this box will enable the password time feature.
Timeout
Delay:
This timeout along with the password timeout enable allows
the user to set an adjustable amount of time to require
a valid password to be re-entered. Once this timeout is
reached re-entry of a valid password is required.
•
•
Pages 2-3: Factory Settings
Figure 61 : Factory Settings
These pages are used for setting parameters that are speci c to the
compressor. All of the factory settings that are adjustable are listed below.
All settings on these pages are password protected.
Compressor Type will be selected here. The choices are listed below:
37 kW/50 hp 1-S (46, 47) (38, 39)
45 kW/60 hp 1-S (47) (39)
55 kW/75 hp 1-S (48, 49) (40, 41)
75 kW/100 hp 1-S (49) (41)
90 kW 1-S (50, 51) (42, 43)
125 hp 1-S (50, 51) (42, 43)
110 kW 1-S (51) (43)
150 hp 1-S (51) (43)
132 kW 1-S (52, 53) (44, 45)
200 hp 1-S (53) (45)
160 kW 1-S (53) (45)
90 kW 2-S (50, 51) (42, 43)
125 hp 2-S (50, 51) (42, 43)
110 kW 2-S (51) (43)
150 hp 2-S (51) (43)
132 kW 2-S (52, 53) (44, 45)
200 hp 2-S (53) (45)
160 kW 2-S (53) (45)
Water Cooled (ON/OFF)
Hot Side Thermal Valve (ON/OFF)
Enable PAC (ON/OFF)
Enable Dryer (ON/OFF)
Constant Running Dryer (ON/OFF)
Running Hours (adjustable)
Loaded Hours (adjustable)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
93014.15.06
To Next Page
