Repair
Battery and Battery Tray
Removal and Installation

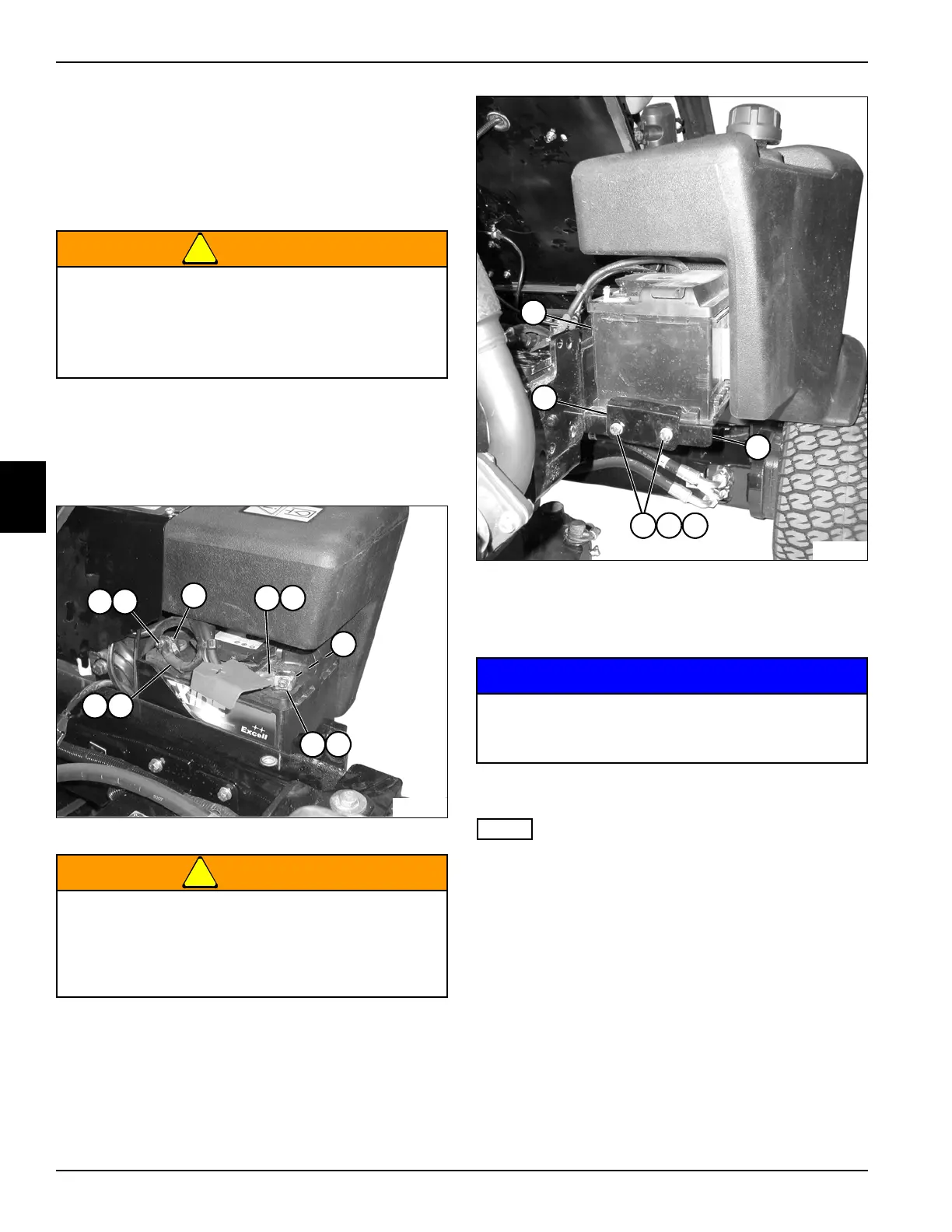

See Figures 4-48 through 4-50.
!
WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
2. Raise and support the seat platform.
3. Remove OPS. (See “OPS” on page 9-4.)
Figure 4-48
!
WARNING
4. Remove the nut (1), flat washer (2), and screw (3),
and disconnect the negative (–) battery cables
(9 and 10).
5. Remove the nut (7), flat washer (8), and screw (6),
and disconnect the positive (+) battery cables
(4 and 5).
Figure 4-49
6. Remove two screws (13), lock washers (14) and flat
washers (15) and retainer bracket (16) from the
battery tray (12).
NOTICE
7. Remove the battery (11).
NOTE
Perform steps 8 through 11 if the battery tray is to be
removed.
• Battery posts, terminals, and related
accessories contain lead and lead
compounds. Wash your hands after handling.
• Always wear eye protection when servicing
battery.
Always disconnect the negative terminal first and
positive terminal last. Connect positive terminal
first and negative terminal last. Use care when
testing live circuits to prevent arcing. Arcing
could result in death or serious injury.
TN1050
2
1
3
9
10
7
8
6
4
5
Never place used batteries in the garbage.
Dispose of used batteries in accordance with all
applicable regulations.
TN1051
16
14
15
13
11
12
