Starter Motor
Removal and Installation
See Figures 4-53 through 4-55.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
2. Raise hood.
3. Disconnect the battery negative (–) cables at the
battery.

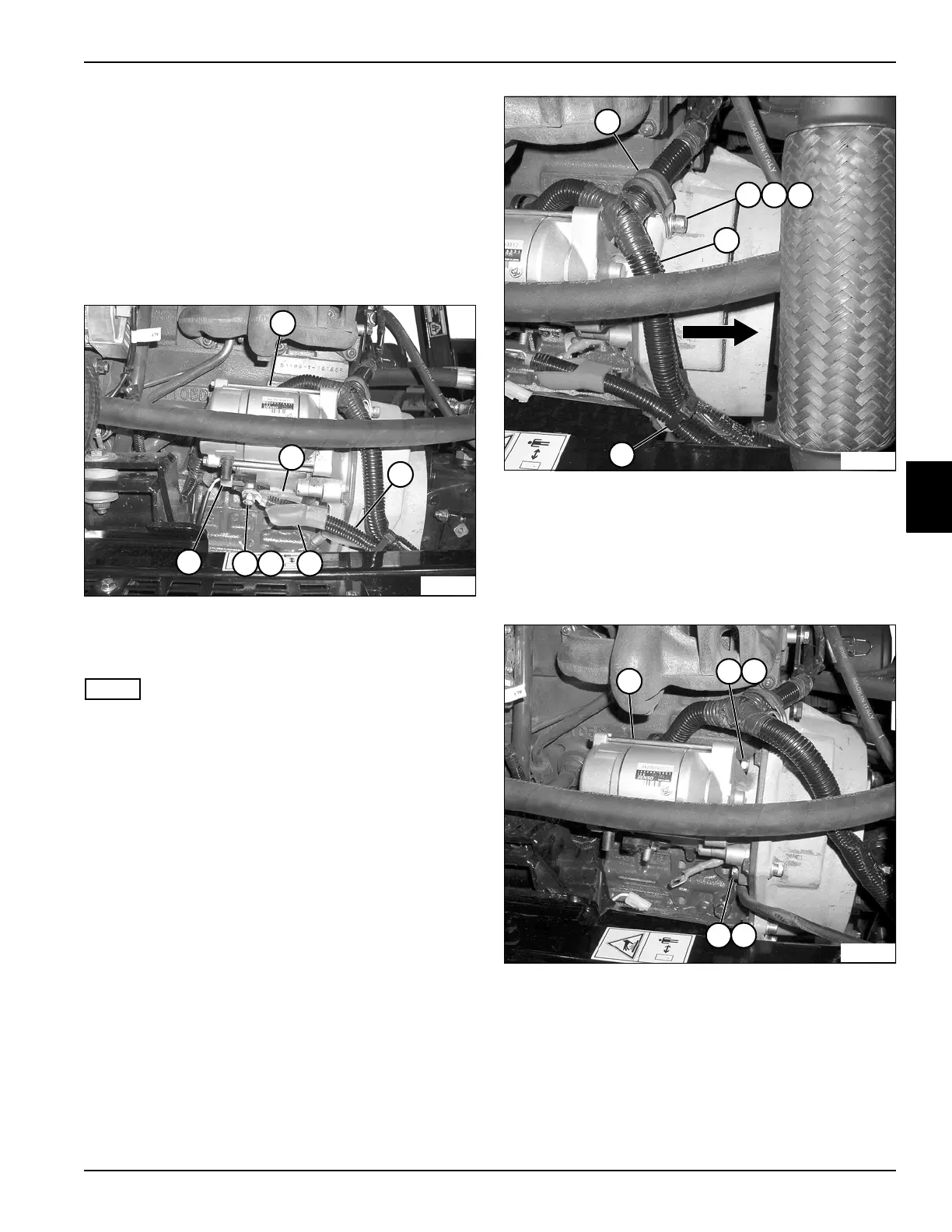

Figure 4-53
4. Remove boot (4) from the terminal, and slide it down
the wire (3).
NOTE
Label all wires before disconnecting to ensure correct
installation.
5. Remove nut (5) and lock washer (6), and disconnect
wires (2 and 3) from terminal.
6. Disconnect wiring connector (7) from the starter
motor (1).
Figure 4-54
7. Remove socket-head screw (9), lock washer (10),
and flat washer (11) from cushion clamp (8).
8. Remove cable tie (13).
9. Move the wiring harness (12) aside to allow access
to the rear mounting screw.
Figure 4-55
10. Support the starter motor (14).
11. Remove two screws (15) and lock washers (16), and
remove the starter motor (14).
Installation Note
Install the starter motor by reversing the order of removal.
