Jacobsen AR-3 User Manual

9-4 4181384 First Edition
ACCESSORIES AND MISCELLANEOUS REPAIR
9
Repair
Canopy
Removal and Installation

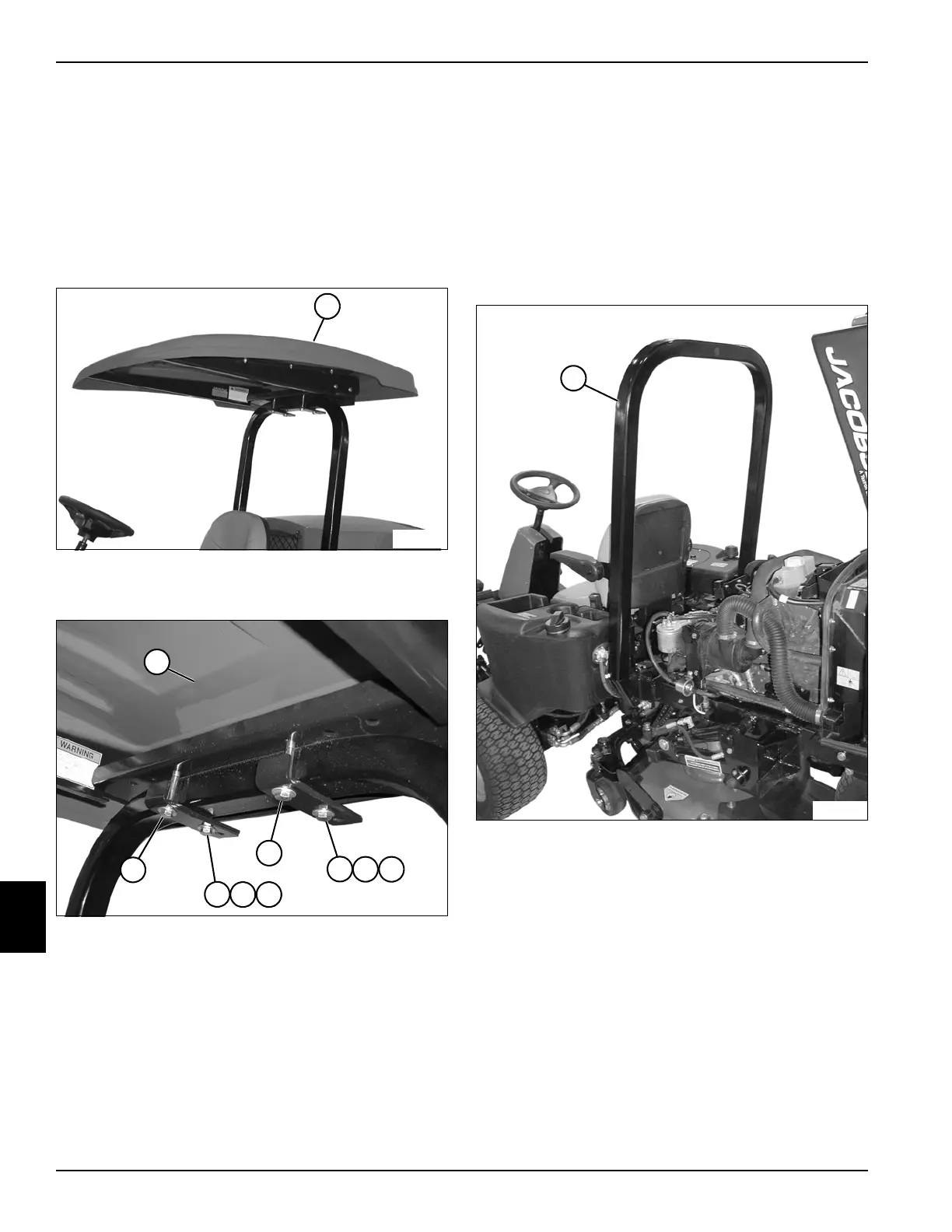

See Figures 9-2 and 9-3.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
Figure 9-2
2. Support the canopy (1) using a suitable lifting device.
Figure 9-3
3. Loosen the nuts on the two front screws (3).
4. Remove the two rear nuts (4), screws (5), and four
washers (6).
5. Remove the canopy (2).
Installation Notes
• Center the canopy before tightening the mounting
hardware.
• Install the canopy by reversing the order of removal.
OPS
Removal and Installation
See Figures 9-4 through 9-8.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
2. Raise and support the seat platform.
3. Remove the canopy (if equipped). (See “Canopy” on
page 9-4.)
Figure 9-4
4. Support the OPS (1) using a suitable lifting device.
1
TN1043
TN1044
3
3
2
~
4
5 6
4
5 6
1
TN1045
