Glow Plug Relay
Removal and Installation
See Figure 4-65.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
2. Disconnect the battery negative (–) cables at the
battery.
3. Raise the engine hood.

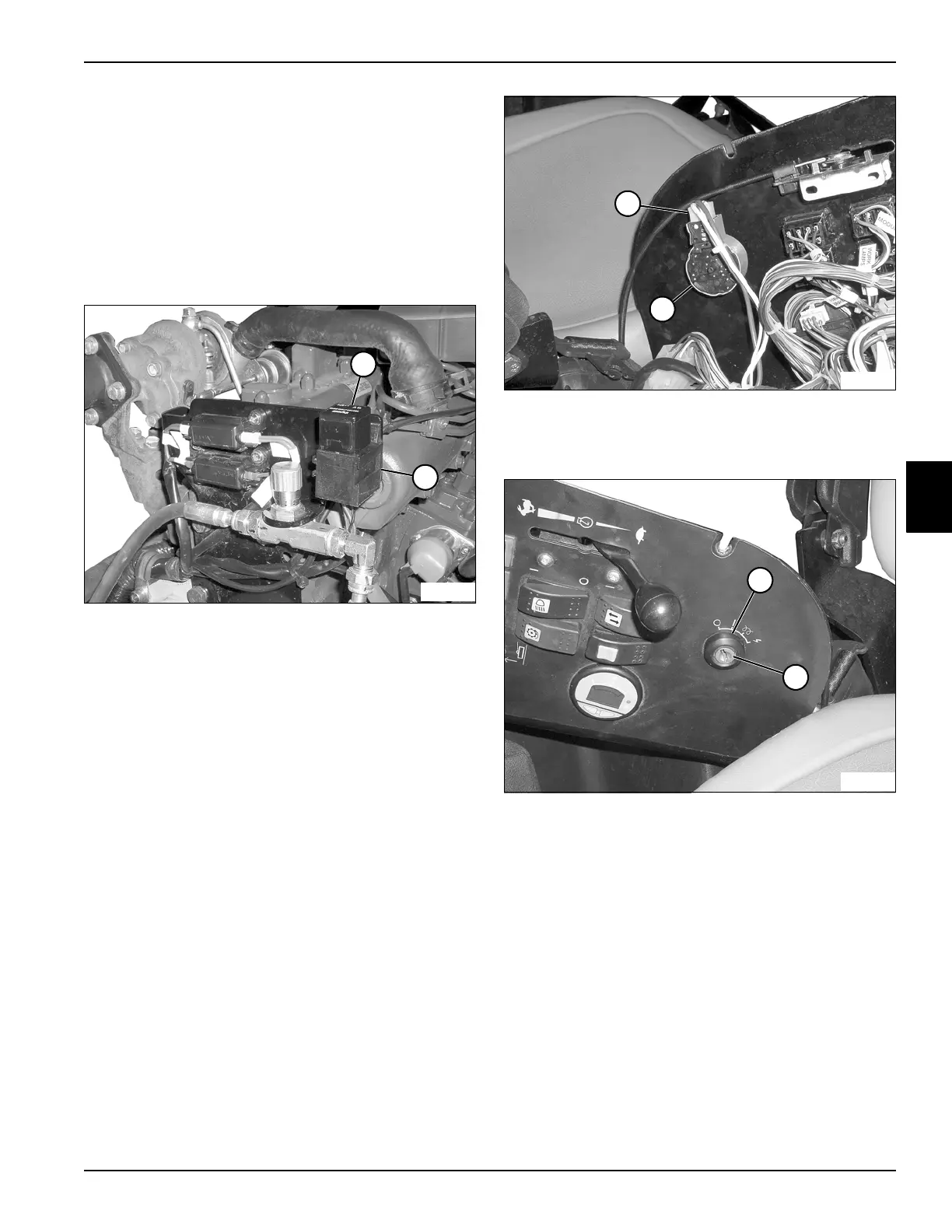

Figure 4-65
4. Pull the relay (1) straight up and out of the relay base
(2).
Installation Note
Install the glow plug relay by reversing the order of
removal.
Key Switch
Removal and Installation
See Figures 4-66 and 4-67.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-7.)
2. Disconnect the battery negative (–) cables at the
battery.
3. Remove instrument panel. (See “Instrument Panel”
on page 4-76.)
Figure 4-66
4. Disconnect the wiring connector (1) from the key
switch (2).
Figure 4-67
5. Remove (unscrew) the retainer ring (3), and remove
the key switch (4).
Installation Note
Install the key switch by reversing the order of removal.
1
TN1112
2
1
TN1095
2
3
TN1096
4
